Balluff

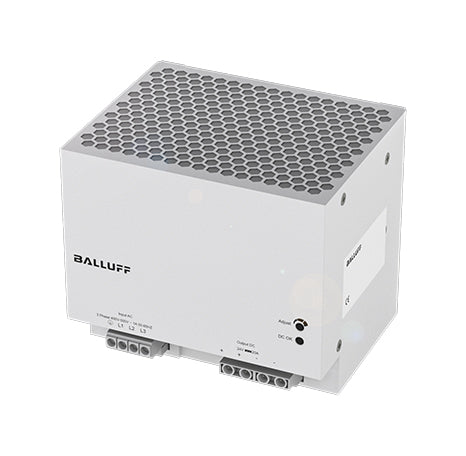

BALLUFF BAE0117 POWER SUPPLY

BALLUFF BAE0117 POWER SUPPLY

$385.00 CAD
$385.00 CAD
Sale Sold out

Features and Benefits

  • Single-phase or three-phase
  • 75…960 W, connected in parallel up to 2.8 kW
  • Regulatable output voltage
  • Alarm LED-output digital
  • Parallel and series operation for the flexible adaptation to the application (type-dependent)
  • Especially low residual ripple of the output voltage
  • Forward or hiccup mode in the event of a short circuit
  • Metal or metal/plastic housing
View full details

Description

Increase the performance level of your applications. Balluff short circuit-protected power supplies for the control cabinet act as top performers in automation. With a voltage of 24 V, including diagnostics outputs for incorporation into the machine diagnostics, they offer worldwide approval.

Data sheet

Specification

Dimension: 140 x 121 x 117.3 mm
Version: DIN rail
Mounting part: DIN rail mount
Housing material: Metal
Connection: Terminal, 0.25...4 mm²
Input voltage: 400…500 V AC 3-phase
Rated output voltage DC: 24 V
Rated output current: 20 A
IP rating: IP20
Approval/Conformity: CE, cURus, cULus, WEEE
Ambient temperature: -25...80 °C
