Balluff

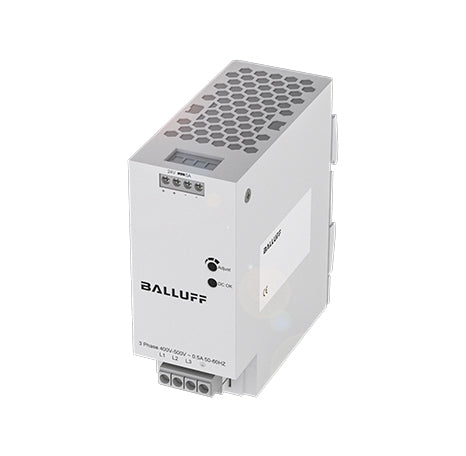

BALLUFF BAE0115 POWER SUPPLY

$190.00 CAD

Sale Out of Stock

Product variants

Features and Benefits

Single-phase or three-phase
75…960 W, connected in parallel up to 2.8 kW
Regulatable output voltage
Alarm LED-output digital
Parallel and series operation for the flexible adaptation to the application (type-dependent)
Especially low residual ripple of the output voltage
Forward or hiccup mode in the event of a short circuit
Metal or metal/plastic housing

View full details

Description

Increase the performance level of your applications. Balluff short circuit-protected power supplies for the control cabinet act as top performers in automation. With a voltage of 24 V, including diagnostics outputs for incorporation into the machine diagnostics, they offer worldwide approval.

Data sheet

Specification

Dimension: 50 x 121 x 117.3 mm
Version: DIN rail
Mounting part: DIN rail mount
Housing material: Metal
Connection: Terminal, 0.25 mm²...4 mm²;0.5 mm²...10 mm²
Input voltage: 400…500 V AC 3-phase
Rated output voltage DC: 24 V
Rated output current: 5 A
IP rating: IP20
Approval/Conformity: CE, cURus, cULus, WEEE
Ambient temperature: -25...80 °C
