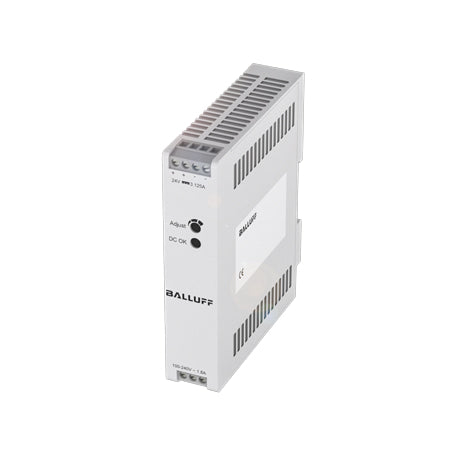

BALLUFF BAE0111 POWER SUPPLY

BALLUFF BAE0111 POWER SUPPLY

Regular price $99.50 CAD
Regular price Sale price $99.50 CAD
Sale Sold out

Features and Benefits

  • Single-phase or three-phase
  • 75…960 W, connected in parallel up to 2.8 kW
  • Regulatable output voltage
  • Alarm LED-output digital
  • Parallel and series operation for the flexible adaptation to the application (type-dependent)
  • Especially low residual ripple of the output voltage
  • Forward or hiccup mode in the event of a short circuit
  • Metal or metal/plastic housing
View full details

Description

Increase the performance level of your applications. Balluff short circuit-protected power supplies for the control cabinet act as top performers in automation. With a voltage of 24 V, including diagnostics outputs for incorporation into the machine diagnostics, they offer worldwide approval.

Specification

Dimension: 27 x 123.6 x 102 mm
Version: DIN rail
Mounting part: DIN rail mount
Housing material: Plastic
Connection: Terminal, 0.25...2.5 mm²
Input voltage: 100…240 V AC, 1-phase
Rated output voltage DC: 24 V
Rated output current: 3.12 A
IP rating: IP20
Approval/Conformity: CE, cURus, cULus, WEEE
Ambient temperature: -20...70 °C
