Balluff

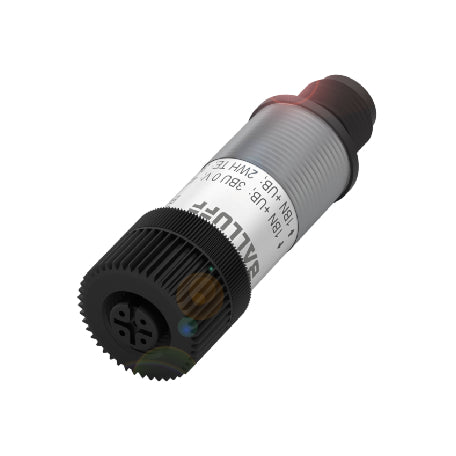

BALLUFF BAE002N SIGNAL CONVERTER

BALLUFF BAE002N SIGNAL CONVERTER

$104.10 CAD
$104.10 CAD
Sale Sold out

Features and Benefits

  • Signal converters for position encoders with Start-Stop-Interface
  • Signal converters for sensors
  • switching output can be combined with each other
  •  easy installation and adjustment capabilities
  • Signal converter to send analog output signals to IO-Link
View full details

Description

With our signal converters you can easily change output signals or counting and time functions. Signal converters for sensors with analog/switching output and signal amplifiers are available for this purpose. These can be mounted in the control cabinet or on site.

Data sheet

Specification

Function: Switching amplifier up to 400 mA
Timer on/off delay: Operating voltage Ub
Operating voltage Ub: 10...30 VDC
Digital inputs: NPN
Connection: Connector, M12x1
Connection for sensor: M12x1-Female, 4-pin
Housing material: PBT, PA
Dimension: Ø 20 x 60 mm
Ambient temperature: 0...60 °C
IP rating: IP67
Approval/Conformity: CE, WEEE
