Regular price $282.00 CAD
Regular price Sale price $282.00 CAD
Sale Sold out

Features and Benefits

  • 1 x USB 1.1/2.0 port and 1 x RS-232/422/485 Serial port
  • 5 VDC input power
  • Metal body
  • 0 to 55°C operating temperature
  • 2 kV isolation protection
View full details

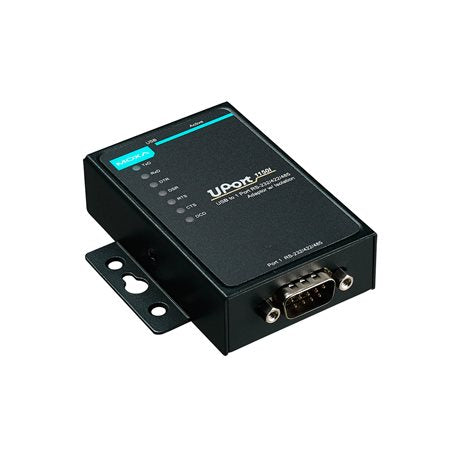

The UPort® 1000 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort® 1000 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.


Interface Type: USB 2.0
Connection Type: USB type B
Speed: 12Mbps
Total Number of Serial Ports: 1 RS-232/422/485 Port
Serial Connection Type: DB9-M with a mini DB9-F converter to the terminal
Serial Communication Parameters: Data Bits: 5, 6, 7, 8 and Stop Bits: 1, 1.5, 2 and Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
FIFO: 64 bytes
Data Transfer Speed (Baudrate): 0.05Kbps to 921.6Kbps
Protection Against Electrostatic Discharge: 15KV
Electrical Isolation: 2KV
Windows 98, Windows ME: Yes
Windows 2000: Yes
Windows XP x86, x64, Windows 2003 x86, x64: Yes
Windows Vista x86, x64: Yes
Windows 7 x86, x64: Yes
Windows 8.1 x86, x64, Windows 8 x86, x64: Yes
Windows 2012 x64: Yes
Windows 2008: Yes
WinCE 5.0, WinCE 6.0: Yes
Linux 2.4.x: Yes
Linux 2.6.x: Yes
Linux 3.0.x: Yes
Power Consumption (Output Adapter): 5V DC, 0.26A
Dimensions: 52x80x22mm
Safety: UL 60950-1
EMI: EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B
EMS: EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC-61000-4-6, IEC 61000-4-8, IEC-61000-4-11
Green Product Standard: RoHS, CRoHS, WEEE
Housing: Metal
Operating Temperature: 0 to 55°C
Storage Temperature: -20 to 70°C
Operation Humidity: 5% to %95 RH non-condensing
Weight: 0.075Kg
