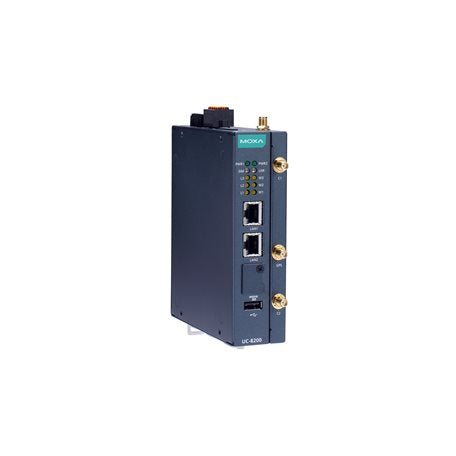

MOXA UC-8220-T-LX-US-S INDUSTRIAL EMBEDDED COMPUTER

MOXA UC-8220-T-LX-US-S INDUSTRIAL EMBEDDED COMPUTER

$1,261.00 CAD
$1,261.00 CAD
Sale Sold out

Features and Benefits

  • Armv7 Cortex-A7 dual-core 1 GHz
  • Moxa Industrial Linux with 10-year superior long-term support
  • 2 auto-sensing 10/100/1000 Mbps Ethernet ports
  • Integrated LTE Cat. 4 module with US/EU/APAC band support
  • Dual-SIM slots
  • 4 DI & 4 DO
  • 1 CAN port supports CAN 2.0A/B
  • microSD socket for storage expansion
  • Programmable LEDs and a programmable button for easy installation and maintenance
View full details

Description

The UC-8200 computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports, and one CAN port as well as dual Mini PCIe socket to support Wi-Fi/cellular modules. These versatile capabilities let users efficiently adapt the UC-8200 to a variety of complex communications solutions.

The UC-8200 is built around a Cortex-A7 dual core processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.

Wide temperature LTE-enabled models are available for extended temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.

Data sheet

Specification

DRAM: 2 GB DDR3L
Flash: -
OS (pre-installed): Moxa Industrial Linux (Debian 9, Kernel 4.4)
Console Port: 1 x 4-pin header to DB9 console port
LAN: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Standards: RS-232/422/485 ports x 2, software selectable (DB9 male)
ESD Protection: Contact: 4 kV; Air: 8 kV
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: -
Baudrate: -
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
INDUSTRIAL COMPUTER: LED INDICATORS
System: Power x 2, Programmable x 1, SIM card indicator x 1
LAN: -
Serial: -
Input Current: 1 A @ 12 VDC
Power Consumption: 12 W
Alert Tools: External RTC (real-time clock)
Automatic Reboot Trigger: External WDT (watchdog timer)
MTBF: 528,574 hrs
Storage Expansion: MicroSD (SD 3.0) socket x 1
CPU Support: Armv7 Cortex-A7 dual-core 1 GHz
Dimensions: 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in)
Housing: SECC Metal
Operating temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Relative humidity: 5 to 95% (non-condensing)
EMC: EN 55032/35, EN 61000-6-2/-6-4
Weight: 0.75kg
Anti-Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached)
Safety: UL 62368-1, EN 62368-1
Green Product: RoHS, CRoHS, WEEE
Mounting: DIN-rail mounting, Wall mounting (with optional kit)
