Moxa

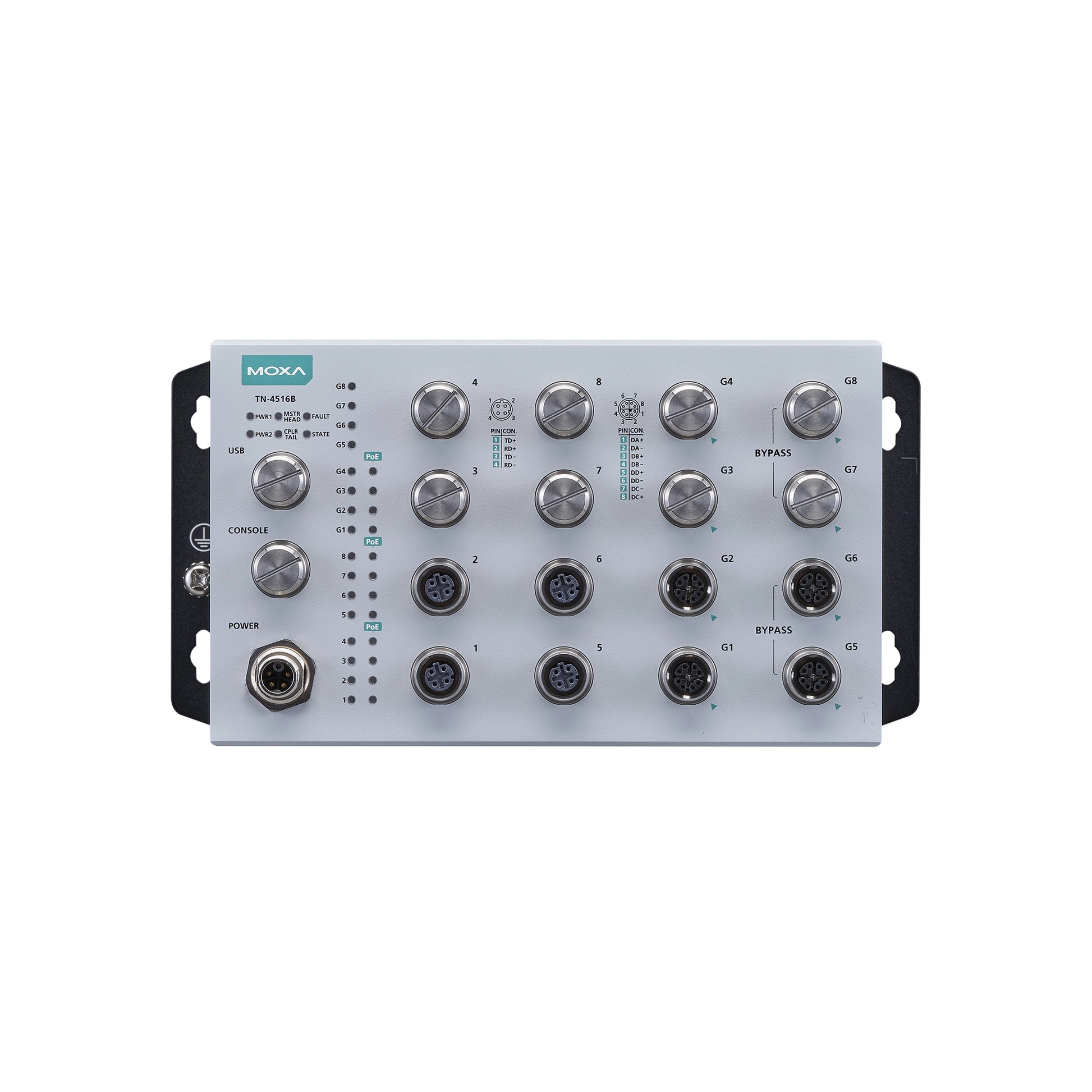

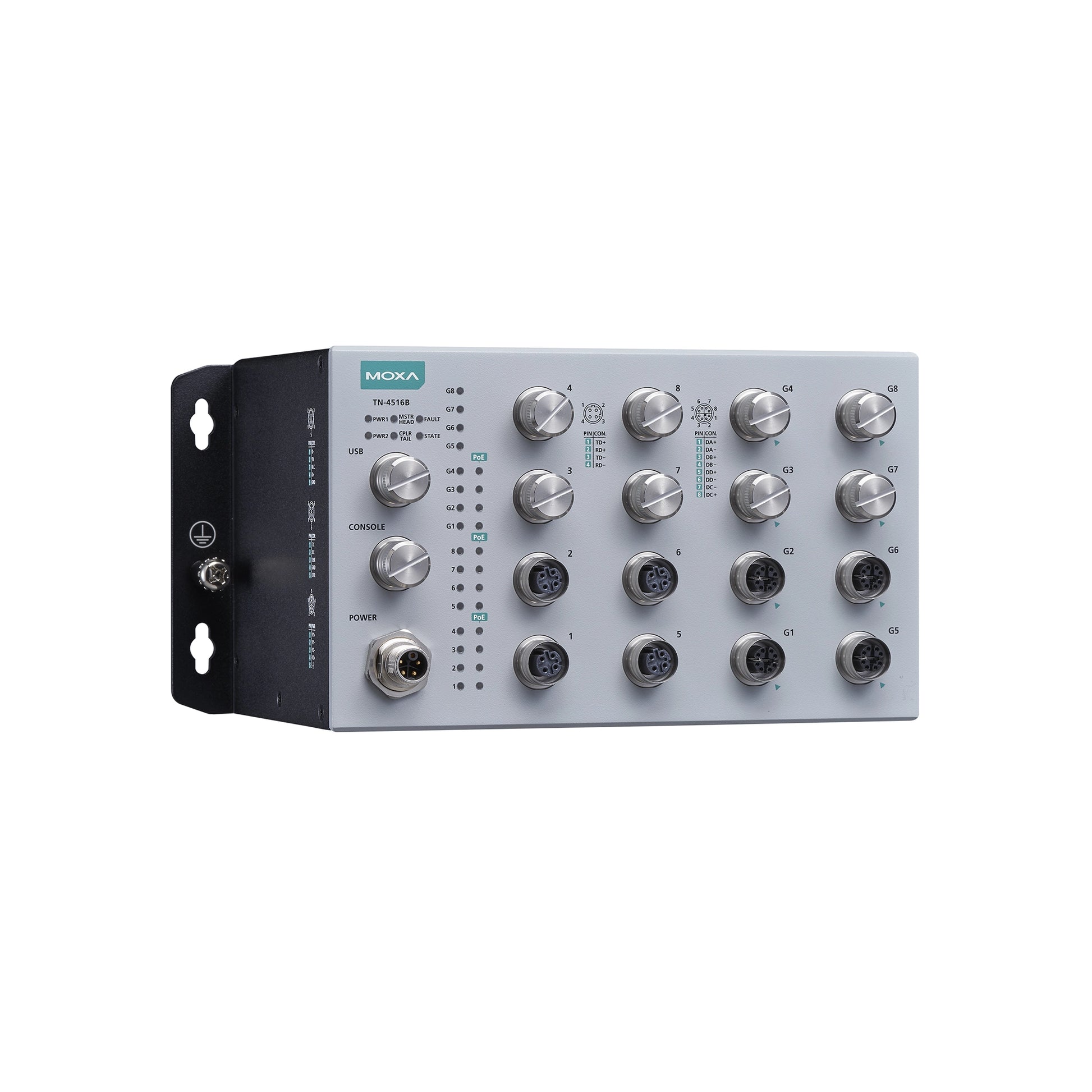

MOXA TN-4516B-8P-4G-4GP-CT-T Managed Ethernet Switch

MOXA TN-4516B-8P-4G-4GP-CT-T Managed Ethernet Switch

$6,810.00 CAD
$6,810.00 CAD
Sale Out of Stock

Features and Benefits

  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
  • Up to 28 Ethernet ports with M12 push-pull connectors
  • Up to 8 Gigabit ports with optional dual relay bypass functionality
  • Up to 24 PoE ports with a 150 W total PoE power budget
  • Isolated power with 24 to 110 VDC power supply range
  • -40 to 70°C system operating temperature range
  • Complies with all EN 50155 mandatory test items
  • Powered by MX-NOS Rail Version, a comprehensive management firmware tailored to the unique demands of onboard railway networks
View full details

Description

ntroduction
The ToughNet TN-4500B Series M12 managed Ethernet switches are designed for railway applications, including rolling stock installations. The switches use M12 circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4500B Series Ethernet switches provide 8 to 28 Ethernet ports with or without IEEE 802.3at/af compliant PoE functionality. The Gigabit models further feature up to 8 Gigabit Ethernet ports.

The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communication systems. Furthermore, the -40 to 70°C operating temperature range of the switches ensures they can be deployed in harsh environments. TN-4500B Series Ethernet switches are compliant with the mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Data sheet

Specification

Switch and Hub: Interface
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 8
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector): 4
PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector): 4

Switch and Hub: Standards and Protocols
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for PoE/PoE+ output, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication, IEEE 802.3x for flow control
Protocols and management standards: Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier, Static Multicast, IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server, DHCP Client, DHCP Relay Agent (Option 82), QoS/CoS/ToS, ARP, RARP, LLDP, Port Mirroring, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Loop Protection
MIB support: P-BRIDGE MIB, Q-BRIDGE MIB, Ethernet-like MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9
Redundancy protocols: STP, RSTP, MSTP, Turbo Ring v2, Link Aggregation, Ring Coupling, Static Port Trunk, LACP, MRP
Security features: Rate Limit, Trust access control, Port Lock, Sticky MAC, HTTPS/SSL, SSH, RADIUS, TACACS+, Access control list, Login and password policy, DHCP Snooping
Time management: SNTP Server/Client, NTP Server/Client

Switch and Hub: Switch Specifications
MAC Table Size: 16 K
IGMP Groups: 1024
Max. No. of VLANs: 256
VLAN ID Range: VID 1 to 4094
Priority Queues: 8

Switch and Hub: LED Indicators
LED Indicators: PWR1, PWR2, FAULT, STATE, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports

Switch and Hub: Serial Interface
Console Port: M12 B-coded 5-pin female connector (RS-232)

Switch and Hub: USB Interface
USB: M12 A-coded 5-pin female (for ABC-02 USB storage)

Switch and Hub: Power Requirements
Input Current: 9.3 A @ 24 VDC
Input Voltage: 24/36/48/72/96/110 VDC
Redundant dual inputs: 2
Operating Voltage: 16.8 to 137.5 VDC
Power Connector: M12 K-coded 5-pin male connector
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Power Consumption (Max.): Max. 51.9 W full loading without PDs’ consumption
Total PoE Power Budget: 150 W

Switch and Hub: Physical Characteristics
Housing: Metal
Dimensions: 230 x 115 x 133 mm (9.06 x 4.53 x 5.24 in)
IP Rating: IP42
Weight: 2,310 g (5.10 lb)
Installation: Wall mounting
Protection: PCB conformal coating

Switch and Hub: Environmental Limits
Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 3000 m

Switch and Hub: Standards and Certifications
EMC: EN 55032/35
EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
Radio Frequency: FCC
Railway: IEC 60068-2-1, EN 50155; IEC 60068-2-2, EN 50155; IEC 60068-2-30, EN 50155; IEC 60068-2-78; EN 50121-4; EN 50155; IEC 60571
Railway Fire Protection: EN 45545-2
Safety: UL 62368-1, IEC 62368-1, EN 62368-1
BSMI: Salt Spray Test, EN 50155
Shock: IEC 60068-2-27, IEC 61373, EN 50155
Vibration: IEC 60068-2-64, IEC 61373, EN 50155
Package Vibration Test: ISTA 1A
Package Drop Test: ISTA 1A

Switch and Hub: Declaration
Green Product: RoHS, CRoHS, WEEE

Switch and Hub: MTBF
Time: 881,578 hrs
Standards: Telcordia SR332 Issue 4

Switch and Hub: Warranty
Warranty Period: 5 years
