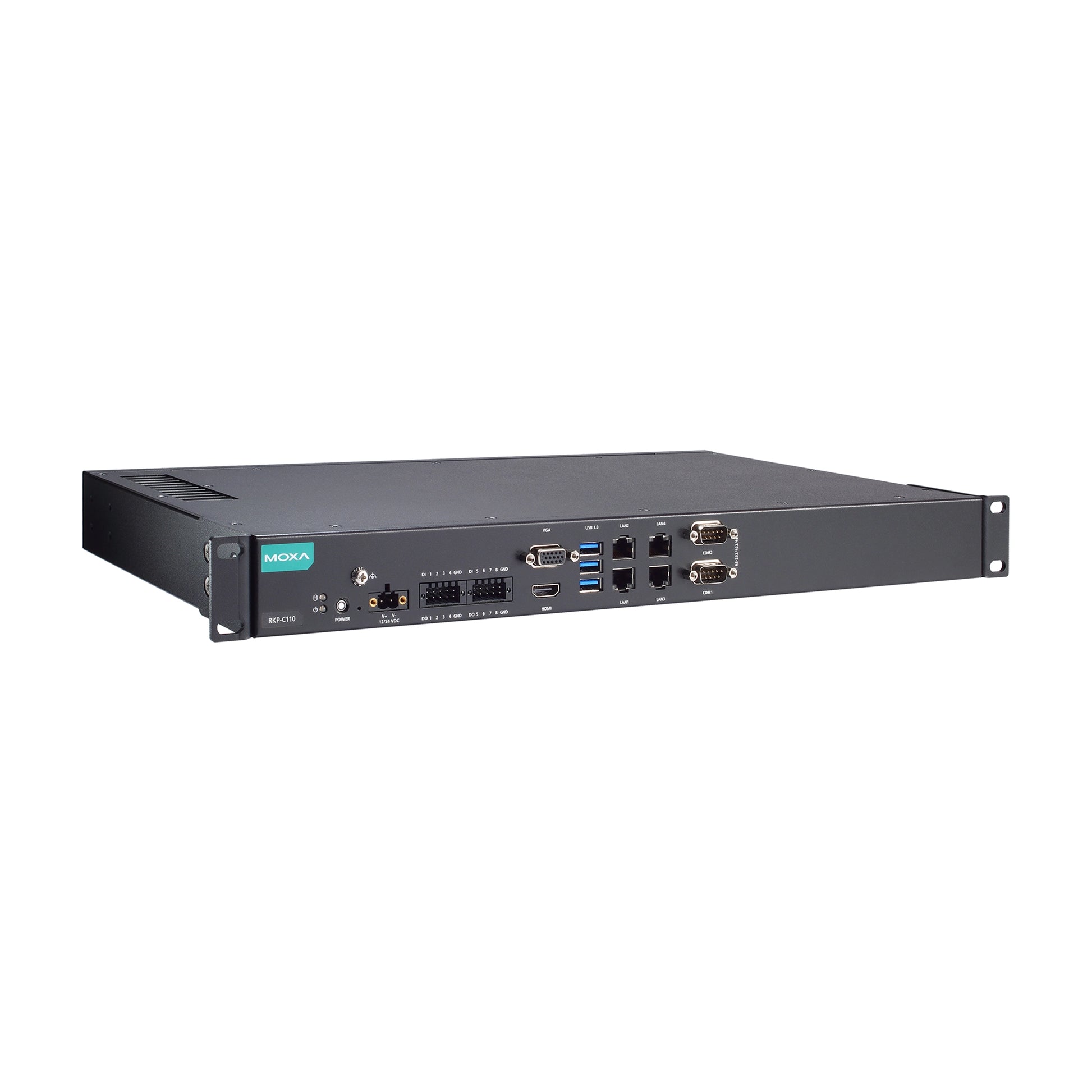

MOXA RKP-C110-C5-T-Win10 Industrial Computer

MOXA RKP-C110-C5-T-Win10 Industrial Computer

Regular price $3,868.00 CAD
Regular price Sale price $3,868.00 CAD
Sale Out of Stock

Features and Benefits

  • 1U rackmount computer with fanless design
  • 11th Gen Intel® Celeron®, or Intel® Core™ i5 or i7 processor
  • Rich interface options for up to 12 LAN ports and up to 10 serial ports
  • Standard form factor that fits most field applications
  • Unified front-panel connectivity design for easy access of interfaces
  • -30 to 60°C operating temperature range
View full details

Description

Introduction
Industries such as Factory Automation require high-quality performance and durability, characteristics which you can easily find in the Moxa RKP-C110-C1-2L4C-T industrial computer. It was first introduced as part of x86 Computers, but now, this rackmount 1U computer has won its rightful place with its fanless design and long-lasting operation. It can be easily integrated into diverse field applications due to its standard form factor and access to all interfaces via the unified front-panel connectivity design. The Moxa RKP-C110-C1-2L4C-T is powered by industrial PC operating systems, which ensures flexibility and convenience. Additionally, it supports an input voltage of 12/24 VDC. Undoubtedly, the RKP-C110-C1-2L4C-T has set a new standard in industrial computing with its exceptional reliability and user-friendly features.

Rackmount Computer with a Intel® Celeron® 6305E processor CPU
The Moxa RKP-C110-C1-2L4C-T computer delivers high-performance computing with its Intel® Celeron® 6305E processor CPU, tailored to meet the demands of industrial automation. This Moxa RKP-C110-C1-2L4C-T industrial PC provides extensive connectivity, including 6 LAN ports, 6 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, and video output via 1 VGA port and 1 HDMI port. With 2 SSD slots, this RKP C110 C1 v2L4C T model offers ample and secure storage options, which makes this computer an essential part of industrial computing solutions. Designed for efficiency and dependability, this industrial PC stands out as a robust and versatile computing platform for automation and control systems.

Compact and Resilient Design with a Wide Operating Temperature
The Moxa RKP-C110 series exemplifies durability and space efficiency with its compact size of 440 x 230 x 43.6 mm (17.32 x 9.06 x 1.72 in) and robust metal housing. Built for rack mounting (standard 1U), this industrial rackmount computer operates effectively in extreme conditions, with a wide operating temperature range from -30 to 60°C (-22 to 140°F). Designed to handle rugged environments, the Moxa RKP C110 C1 v2L4C T supports storage temperatures as low as -40°C (-40°F) and ambient relative humidity levels from 5% to 95% (non-condensing). The Moxa RKP-C110-C1-2L4C-T datasheet highlights its compatibility as an x86 fanless PC, offering reliability for a broad range of industrial applications. The RKP C110 C1 v2L4C T PC is a testament to Moxa's commitment to delivering superior industrial computing solutions.

Specification

Industrial Computer
CPU: Intel® Core™ Processor i5-1145G7E
DRAM: 8 GB DDR4
OS (pre-installed): Win 10, LTSC (64 GB SSD)

Interface
Console Port: -
LAN: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Magnetic Isolation Protection: 1.5 kV (built-in)
Digital Input/Output Channels: DIs x 8
Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
Serial Standards: RS-232/422/485
USB: USB 3.0 hosts x 3, type-A connectors

Digital Output
Output Channels: DOs x 8
Output Voltage: 0 to 24 VDC

Serial Communication Parameters
Baudrate: 50 bps to 115.2 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: Even, Odd, Space, Mark, None
Flow Control: RTS/CTS, XON/XOFF

Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

LED Indicators
System: Power x 1, Storage x 1
LAN: 2 per port (10/100/1000 Mbps)
Serial: -

Power Requirements
Input Voltage: 12/24 VDC
Input Current: -
Power Consumption: 90 W

General
Alert Tools: -
Automatic Reboot Trigger: Built-in WDT
Storage Expansion: 2.5-inch SSD slots x 2 (SATAIII interface), RAID 0/1 support

Physical Characteristics
Dimensions: 440 x 230 x 43.6 mm (17.32 x 9.06 x 1.72 in)
Housing: Metal
Operating Temperature: -30 to 60°C (-22 to 140°F)
Storage Temperature: -40 to 75°C (-40 to 167°F)
Relative Humidity: 5 to 95% (non-condensing)
Weight: 3,350 g (7.38 lb)

Standards and Certifications
EMC: EN 55032/35
Anti-Vibration: IEC 60068-2-64
Safety: UL 62368-1 (CB) BSMI
Green Product: RoHS, CRoHS, WEEE
Anti-Shock: IEC 60068-2-27
EMI: CISPR 32, FCC Part 15B Class A, BSMI
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

Mounting
Rack mounting (standard 1U)
