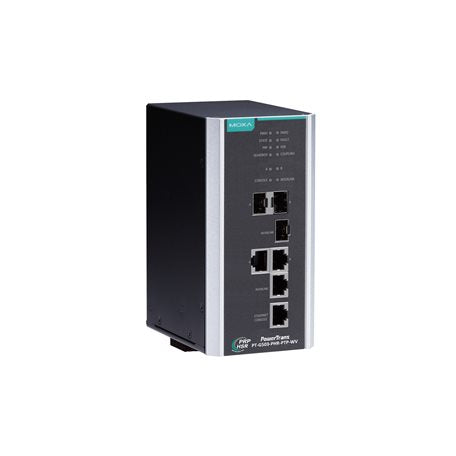

MOXA PT-G503-PHR-PTP-HV MANAGED REDUNDANCY SWITCH

MOXA PT-G503-PHR-PTP-HV MANAGED REDUNDANCY SWITCH

Regular price $3,327.00 CAD
Regular price Sale price $3,327.00 CAD
Sale Sold out
We have 1 in stock

Features and Benefits

  • 3 x Combo 10/100/1000Mbps T(X) or 100/1000 SFP Ports
  • DIN-rail
  • Aluminum body
  • -40 to 85°C operating temperature
View full details

Description

The PT-G503-PHR-PTP Series redundancy boxes (RedBoxes) are compliant with the latest standardized redundancy protocols for industrial automation networks, IEC 62439-3 Clause 4 (Parallel Redundancy Protocol, PRP) and IEC 62439-3 Clause 5 (High-availability Seamless Redundancy, HSR). PRP/HSR ensures the highest system availability and data integrity for mission-critical applications in electrical substation and/or process automation systems that require zero recovery time redundancy. The redundant protocols Coupling and QuadBox are also supported. With Coupling and QuadBox, HSR rings can be connected to make the redundant network more versatile. The PT-G503-PHR-PTP Series comes with three 10/100/1000BaseT(X) and 100/1000BaseSFP slot combo ports.

One slot (INTERLINK port) is for an internal link for connecting with a SAN (Singly Attached Node). The other two ports (LAN A and LAN B ports) are for PRP/HSR redundant protocol communications. With this full Gigabit Ethernet port design, the PT-G503-PHR-PTP Series provides high performance for PRP/HSR systems.

The PT-G503-PHR-PTP Series also provides IEEE 1588v2 PTP in end-to-end one-step transparent clock mode for timing-critical applications and isolated redundant power inputs with 24/48 VDC or 110/220 VDC/VAC power supply ranges to increase the reliability of the power supply.

Specification

Number of Ports: 3 Ports
Other Ports: 3 x Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP
Backup: Yes (ABC-02 automatic backup configurator)
LED Per Port: Yes
Power Consumption (Output Adapter): 0.260/0.170 A @ 110/220 VAC, 0.150/0.080 A @ 110/220 VDC
Fan / Fanless: Fanless
MTBF: 566,844 hrs
Network Working Layers: Layer 2
Switch Type: Managed
Dimensions: 80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in)
Housing: Aluminum
Installation: DIN-rail mounting
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: Safety, EMI, EMS, IEC 61850-3, IEEE 1613, EN 50121-4
Storage Temperature: -40 to 85°C (-40 to 185°F)
Protocols and Work Standards: IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Protocols and Management Standards: Back Pressure Flow Control, BOOTP, DHCP Client, Fiber check, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet
Hardware Installation Guide: Yes
