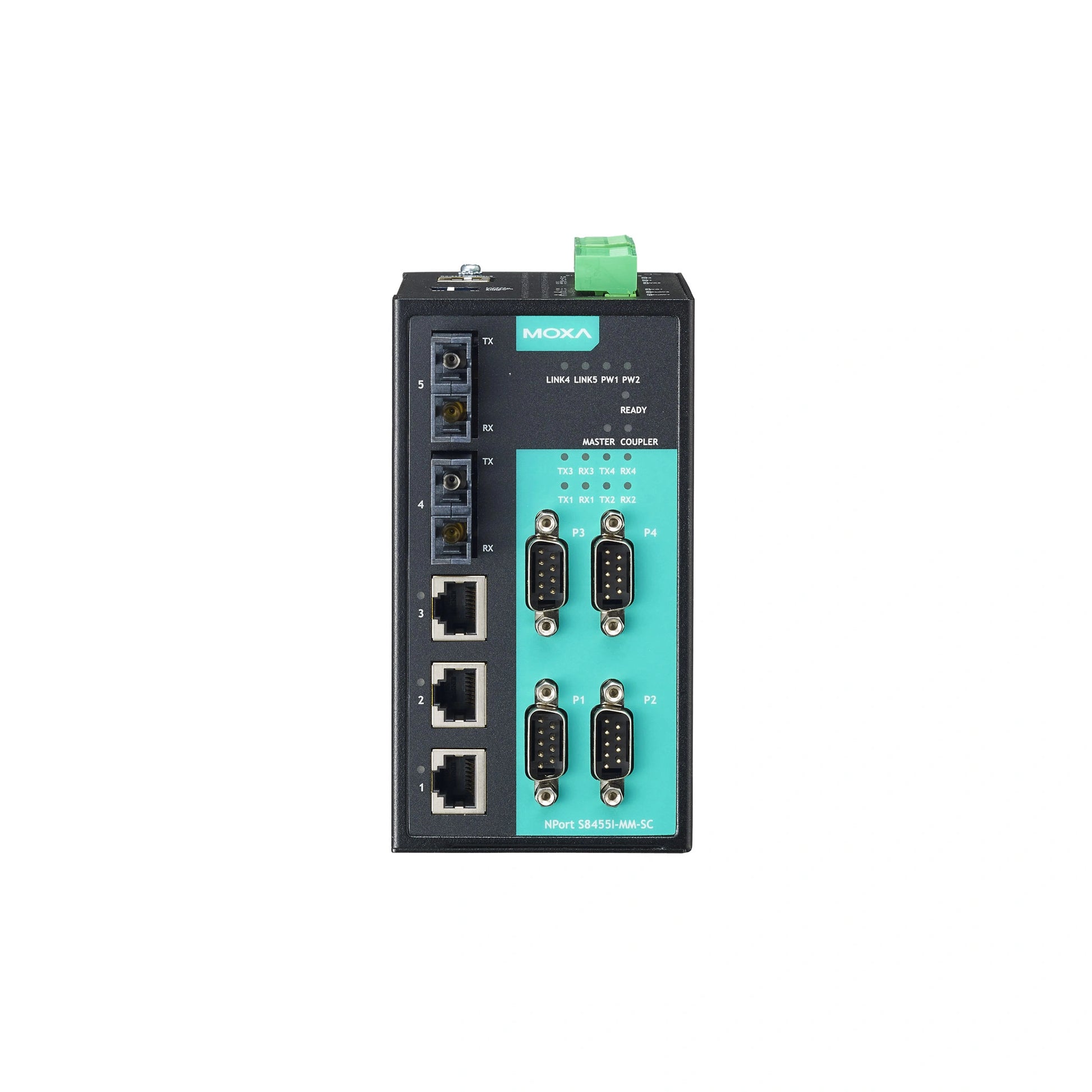

MOXA NPort S8455I-SS-SC-T Serial to Ethernet Device Server

MOXA NPort S8455I-SS-SC-T Serial to Ethernet Device Server
$4,973.00 CAD
$4,973.00 CAD
Special Offer Out of Stock

Features and Benefits

  • 3 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x 100BaseFX Ports (single-mode SC connector)
  • 40 KM Typical data transmission distance on fiber
  • 4 x RS-232/422/485 Serial Ports (DB9 male connector)
  • 2 kV Isolation protection for serial ports
  • 12 to 48 VDC dual power inputs
  • DIN-rail and Wall mounting
  • Metal body design
  • -40 to 75°C operating temperature range
View full details

Description

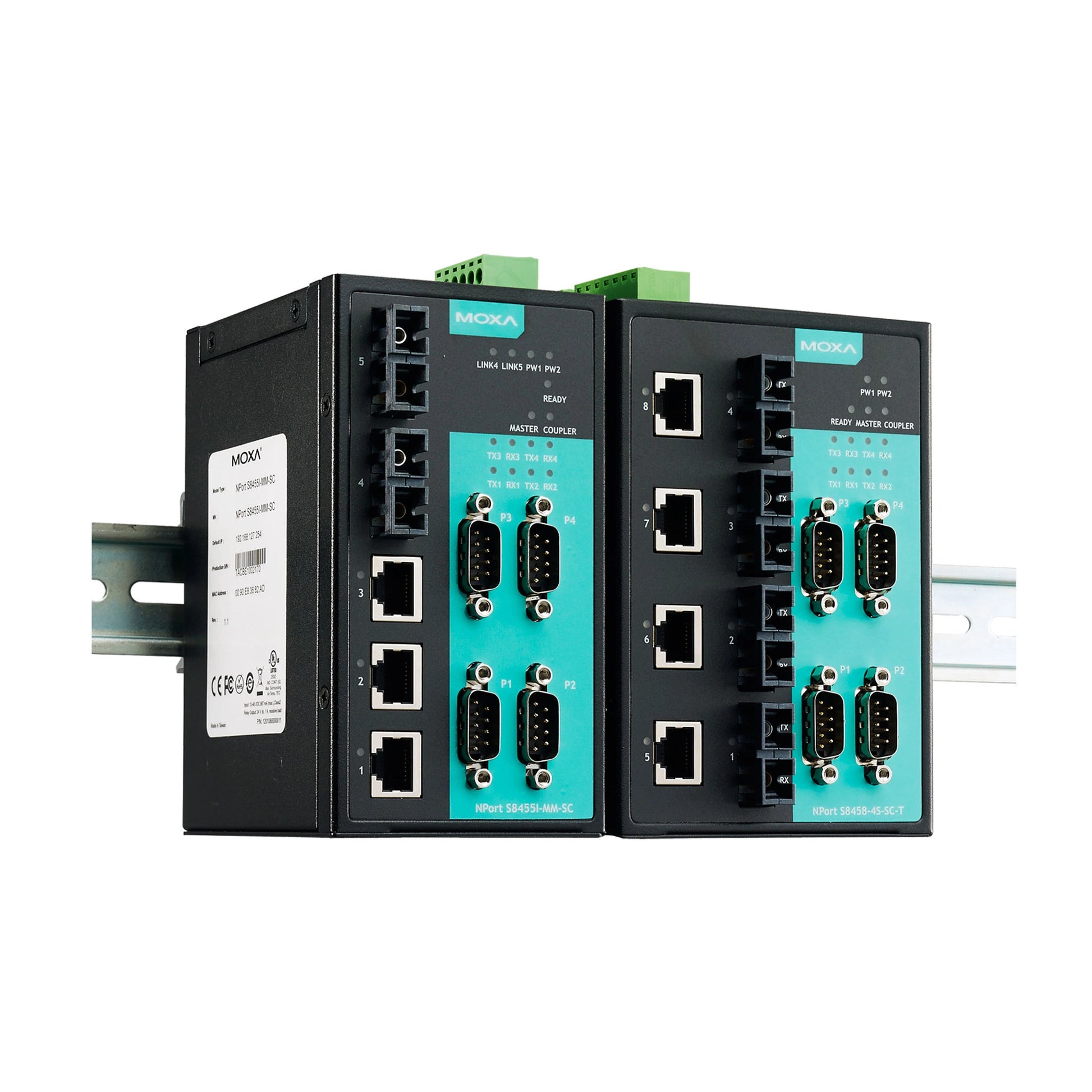

The NPort S8000 Series combines an industrial device server with a full-function managed Ethernet switch with 4 RS-232/422/485 serial ports, allowing you to easily install, manage, and maintain the product. Combining a device server and switch in one product allows you to save space in your cabinet, reduce overall power consumption, and reduce costs since you will not need to purchase a switch and serial device server separately.

The NPort S8000 Series supports the complete array of NPort 5000 device server functions. You can network your existing serial devices by connecting up to 4 serial devices through Ethernet ports, with only a basic configuration required. In addition, data transmission between the serial and Ethernet interfaces is bidirectional.

The NPort S8000 Series has a built-in full-function managed Ethernet switch that supports QoS, IGMP-snooping/GMRP, VLAN, Port Trunking, SNMPv1/v2c/v3, and IEEE 802.1X, allowing you to handle virtually any kind of application. Ethernet redundancy, which is used to increase the reliability and availability of your industrial Ethernet network, is provided by Moxa’s Turbo Ring and Turbo Chain technology (recovery time < 20 ms) or RSTP/STP (IEEE 802.1w/D).

You can also find the NPort S8455I-SS-SC-T, NPort S8455I-MM-SC-T, and NPort S8455I-MM-SC models in the NPort S8000 Series.

Data sheet

Specification

Serial-to-Ethernet : Interface
10/100Mb RJ45 (Megabit) Ports : 3 Ports
100BaseFX Ports : 2 Ports (single-mode SC connector)
Digital Input Channels : 2 x Channels (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA)
Digital Output Channels : No
Alarm Contact Channels : 2 x Channels (Resistive load: 1 A @ 24 VDC)
Magnetic Isolation Protection : 1.5 kV (built-in)
Protocols : RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2

Serial-to-Ethernet : Serial Interface
Number of Ports : 4 Ports
Serial Standards : RS-232/422/485
Connector : DB9 male
Console Port : RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)

Serial-to-Ethernet : Serial Communication Parameters
Baudrate : 50 bps to 921.6 Kbps
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 1.5, 2
Parity : Even, Odd, Space, Mark, None
Flow Control : RTS/CTS and XON/XOFF
Isolation : 2 KV

Serial-to-Ethernet : Serial Signals
RS-232 : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 : Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w : Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w : Data+, Data-, GND

Serial-to-Ethernet : Communication details
Wireless Standards : No
Maximum data transfer speed : No
Maximum direct range : No

Serial-to-Ethernet : General
Management : BOOTP, Device Search Utility (DSU), DHCP Client, DHCP Option 82, HTTP, IPv4, LLDP, Port Mirror, RMON, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, Web Console
Compatible operating systems : Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers : SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
Linux Real TTY Drivers : Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
MTBF : 286,993 hrs
Automatic Reboot Trigger : Built-in WDT (watchdog timer)

Serial-to-Ethernet : Power Requirements
Connection : 2 removable 6-contact terminal block(s)
Input Voltage : 12 to 48 VDC
Input Current : 935 mA @ 12 VDC

Serial-to-Ethernet : Security
Security : HTTPS, SSL, SSH
Encryption : -
Authentication : Local Account Accessibility, RADIUS

Serial-to-Ethernet : Features and capabilities
Display : No

Serial-to-Ethernet : Physical Characteristics
Dimensions : 73.1 x 134 x 125 mm (2.88 x 5.27 x 4.92 in)
Installation : DIN-rail mounting, Wall mounting (with optional kit)
Standards and Certifications : EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.25 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-3; Hazardous Locations: Class I Division 2; Safety: EN 60950-1, IEC 60950-1, UL 508, UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Telcordia (Bellcore) Standard TR/SR
Housing : Metal
Operating Temperature : -40 to 75°C (-40 to 167°F)
Storage Temperature : -40 to 75°C (-40 to 167°F)
Operation Humidity : 5 to 95% (non-condensing)
Weight : 578 g (1.27 lb)
