Moxa

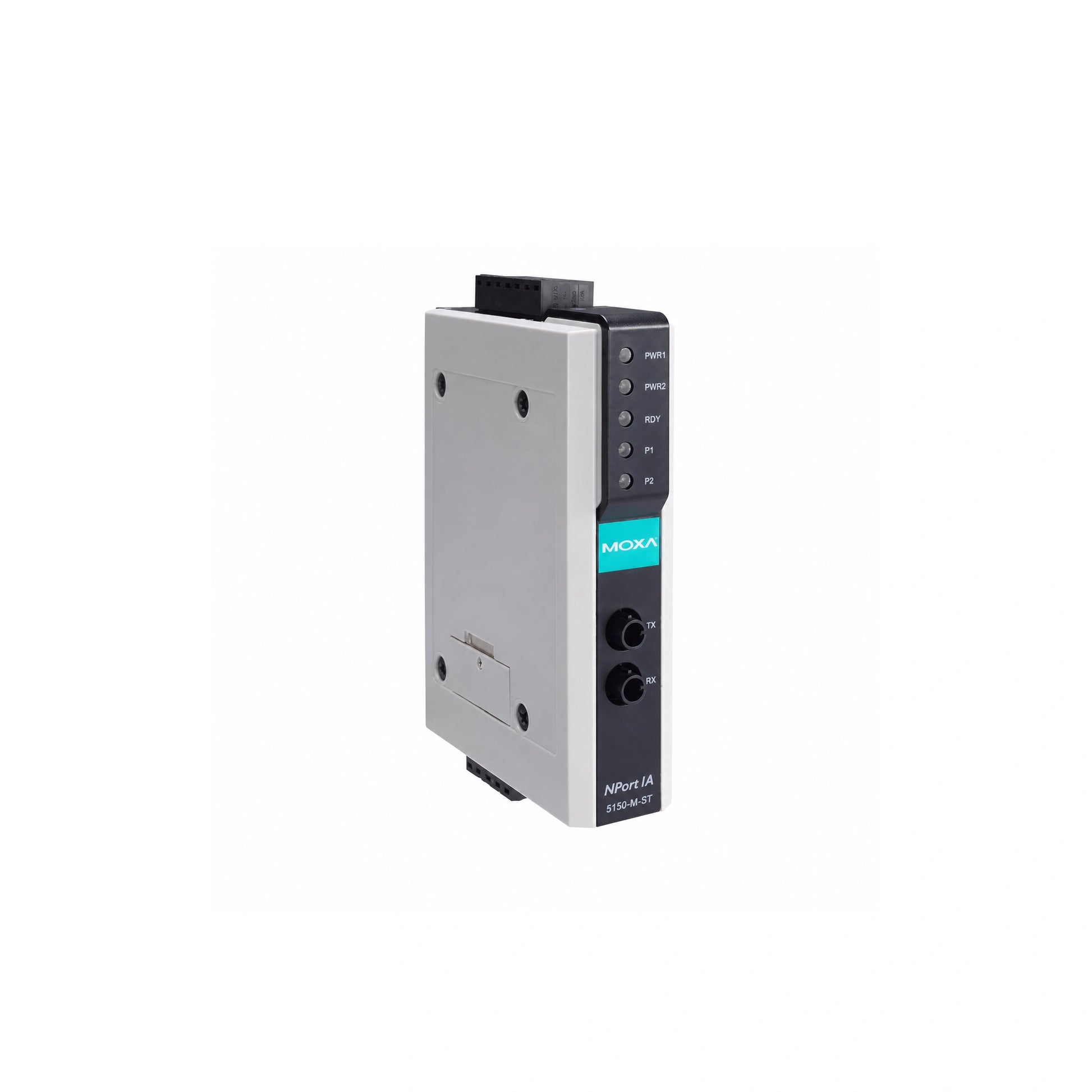

MOXA NPort IA-5150-M-ST Serial to Ethernet Device Server

MOXA NPort IA-5150-M-ST Serial to Ethernet Device Server
$828.00 CAD
$828.00 CAD
Special Offer Out of Stock

Features and Benefits

  • 2 x 100BaseFX Ports (multi-mode ST connector)
  • 1 x RS-232/422/485 Serial port (DB9-M and TB connectors)
  • 5 KM Typical data transmission distance on fiber
  • 12 to 48 VDC Redundant dual power inputs
  • IP30-rated Plastic body design
  • DIN-rail mounting installation
  • 0 to 55°C operating temperature
View full details

Description

NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.

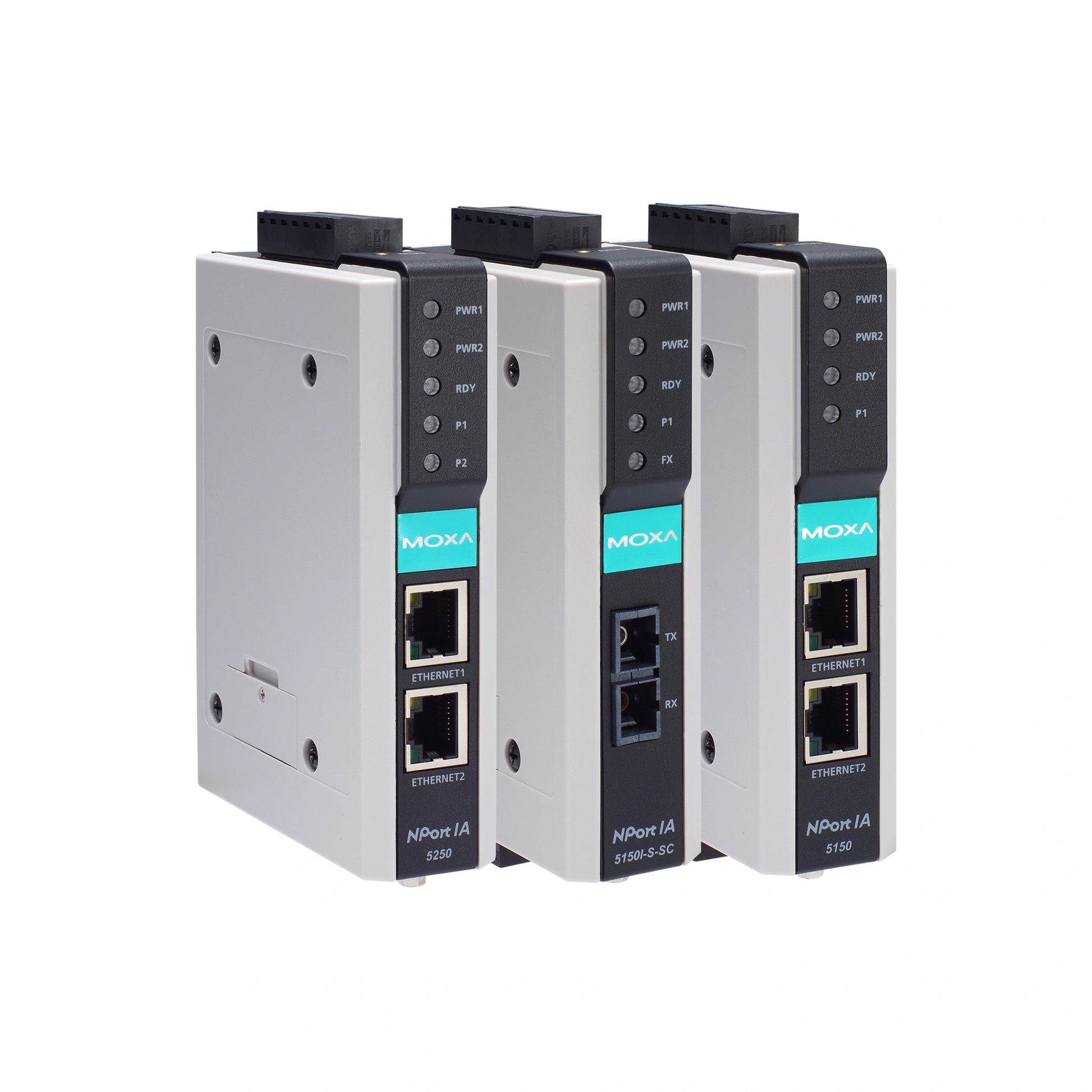

You can also find the NPort IA5150-T model in the NPort IA5000 Series.

Data sheet

Specification

Interface
100BaseFX Ports : 2 x Multi-Mode with ST connector
Magnetic Isolation Protection : 1.5 kV (built-in)

Serial Interface
Number of Ports : 1 Port
Serial Standards : RS-232/422/485
Connector : DB9 male for RS-232 and terminal block for RS-422/485

Serial Communication Parameters
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 1.5, 2
Parity : None, Even, Odd, Space, Mark

Serial Signals
RS-232 : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 : Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w : Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w : Data+, Data-, GND

General
MTBF : 1,175,887 hrs

Power Requirements
Connection : Terminal block
Input Voltage : 12V DC, 0.238A to 48V DC (Dual power inputs)
Input Current : 510 mA @ 12 VDC

Security
Authentication : Local database (password only)

Physical Characteristics
Dimensions : 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)
Installation : DIN-rail mounting
Housing : Plastic
Operating Temperature : 0 to 55°C (32 to 131°F)
Storage Temperature : -40 to 75°C (-40 to 167°F)
Operation Humidity : 5 to 95% (non-condensing)
Weight : 360 g (0.79 lb)
