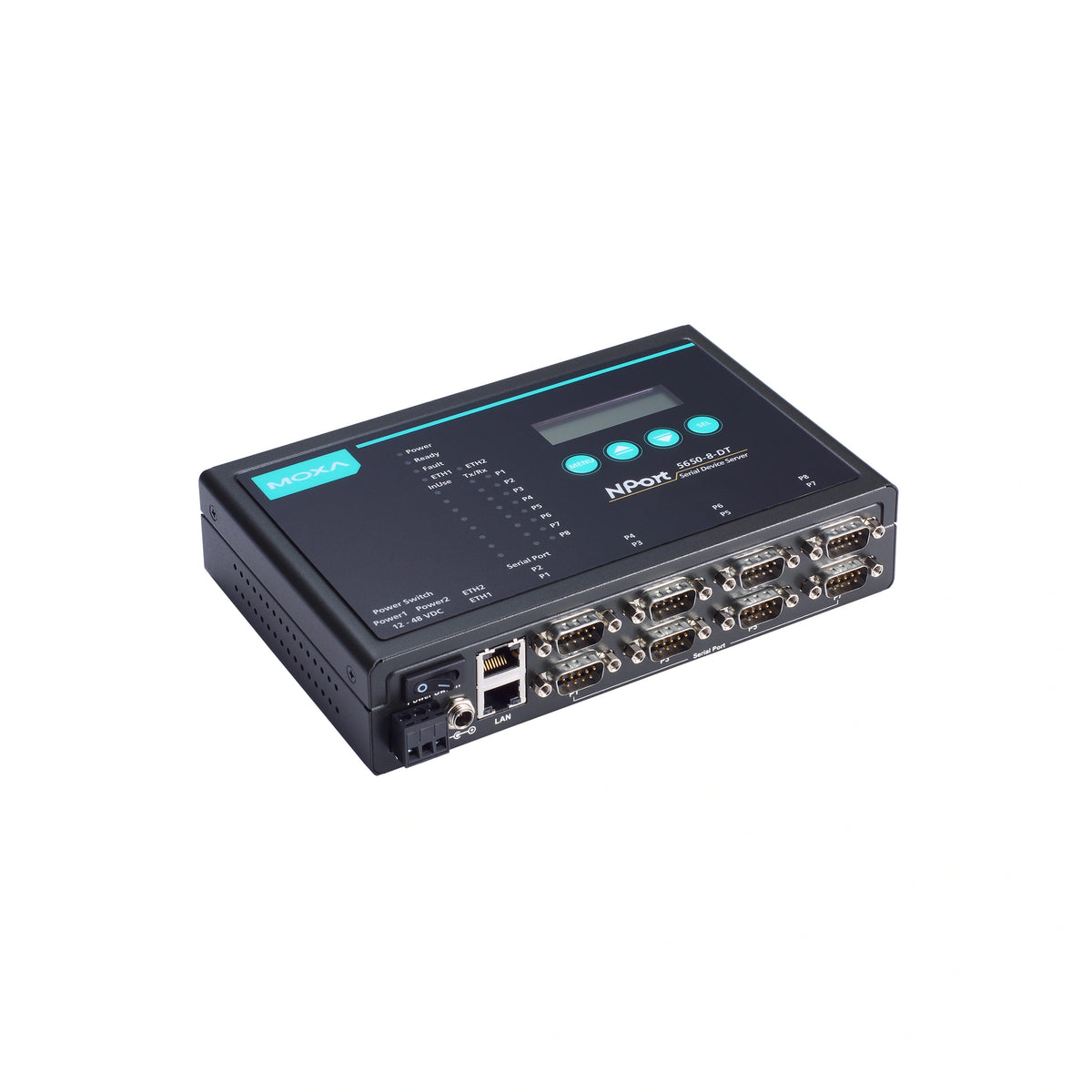

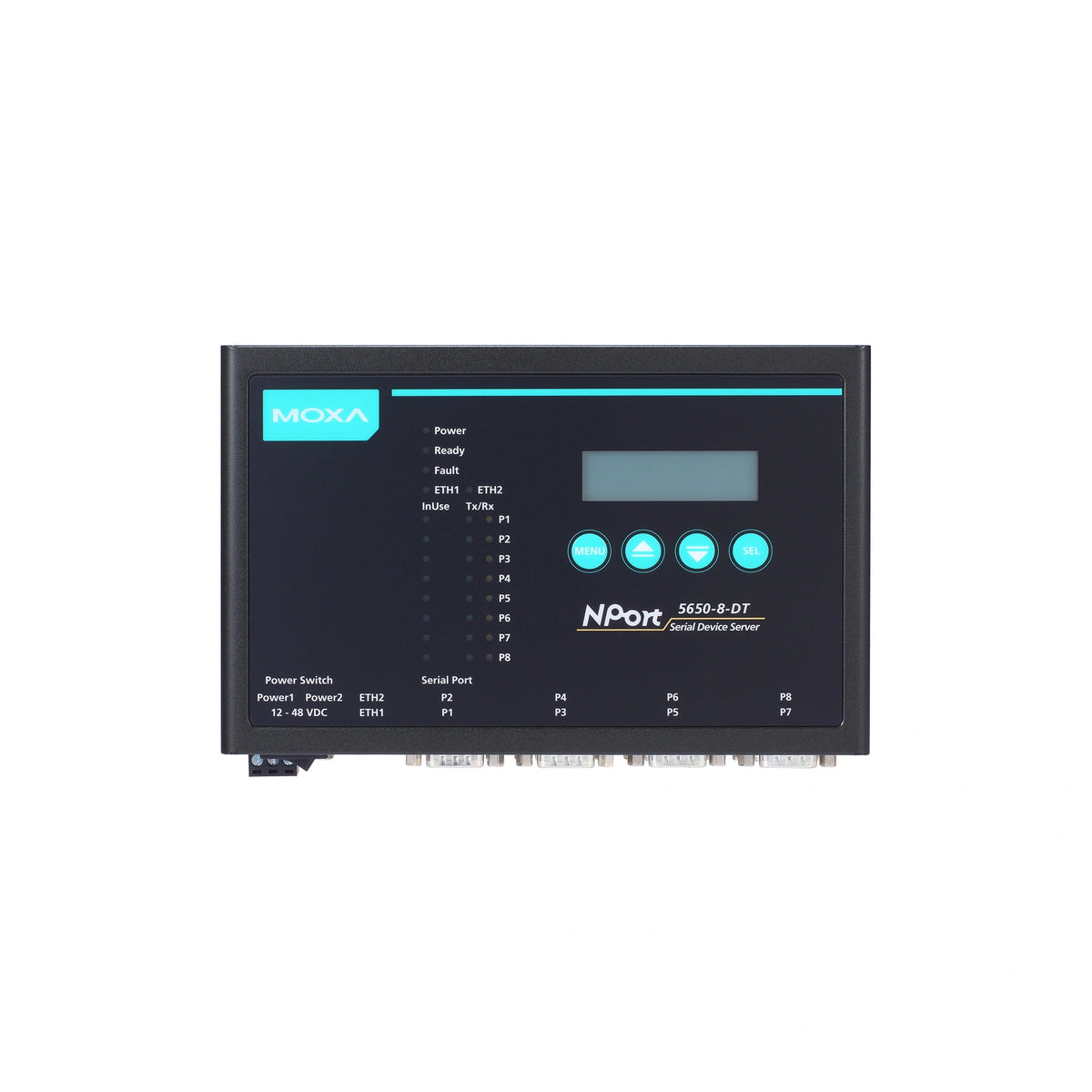

MOXA NPORT 5650-8-DT SERIAL TO ETHERNET RACKMOUNT SERIAL DEVICE SERVER

MOXA NPORT 5650-8-DT SERIAL TO ETHERNET RACKMOUNT SERIAL DEVICE SERVER

$1,349.00 CAD
$1,349.00 CAD
Sale Sold out
We have 2 in stock

Features and Benefits

  • 2 x 10/100Mbps T(x) port and 8 x RS-232/422/485 Serial ports
  • 12 to 48 VDC
  • Metal body
  • 0 to 55°C operating temperature

    View full details

    Description

    NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize the management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.

    The NPort 5650-8-DT device servers support selectable 1 kilo-ohm and 150 kilo-ohms pull high/low resistors and a 120-ohm terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort 5600-8-DT device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port.

    Data sheet

    Specification

    10Mbps RJ-45 Ports: No
    10/100Mb RJ45 (Megabit) Ports: Yes: 2 Ports
    RS-232 Ports: Yes: 8 Ports
    RS-422/485 Ports: No
    RS-232/422/485 Ports: No
    Serial connection type: DB9 male
    Serial Communication Parameters: Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark
    Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
    Data transfer speed (Baudrate): Supports standard baud rates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
    Protection against electrostatic discharge: -
    Electrical isolation: No
    Wireless Standards: No
    Maximum data transfer speed: No
    Maximum direct range: No
    Management: DHCP Client, HTTP, IPv4, SMTP, SNMPv1, Telnet, ARP, Rtelnet, DNS, BOOTP, UDP, TCP/IP, ICMP
    MTBF: 111,407 hrs
    Compatible operating systems: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
    Fixed TTY Drivers: SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
    Linux Real TTY Drivers: Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
    Power Consumption (Output Adapter): -
    Security: No
    Encryption: No
    Display: No
    Keyboard: No
    The automatic restart (reset): Yes: WDT
    Alarm feature: No
    Network protocol: DHCP Client, HTTP, IPv4, SMTP, SNMPv1, Telnet, ARP, Rtelnet, DNS, BOOTP, UDP, TCP/IP, ICMP, SNTP
    Dimensions: Dimensions (with DIN-rail kit on bottom panel)
    Safety: UL 60950-1
    EMC: EN 55032/24
    EMI: CISPR 32, FCC Part 15B Class A
    EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs
    Marine: No
    Medical: No
    LAN port Protection against magnetic fields: 1.5 kV (built-in)
    Housing: Metal
    Storage Temperature: -20 to 70°C (-4 to 158°F)
    Altitude: -
    Operation Humidity: 5 to 95% (non-condensing)
