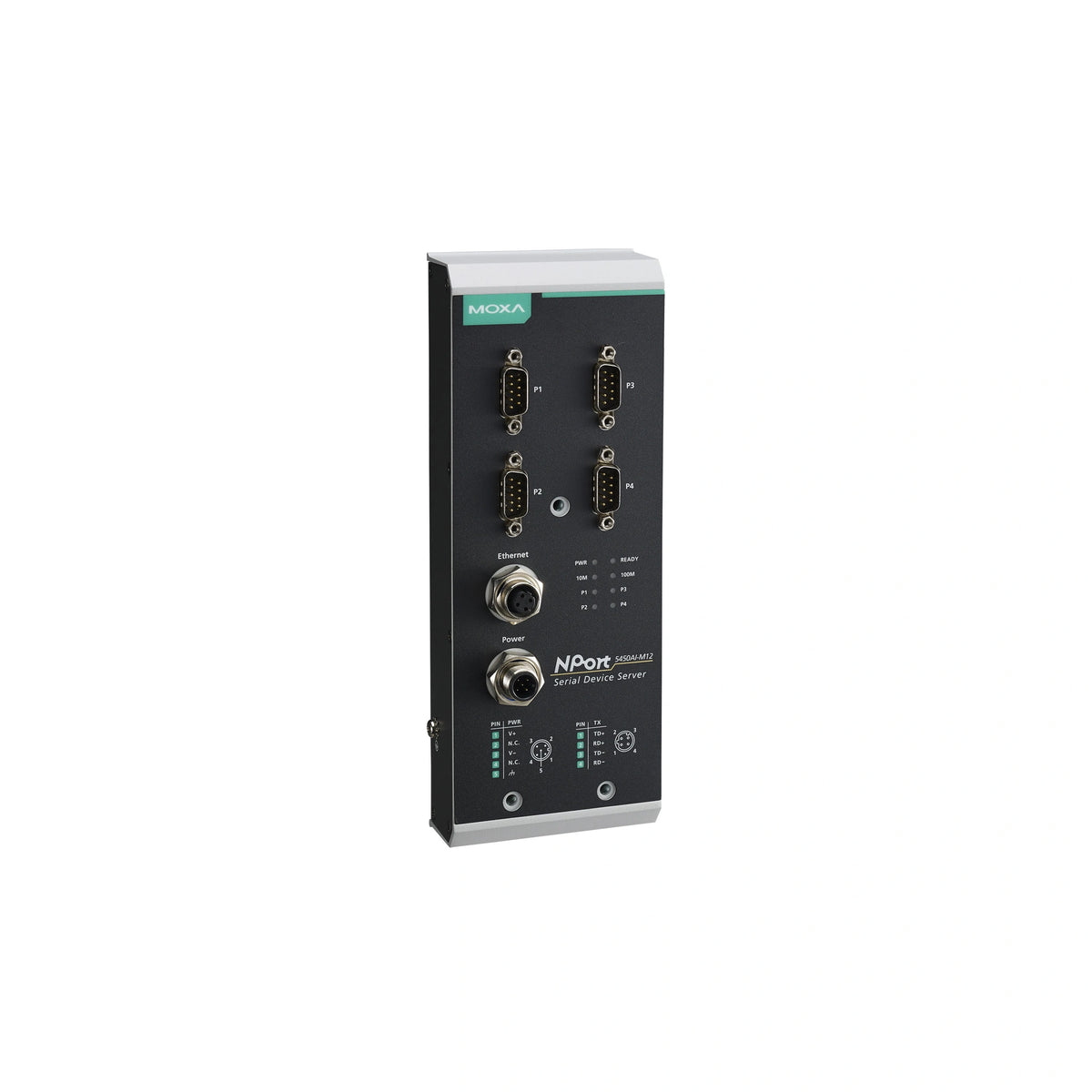

MOXA NPort 5450AI-M12-CT Serial to Ethernet Device Server

MOXA NPort 5450AI-M12-CT Serial to Ethernet Device Server

$1,837.00 CAD
$1,837.00 CAD
Sale Sold out

Features and Benefits

  • 1 x 10/100Mbps T(x) (M12 D-coded 4-pin female connector) port and 4 x RS-232/422/485 Serial port
  • 12 to 48 VDC input power
  • Metal body
  • -20 to 55°C operating temperature
  • 2 kV isolation for serial signals
  • Conformal Coating
View full details

Description

Introduction
The NPort® 5000AI-M12 serial device servers are designed to make serial devices network-ready in an instant, and provide direct access to serial devices from anywhere on the network. Moreover, the NPort 5000AI-M12 is compliant with EN 50121-4 and all mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for rolling stock and wayside applications where high levels of vibration exist in the operating environment.

3-Step Web-based Configuration
The NPort 5000AI-M12’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort 5000AI-M12’s web console guides users through three simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this speedy 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort settings and enable the application, saving a great amount of time and effort.

Easy to Troubleshoot
NPort 5000AI-M12 device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.

Data sheet

Specification

Ethernet Interface: 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 1
Ethernet Software Features: Configuration Options: Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Telnet Console Management: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP Filter: IGMP v1/v2
Windows Real COM Drivers: Supported Versions: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers: Supported Kernel Versions: 2.4.x, 2.6.x, 3.x, 4.x, 5.x
Fixed TTY Drivers: Supported Systems: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
Android API: Supported Versions: Android 3.1.x and later
Security Functions: Authentication: Local database Encryption: HTTPS, AES-128, RSA-1024, SHA-1, SHA-256 Security Protocols: SNMPv3, HTTPS (TLS 1.2)
Serial Interface: Connector: DB9 male No. of Ports: NPort 5150AI-M12 Models: 1, NPort 5250AI-M12 Models: 2, NPort 5450AI-M12 Models: 4 Serial Standards: RS-232, RS-422, RS-485 Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k Data Bits: 5, 6, 7, 8 Stop Bits: 1, 1.5, 2 Parity: None, Even, Odd, Space, Mark Flow Control: RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF RS-485 Data Direction Control: ADDC (automatic data direction control) Isolation: 2 kV
Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND RS-485-2w: Data+, Data-, GND
Power Parameters: Input Current: NPort 5150AI-M12 Models: 310 mA @ 12 VDC, NPort 5250AI-M12 Models: 360 mA @ 12 VDC, NPort 5450AI-M12 Models: 440 mA @ 12 VDC Input Voltage: 12 to 48 VDC Note: Compliant with EN 50155 on 24/48 VDC Power Connector: M12 A-coded 5-pin male connector
Reliability: Automatic Reboot Trigger: Built-in WDT Alert Tools: Built-in buzzer and RTC (real-time clock)
Physical Characteristics: Dimensions: 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in) Weight: 686 g (1.51 lb) Protection: NPort 5000AI-M12-CT Models: PCB Conformal Coating
Environmental Limits: Operating Temperature: Standard Models: -25 to 55°C (-13 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature (package included): -40 to 85°C (-40 to 185°F) Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF Railway: EN 50121-4 Safety: UL 60950-1 Vibration: IEC 60068-2-6
Declaration: Green Product: RoHS, CRoHS, WEEE
MTBF: Time: NPort 5150AI-M12 Models: 789,341 hrs, NPort 5250AI-M12 Models: 639,622 hrs, NPort 5450AI-M12 Models: 467,777 hrs Standards: Telcordia (Bellcore) Standard TR/SR
Warranty: Warranty Period: 5 years
