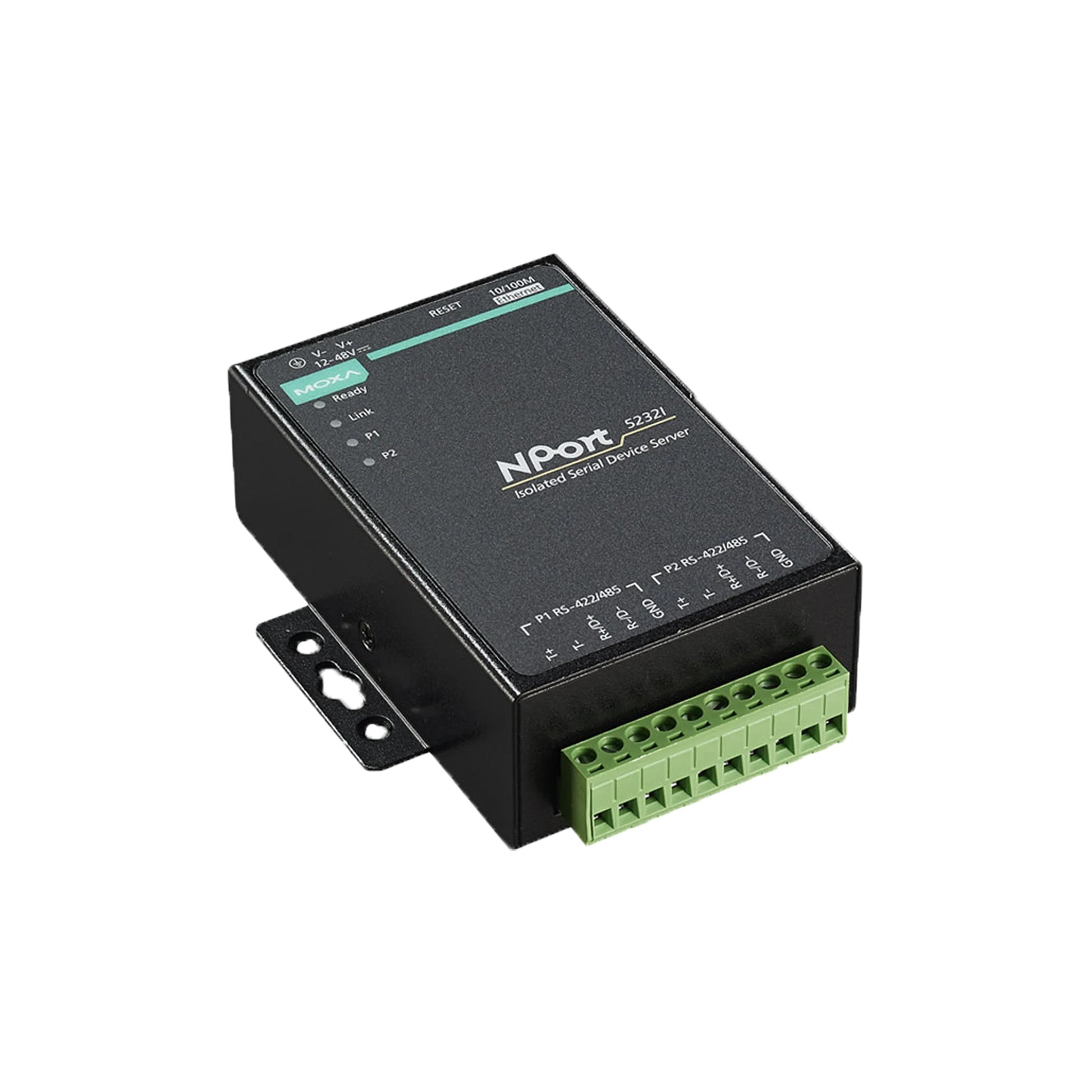

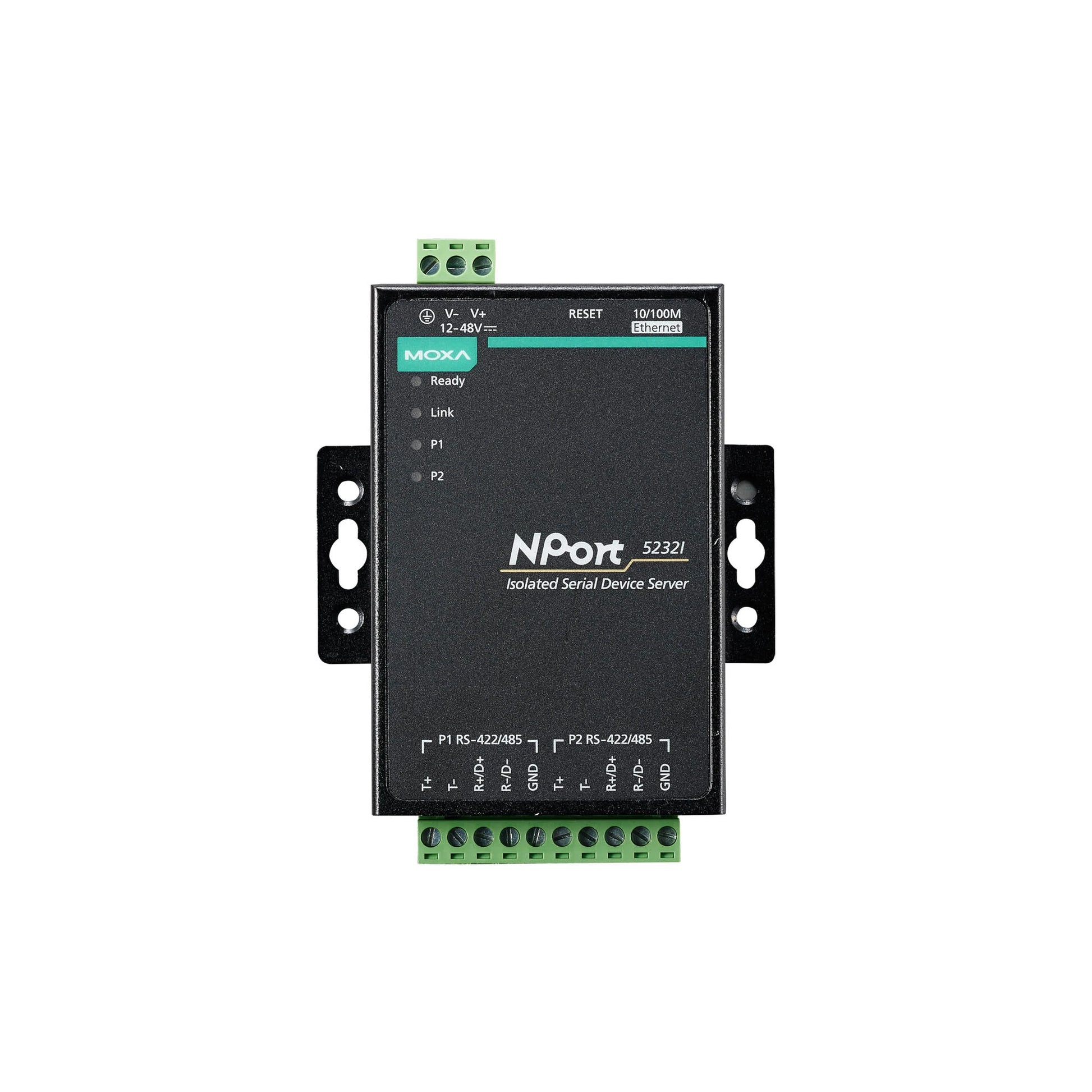

MOXA NPORT 5232I SERIAL TO ETHERNET DEVICE SERVER

MOXA NPORT 5232I SERIAL TO ETHERNET DEVICE SERVER

$426.00 CAD
$426.00 CAD
Sale Sold out

Features and Benefits

  • 1 x 10/100Mbps T(x) port and 2 x RS-422/485 Serial ports
  • 12 to 48 VDC input power
  • Metal body
  • 0 to 55°C operating temperature
  • Surge protection for serial, Ethernet, and power
View full details

Description

The NPort 5200 serial device servers are designed to make your industrial serial devices Internet-ready in no time. The compact size of NPort 5200 serial device servers makes them the ideal choice for connecting your RS-232 (NPort 5210/5230/5210-T/5230-T) or RS-422/485 (NPort 5230/5232/ 5232I/5230-T/5232-T/5232I-T) serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices from anywhere over a local LAN or the Internet. The NPort 5200 Series has a number of useful features, including standard TCP/IP protocols and choice of operation modes, Real COM/TTY drivers for existing software, and remote control of serial devices with TCP/IP or traditional COM/TTY Port.

NPort 5200 device servers can operate in TCP Server, TCP Client, or UDP operation mode, ensuring compatibility with software based on a standard network API (Winsock, BSD Sockets).

Data sheet

Specification

10Mbps RJ-45 Ports: No
10/100Mb RJ45 (Megabit) Ports: Yes: 1 Port
RS-232 Ports: No
RS-422/485 Ports: Yes: 2 Ports
RS-232/422/485 Ports: No
Serial Connection Type: TB
Serial Communication Parameters: Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Data Transfer Speed (Baudrate): 0.11Kbps to 230.4Kbps
Protection Against Electrostatic Discharge: 15KV
Electrical Isolation: 2KV
Wireless Standards: No
Maximum Data Transfer Speed: No
Maximum Direct Range: No
Management: Web Console, Telnet Console, Windows Utility
MTBF: 87,083 hours
Compatible Operating Systems: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x
Power Consumption (Output Adapter): 12V DC, 0.509A to 48V DC
Security: No
Encryption: No
Display: No
Keyboard: No
Automatic Restart (Reset): Yes: WDT
Alarm Feature: Yes: Buzzer and RTC
Network Protocol: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Data Transfer Protocol: No
Dimensions: 67x100.4x35mm
Safety: UL 60950-1, EN 60950-1
EMC: CE, FCC
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS: EN 55024
Marine: DNV
Medical: No
LAN Port Protection Against Magnetic Fields: 1.5KV
Housing: Metal
Operating Temperature: 0 to 55 °C
Storage Temperature: -40 to 75 °C
Altitude: 2000m
Operation Humidity: 5% to 95% RH non-condensing
Weight: 0.38Kg
