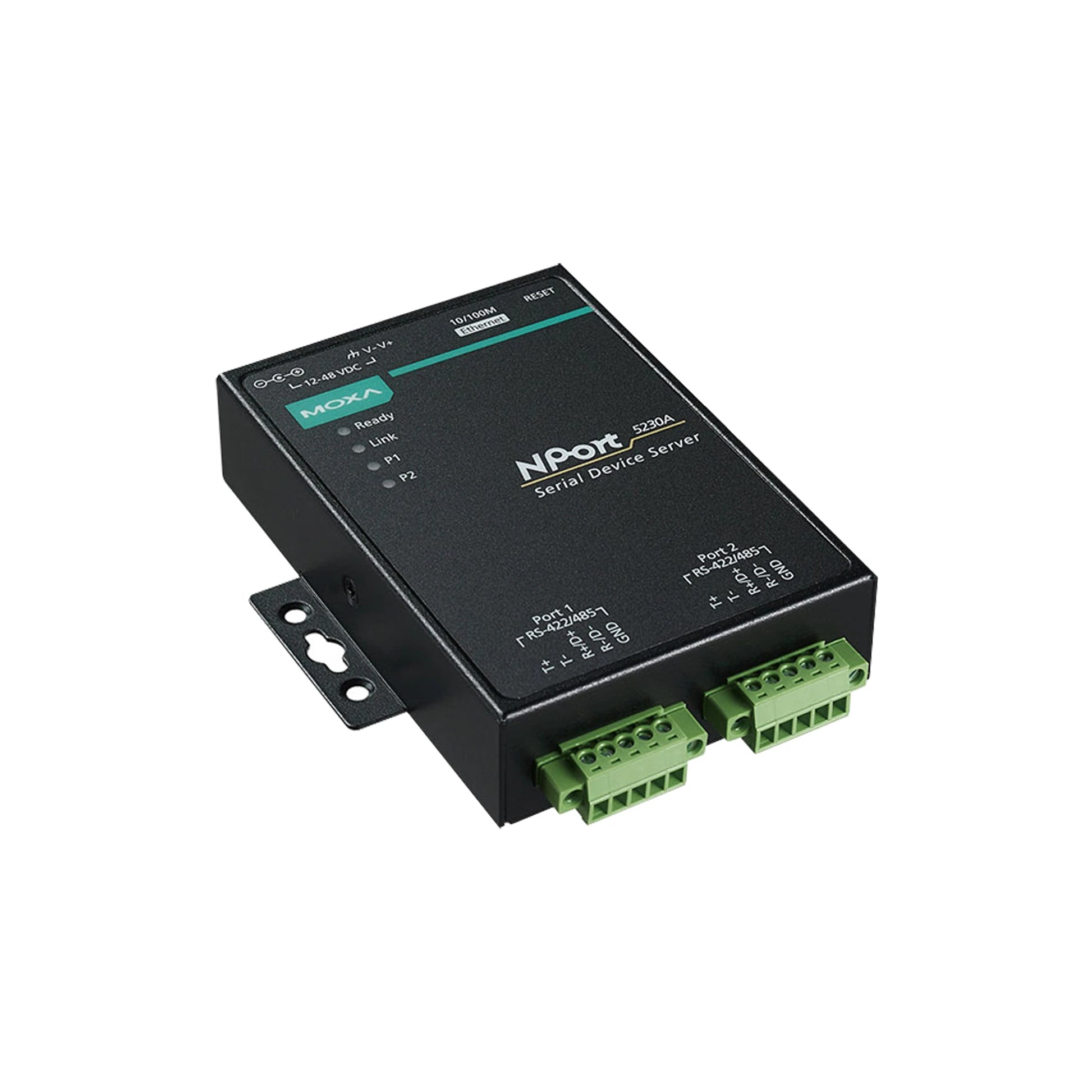

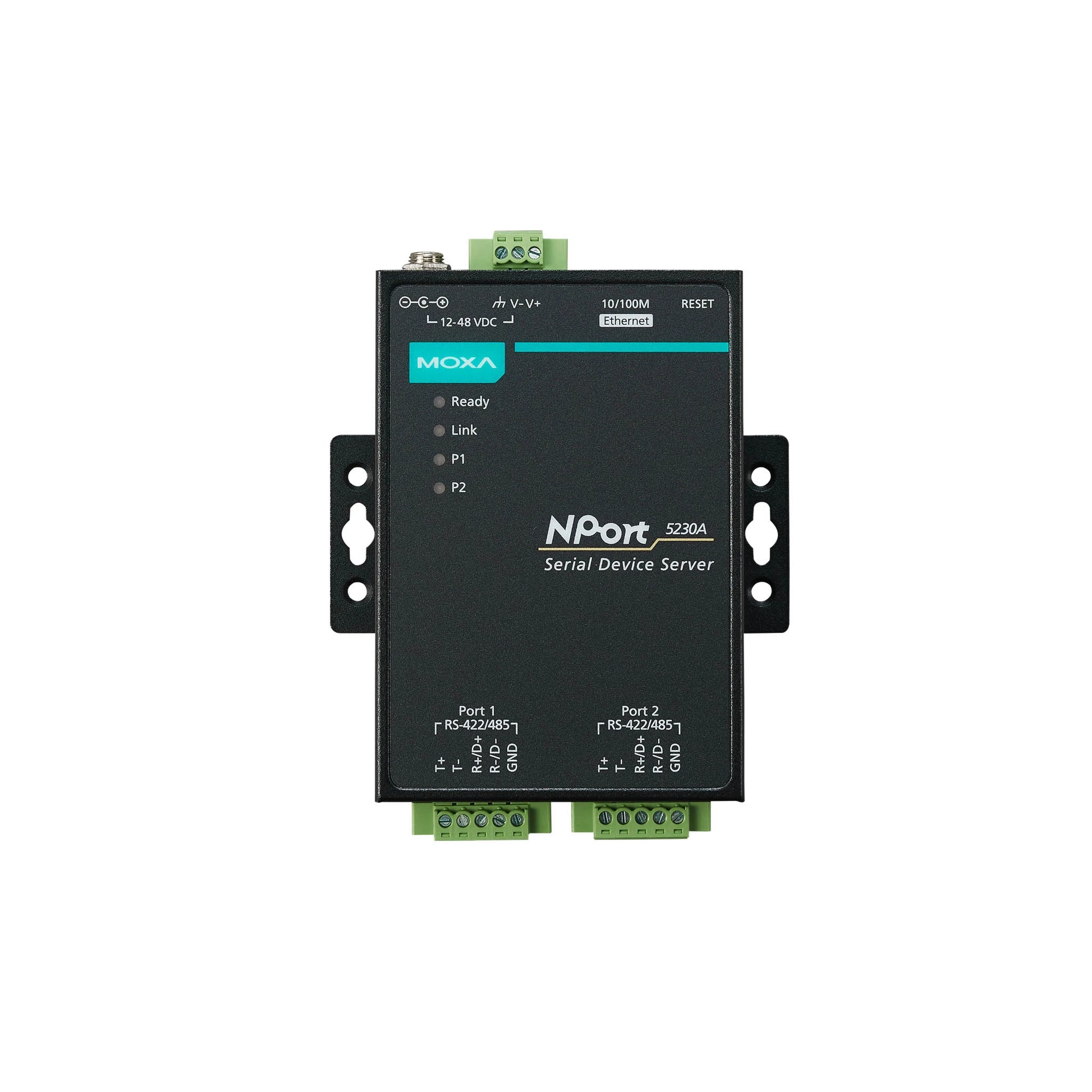

MOXA NPORT 5230A-T SERIAL TO ETHERNET DEVICE SERVER

MOXA NPORT 5230A-T SERIAL TO ETHERNET DEVICE SERVER

Regular price $539.00 CAD
Regular price Sale price $539.00 CAD
Sale Sold out

Features and Benefits

  • 1 x 10/100Mbps T(x) port and 2 x RS-422/485 Serial ports
  • 12 to 48 VDC input power
  • Metal body
  • -40 to 75°C operating temperature
  • Surge protection for serial, Ethernet and power
View full details

Description

The NPort® 5200A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5200A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® 5200A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.

The NPort® 5200A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort® 5200A’s web console guides users through three simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this fast 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort® settings and enable the application, saving a great amount of time and effort.

Specification

10Mbps RJ-45 Ports: No
10/100Mb RJ45 (Megabit) Ports: Yes: 1 Port
RS-232 Ports: No
RS-422/485 Ports: Yes: 2 Ports
RS-232/422/485 Ports: No
Serial Connection Type: DB9-M
Serial Communication Parameters: Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
Data Transfer Speed (Baudrate): 0.05Kbps to 921.6Kbps
Protection Against Electrostatic Discharge: 15KV
Electrical Isolation: No
Wireless Standards: No
Maximum Data Transfer Speed: No
Maximum Direct Range: No
Management: Web Console, Telnet Console, Serial Console, Windows Utility
MTBF: 847,750 hours
Compatible Operating Systems: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x
Power Consumption (Output Adapter): 12V DC, 0.119A and 24V DC, 0.065A
Security: No
Display: No
Keyboard: No
Automatic Restart (Reset): Yes: WDT
Alarm Feature: No
Network Protocol: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Data Transfer Protocol: No
Dimensions: 77x111x26mm
Safety: UL 60950-1, EN 60950-1
EMC: CE, FCC
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS: EN 55024
Marine: No
Medical: No
LAN Port Protection Against Magnetic Fields: 1.5KV
Housing: Metal
Operating Temperature: -40 to 75 °C
Storage Temperature: -40 to 75 °C
Altitude: 2000m
Operation Humidity: 5% to 95% RH non-condensing
