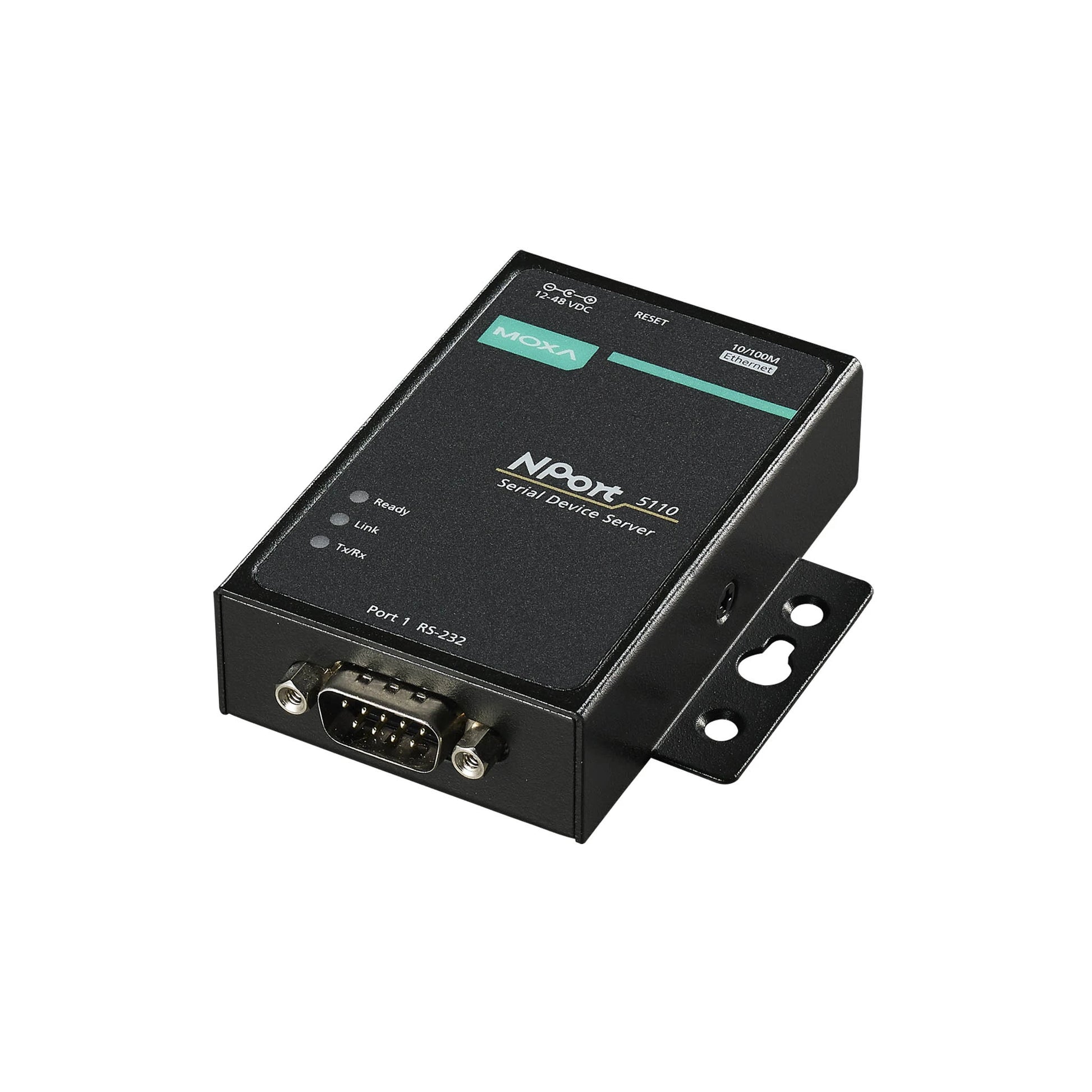

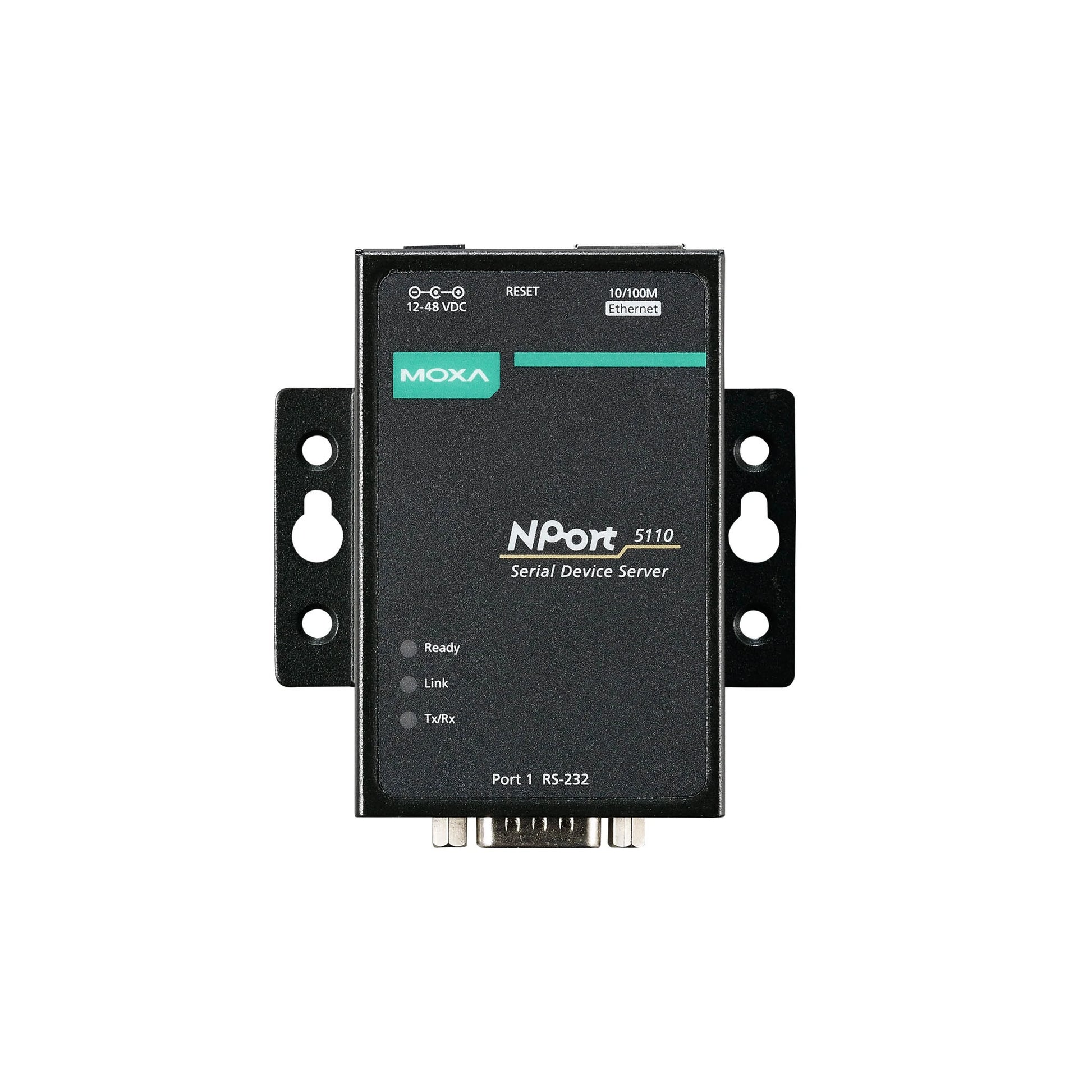

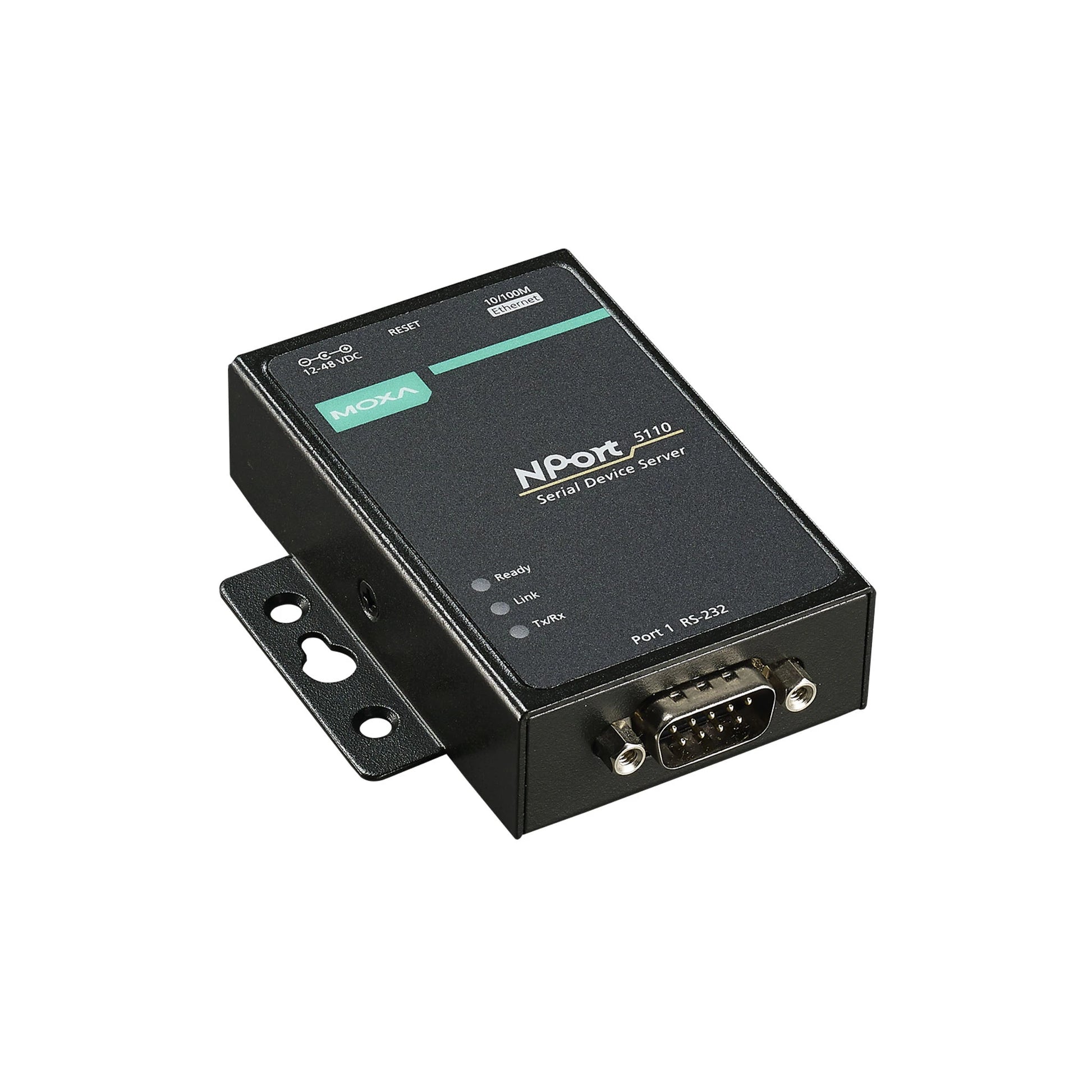

MOXA NPORT 5110-T SERIAL TO ETHERNET DEVICE SERVER

MOXA NPORT 5110-T SERIAL TO ETHERNET DEVICE SERVER

$282.00 CAD
$282.00 CAD
Sale Sold out
We have 20 in stock

Features and Benefits

  • 1 x 10/100Mbps T(x) port and 1 x RS-232 Serial port
  • 12 to 48 VDC input power
  • Metal body
  • -40 to 75°C operating temperature
View full details

Description

NPort 5100 device servers are designed to make serial devices network-ready in an instant. The small size of the servers makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. Use the NPort 5100 device servers to give your PC software direct access to serial devices from anywhere on the network.

The NPort® 5100 device servers can be configured for TCP Server, TCP Client, UDP Server/Client, Pair Connection, or Ethernet Modem mode, ensuring compatibility with software based on a standard network API (e.g., Winsock or BSD Sockets).

NPort® 5100 device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP Manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a change in password.

Data sheet

Specification

10/100Mb RJ45 (Megabit) Ports: Yes: 1 Port
RS-232 Ports : Yes(1 Port)
Serial connection type: DB9-M
Serial Communication Parameters: Data Bits: 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2, Parity : None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Data transfer speed ( Baudrate ): 0.11Kbps to 230.4Kbps
Protection against electrostatic discharge: 15KV
Management: Web Console, Serial Console, Telnet Console, Windows Utility
MTBF: 279122 hour
Compatible operating systems: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x
Power Consumption (Output Adapter): 12V DC, 0.12A to 48V DC
The automatic restart (reset): Yes (WDT)
Network protocol: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP
Dimensions: 52x80x22mm
Safety: UL 60950-1, EN 60950-1
EMC: FCC, CE
EMI: EN 55022 Class B, FCC Part 15 Subpart B Class A
EMS: EN 55024
LAN port Protection against magnetic fields: 1.5KV
Housing: Metal
Operating Temperature:-40 to 75 ° C
Storage Temperature:-20 to 75 ° C
Altitude: 2000m
Operation Humidity: 5% to %95 RH non-condensing
Weight 0.34Kg
