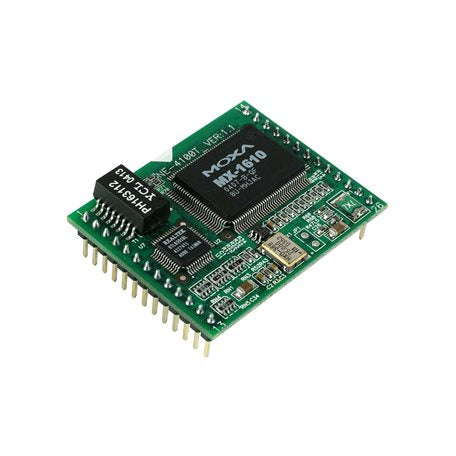

Platform
CPU: 16-bit MCU
Memory
Flash: 2 MB
SDRAM: 1 MB
Input/Output Interface
Configurable DIO Channels (by software): 4
Ethernet Interface
10/100BaseT(X) Ports, Auto MDI/MDI-X: NE-4120S/4120A: 5-pin pin header, NE-4100T: 26-pin dual-in-line, NE-4110S/4110A: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV (built-in)
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control
Ethernet Software Features
Configuration Options: Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
Management: ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers: Kernel versions 2.4.x, 2.6.x, 3.x, 4.x, 5.x
Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API: Android 3.1.x and later
Serial Interface
No. of Ports: 2 (1 for serial interface, 1 for TTL console port)
Serial Standards: NE-4110S/4120S Series: RS-232, NE-4110A/4120A Series: RS-422, RS-485, NE-4100T Series: TTL
Operation Modes: Real COM mode, TCP Client mode, TCP Server mode, UDP mode
Baudrate: 110 bps to 230.4 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, DTR/DSR, XON/XOFF
Serial Signals
RS-232: NE-4110S/4120S: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: NE-4110A/4120A: TX+, TX-, RX+, RX-, GND
RS-485-4w: NE-4110A/4120A: TX+, TX-, RX+, RX-, GND
RS-485-2w: NE-4110A/4120A: Data+, Data-, GND
Power Parameters
Input Voltage: 5 VDC
Power Consumption: 290 mA @ 5 VDC
Physical Characteristics
Dimensions: NE-4110/4120: 57 x 40 mm (2.24 x 1.57 in), NE-4100T: 45 x 36 mm (1.77 x 1.42 in)
Weight: NE-4110S/4110A: 40 g (0.09 lb), NE-4120S/4120A/4100T: 20 g (0.04 lb)
Form Factor Type: NE-4110/4110A/4120S/4120A: Ready-to-go pin header modules, NE-4100T: Drop-in modules
Environmental Limits
Operating Temperature: Standard Models: 0 to 55˚C (32 to 131˚F), Wide Temp. Models: -40 to 75˚C (-40 to 167˚F)
Storage Temperature (package included): -40 to 60°C (-40 to 140°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 4 kV, Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV, Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m, Signal: 3 V/m, IEC 61000-4-8 PFMF
Environmental Testing: IEC 60068-2-1, IEC 60068-2-3, IEC 60068-2-14
Declaration
Green Product: RoHS, CRoHS, WEEE
MTBF
Time: NE-4100T: 288,173 hrs, NE-4110S: 290,276 hrs, NE-4110A/4120S/4120A: 289,573 hrs
Standards: Telcordia SR332
Warranty
Warranty Period: 5 years
