Moxa

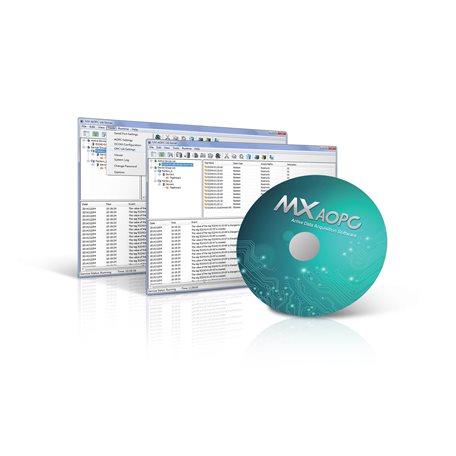

MOXA MX-AOPC UA Server OPC UA Software

MOXA MX-AOPC UA Server OPC UA Software

$439.00 CAD
$439.00 CAD
Sale Sold out

Features and Benefits

  • Creates a secure data connection between OT and IT systems
  • Efficient data acquisition through push-type transmission (report by interval or exception method)
  • Automatic data updates from SD cards following network failures
  • On-demand and on-schedule data supplement that is complementary to automatic data supplement
View full details

Description


The MX-AOPC UA Suite includes MX-AOPC UA Server, Viewer, and Logger, which are all based on the OPC UA (Unified Architecture) standard. OPC UA is the next generation OPC standard (IEC 62541), which provides a cohesive, secure, and reliable framework for accessing real-time and historical data. MX-AOPC UA Server not only inherits Moxa’s active monitoring technology, but also supports Modbus protocol for polling data to provide a secure and reliable gateway bridging edge devices to the SCADA system. MX-AOPC UA Viewer is an OPC UA client that allows users to easily view tag values and server statuses. MX-AOPC UA Logger is another handy client for converting and uploading data logs to the central database. With Moxa’s MX-AOPC UA Suite, users can now instantly receive alarms, real-time updates, and save historical data, allowing for both timely risk prevention and solid maintenance response.

Data sheet

Specification

Industrial_Protocols:
MX-AOPC UA Server: Modbus TCP Client (Master)
MX-AOPC UA Server: Moxa AOPC (Active Tag)
Serial_Software_Features: MX-AOPC UA Server: Modbus RTU Client (Master)
OPC_Specifications:
OPC_UA_Unified_Architecture: MX-AOPC UA Logger: 1.02, MX-AOPC UA Server: 1.01
OPC_DA_Data_Access: MX-AOPC UA Server: 1.0a, 2.0, 2.05a, 3.0
Hardware_Requirements:
Communication_Interface: Ethernet interface, Serial interface
CPU: Intel Pentium 4 or above
RAM: Minimum: 512 MB, Recommended: 1024 MB
Software_Requirements:
Cloud_Optional: MX-AOPC UA Logger: Microsoft Azure
Database_Optional: MX-AOPC UA Logger: Microsoft SQL Server (x86), MySQL (x86), Oracle database (x86)
Editor_Optional: MX-AOPC UA Logger: Microsoft Office 2003 (Access or Excel) or later
Microsoft_.NET_Framework: v3.5 Service Pack 1
Operating_System: Microsoft Windows 7, Microsoft Windows 8, Microsoft Windows 10, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012
