Moxa

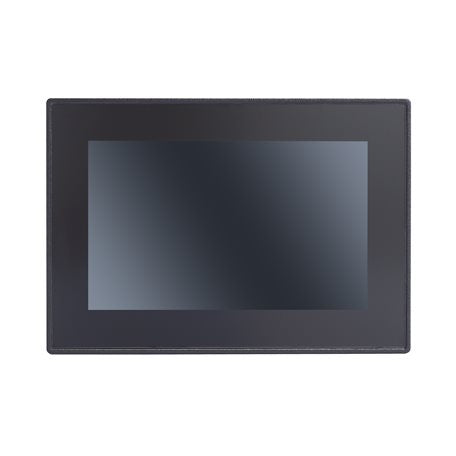

MOXA MPC-3070W-E4-T PANEL COMPUTER

MOXA MPC-3070W-E4-T PANEL COMPUTER

Regular price $2,377.00 CAD
Regular price Sale price $2,377.00 CAD
Sale Sold out

Features and Benefits

  • 7-inch panel computer with 1000-nit sunlight-readable display
  • Intel Atom® Elkhart Lake quad-core x6425E CPU
  • 2 x 10/100/1000 Mbps Ethernet ports (RJ45 connector)
  • 2 x RS-232/422/485 Serial Ports (DB9 male connector)
  • Metal body design (IP66 front, IP20 rear)
  • 12/24 VDC input power range
  • -30 to 60°C operating temperature
View full details

Description

Introduction
The MPC-3070W 7-inch panel computers with Intel Atom® x6211E dual-core or x6425E quad-core processor deliver a reliable, durable, and
versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the
MPC-3070W panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network
redundancy.
The MPC-3070W panel computers are designed for the -30 to 60°C temperature range, and come with a fanless, streamlined enclosure designed
for highly efficient heat dissipation. This makes the computers reliable industrial platforms for harsh, hot, outdoor environments like oil and gas
fields and drilling platforms. The MPC-3070W also features a 400–nit or 1000–nit LCD panel offering a sunlight-readable, projected-capacitive,
glove-friendly, multi-touch screen for an excellent user experience in outdoor applications.

Specification

Industrial Computer : Computer
CPU: Intel Atom® Elkhart Lake quad-core x6425E 2.0 GHz
Supported OS: Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11 (kernel 5.10), Ubuntu 22.04 LTS (kernel 5.1x), RHEL 9 (kernel 5.14)
System Memory: 8 GB DDR4 2400 MHz (32 GB max), pre-installed
USB: USB 3.0 hosts x 2, type-A connectors
Storage: CFast slot x 1, SD slots x 1, SD 3.0 interface (SDHC/SDXC)

Industrial Computer : Interface
LAN: 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Magnetic Isolation Protection: No
Serial Standards: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

Industrial Computer : Display
Panel Size: 7 in (viewable image)
Aspect Ratio: 5:3
Response Time: 25 ms
Contrast Ratio: 800:1 (typ.)
Viewing Angles: 178°/178°
Touch: Type: Projective Capacitive touchscreen (PCAP), Support Points: 4 points
Pixels: 800 x 480
Pixel Pitch (RGB): 0.1905 (H) x 0.1905 (V) mm
Light Intensity: 1000 nits
Active Display Area: 152.4 (H) x 91.44 (V) mm
Max. No. of Colors: 262k, 16.7M (8-bit/color)

Industrial Computer : Digital Input
Input Channels: DIs x 4 (with isolation protection)
Digital Input Levels for Dry Contacts: -
Digital Input Levels for Wet Contacts: -
Connector Type: -
Isolation: Yes

Industrial Computer : Digital Output
Output Channels: DOs x 4 (with isolation protection)
Output Current: -
On-State Voltage: -
Connector Type: -
Isolation: Yes

Industrial Computer : Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)
Baudrate: 50 bps to 115.2 kbps

Industrial Computer : Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Industrial Computer : LED Indicators
LAN: 2 per port (10/100/1000 Mbps)

Industrial Computer : Power Requirements
Input Voltage: 12/24 VDC
Power Consumption: 37 W (max, including full USB loading)

Industrial Computer : Physical Characteristics
Dimensions: 200 x 140 x 60.5 mm (7.87 x 5.51 x 2.38 in)
Housing: Metal
Operating temperature: -30 to 60°C (-22 to 140°F)
Storage Temperature: -40 to 70°C (-40 to 158°F)
Relative humidity: 5 to 95% (non-condensing)
EMC: EN 55032/35
Weight: 1,600 g (3.53 lb)
Anti-Vibration: IEC 60068-2-6, DNV-CG-0339, IEC 60945, IEC 60068-2-64, DNV-CG-0339
Safety: IEC 62368-1, UL 62368-1
Green Product: RoHS, CRoHS, WEEE
Anti-Shock: IEC 60068-2-27
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
Ingress Protection Rating: IP66, front; IP20, rear
Mounting: Panel-mounting
