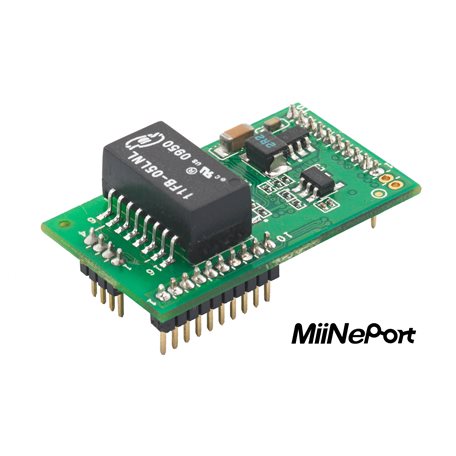

MOXA MiiNePort E2 Embedded Serial Module

Moxa’s MiiNePort E2 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNe empowers the MiiNePort E2, Moxa’s second-generation SoC, which supports 10/ 100 Mbps Ethernet, delivers a serial baudrate of up to 921.6 kbps, offers a versatile selection of ready-to-use operation modes, and requires a minimal amount of power. With Moxa's innovative NetEZ technology, the MiiNePort E2 can convert any device with a standard serial interface to an Ethernet-enabled device. In addition, the MiiNePort E2 is the smallest embedded device server without an RJ45 connector, making it easy to fit into virtually any existing serial device.

Moxa’s Second-Generation SoC
The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E1 uses the MiiNe for its SoC, is one of the world’s tiniest embedded device servers, and has the lowest power consumption of any similar product. The MiiNe has the following features:

Designed for 1 or 2-port serial-to-Ethernet applications, Uses a 32-bit Arm 7 core, Uses Moxa’s own advanced UART technology, 2 MB Flash and 4 MB SDRAM memory built-in

You can also find the MiiNePort E2-ST, MiiNePort E2-H-T, and MiiNePort E2-T models in the MiiNePort E2 Series.
