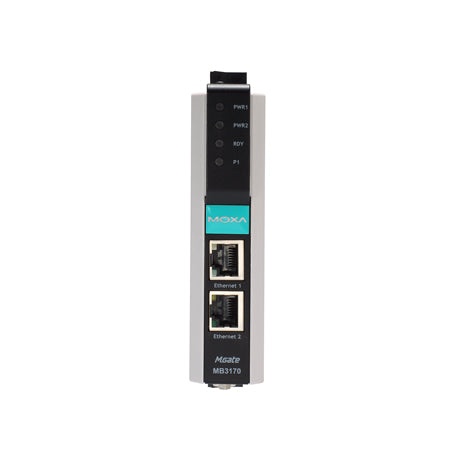

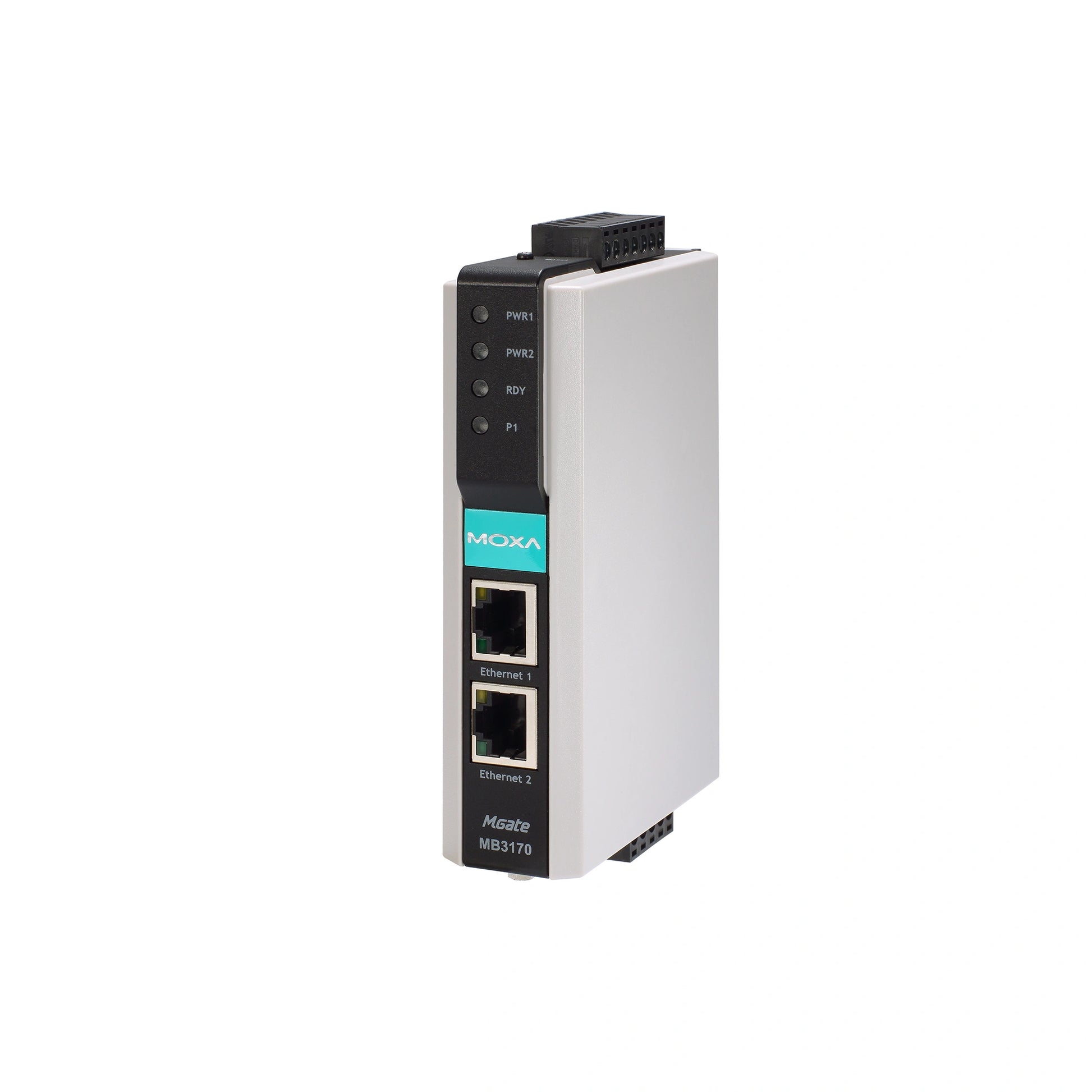

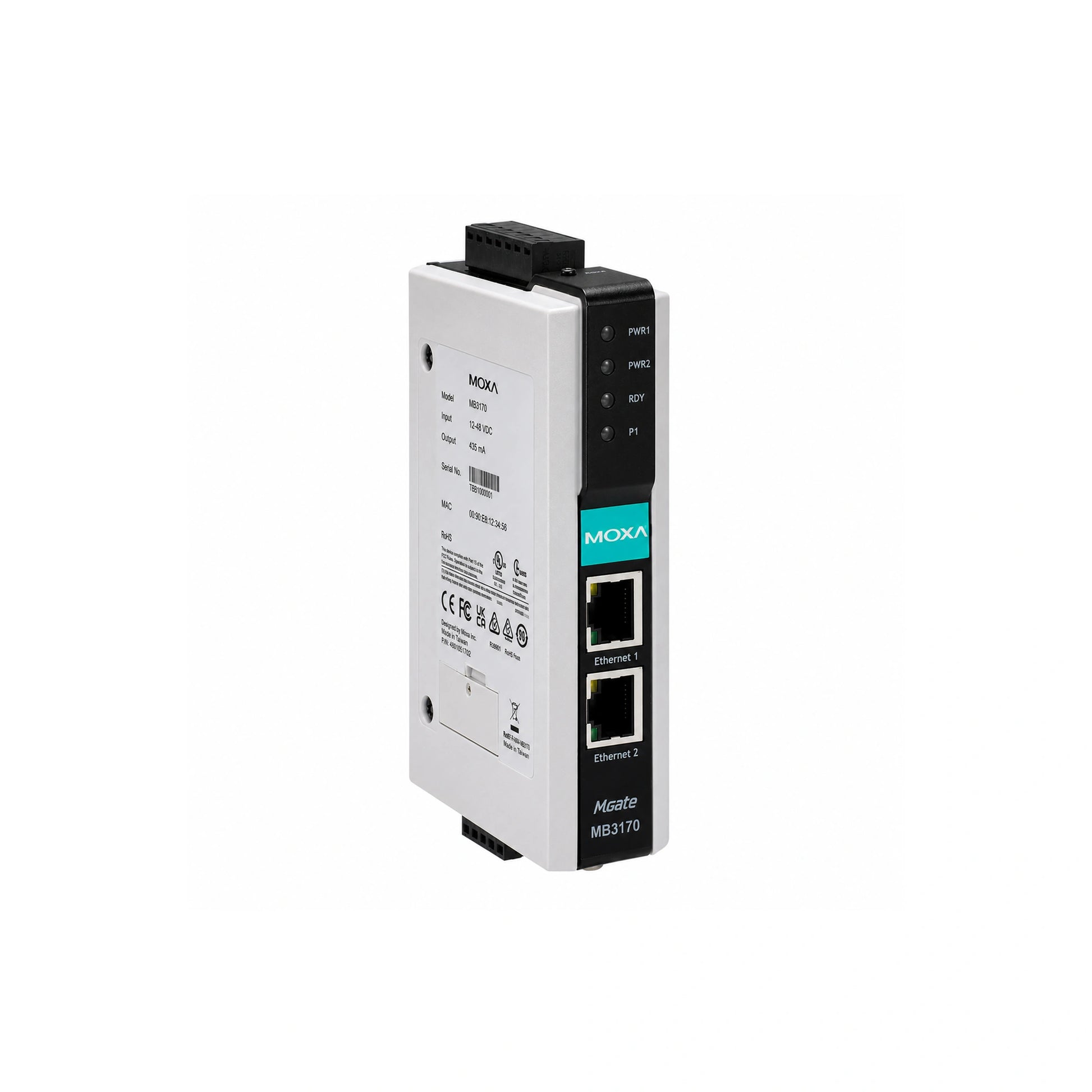

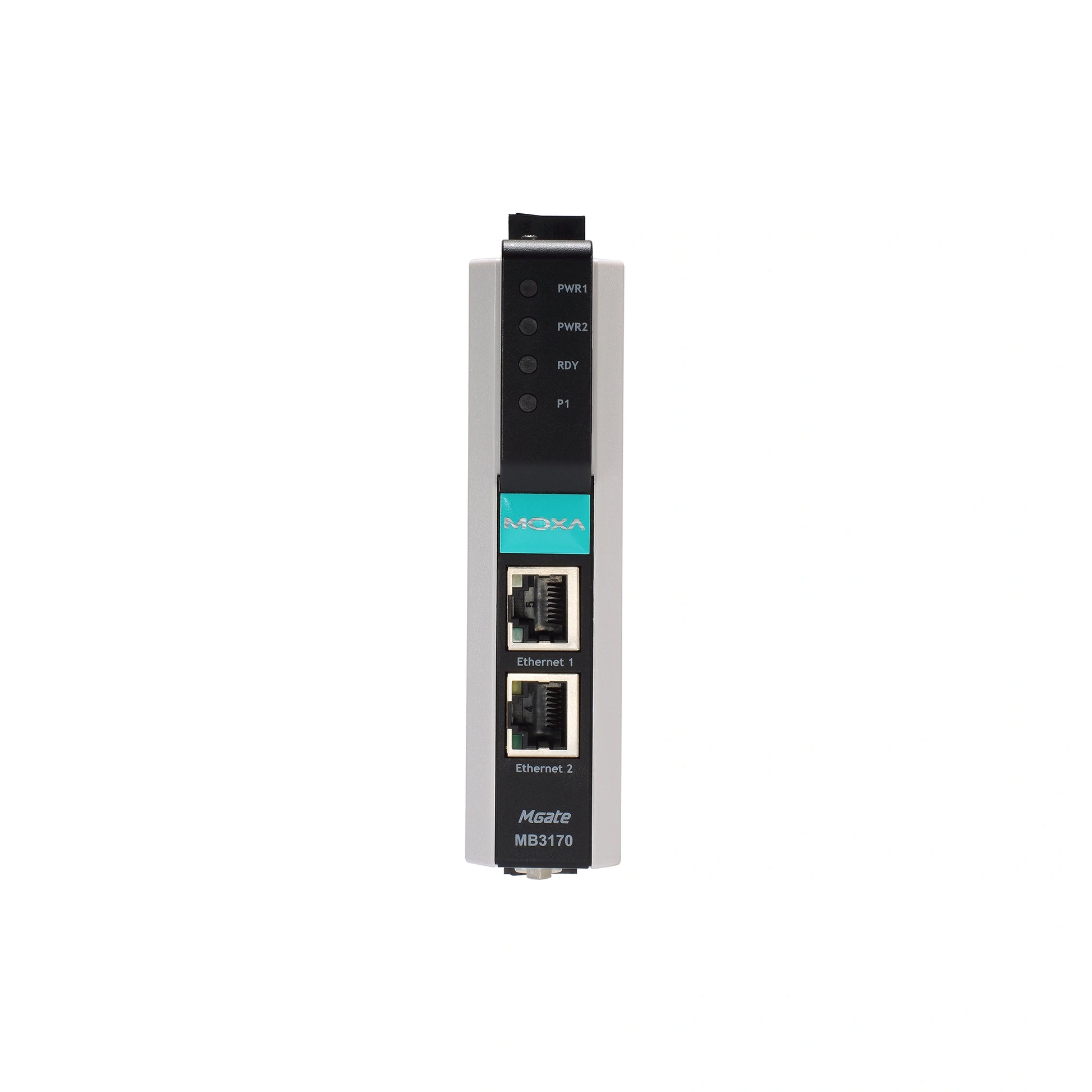

MOXA MGate MB3170 Industrial Ethernet Gateway

MOXA MGate MB3170 Industrial Ethernet Gateway
$597.00 CAD
$597.00 CAD
Special Offer Out of Stock
We have 23 in stock

Features and Benefits

  • Serial to Ethernet Modbus Gateway
  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 1 x RS-232/422/485 Serial Port (DB9-M and TB connectors)
  • 12 to 48 VDC Redundant dual power inputs
  • IP30-rated Plastic body design
  • 0 to 60°C operating temperature



View full details

Description

The MGate MB3170 and MB3270 are 1 and 2-port Modbus gateways, respectively, that convert between Modbus TCP, ASCII, and RTU communications protocols. The gateways provide both serial-to-Ethernet communication and serial (master) to serial (slave) communications. In addition, the gateways support simultaneously connecting serial and Ethernet masters with serial Modbus devices. The MGate MB3170 and MB3270 Series gateways can be accessed by up to 32 TCP master/clients or connect to up to 32 TCP slave/servers. Routing through the serial ports can be controlled by IP address, TCP port number, or ID mapping. A featured priority control function allows urgent commands to obtain an immediate response. All models are rugged, DIN-rail mountable, and offer optional built-in optical isolation for serial signals.

Data sheet

Specification

Interface
10/100Mb RJ45 (Megabit) Ports : 2 Ports
Magnetic Isolation Protection : 1.5 kV (built-in)

Serial Port Specifications
Number of Ports : 1 Port
Connectors : DB9 male for RS-232, Terminal block for RS-422/485
Serial Standards : RS-232/422/485

Serial Communication Parameters
Data Bits : 7, 8
Stop Bits : 1, 2
Parity : None, Even, Odd, Space, Mark
Flow Control : DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS
Baudrate : 50 bps to 921.6 kbps

Serial Signals
RS-232 Signals : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals : Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals : Data+, Data-, GND
RS-485-4w Signals : Tx+, Tx-, Rx+, Rx-, GND

General
MTBF : 1,662,526 hrs

Power Requirements
Input Current : 435 mA @ 12 VDC
Input Voltage : 12 to 48 VDC (Redundant dual power inputs)
Power Connector : 7-pin terminal block

Security
Security : Security Protocols: SNMPv3, HTTPS (TLS 1.2)
Authentication : Local database
Encryption : HTTPS, AES-128, AES-256, SHA-256

Physical Characteristics
Housing : Plastic
Operating Temperature : 0 to 60°C (32 to 140°F)
Weight : 360 g (0.79 lb)
Storage Temperature : -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity : 5 to 95% (non-condensing)
Installation : DIN-rail mounting
