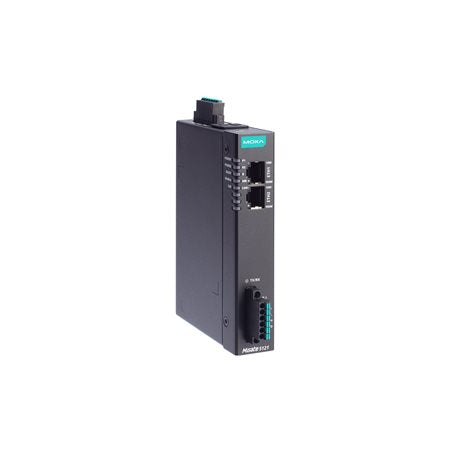

MOXA MGATE 5121 CANOPEN/J1939 TO MODBUS TCP GATEWAY

MOXA MGATE 5121 CANOPEN/J1939 TO MODBUS TCP GATEWAY

$971.00 CAD
$971.00 CAD
Sale Sold out

Features and Benefits

  • Simultaneous protocol conversions from CANopen and J1939 to Modbus TCP and SNMP
  • Supports Modbus TCP server and SNMP agent
  • Supports CANopen master and J1939
  • Flexible deployment with Ethernet cascading and dual subnet
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • Easy device configuration via a web-based console
  • microSD card for configuration backup/duplication
  • Supports dual redundant DC power inputs and 1 relay output
  • CAN port with 2-kV isolation protection
  • Developed according to IEC 62443-4-2 with Secure Boot
View full details

Description

Introduction

The MGate 5121 is an industrial Ethernet gateway for converting CANopen or J1939 to Modbus TCP network communications. To integrate existing CANopen or J1939 devices onto a Modbus TCP network, use the MGate 5121 as a CANopen or J1939 master to collect data and exchange data with the Modbus TCP host. A rugged and compact metal housing protects all models and is DIN-rail mountable. The rugged design suits industrial applications such as factory automation and other process automation industries.

Easy Configuration

The MGate 5121 gateways are provided with a web console to make configuration easy without having to install an extra utility. In addition, HTTPS encryption of communication ensures higher network security. In most data-acquisition applications, the configuration of CANopen devices can be time-consuming and increase costs. The MGate 5121 gateways provide EDS file import function and the user can auto-scan the CANopen devices to help complete the settings quickly. The MGate gateways provide software-configurable termination resistor settings for CANbus to reduce efforts by eliminating the need to open the chassis.

Easy Troubleshooting

The MGate 5121 gateways provide a variety of maintenance functions to reduce troubleshooting time and cost, including LED indicators, protocol diagnostics, traffic monitoring, and tag view. These tools help you capture and check data to easily identify the root cause of issues, especially during the installation stage. The MGate gateways also come with status monitoring and fault protection functions. The status monitoring function notifies a PLC/DCS/SCADA system when a CAN device gets disconnected or does not respond, in which case the process PLC/DCS receives the status of each end device and then issues alarms to notify operators. The fault protection function executes actions pre-defined by the user when a host gets disconnected to prevent the end devices from going offline for long periods of time.

You can also find the MGate 5121-T model in the MGate 5121 Series.

Data sheet

Specification

Ports: 2 x 10/100BaseT(X) Ports (RJ45 connector)
Magnetic Isolation Protection: 1.5 kV (built-in)
Industrial Protocols: Modbus TCP Client
Authentication: Local database
Encryption: HTTPS, AES-128, AES-256, SHA-256
Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)
Ports: 1 x Spring-type Euroblock terminal
Standards: ISO 11898-2
Baudrate: CANopen - 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 Mbps; J1939 - 250 kbps, 500 kbps, 1 Mbps
Terminator: 120 ohms, software configurable
Signals: CAN_H, CAN_L, GND, Ext_CAN_H, Ext_CAN_L, CAN_Shield
Industrial Protocols: CANopen master, J1939
Mode: Master
Max No. of Nodes: 64
Max No. of Receive PDOs: 256
Max No. of Transmit PDOs: 256
SDOs: Supported
Input Data Size: 2048 bytes
Output Data Size: 2048 bytes
Max. No. of Commands: 256
Input Data Size: 2048 bytes
Output Data Size: 2048 bytes
Modbus TCP Mode: Server
Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Client Connections: 16
Total Input Data Size: 2048 bytes
Total Output Data Size: 2048 bytes
MicroSD Slot: Up to 32 GB (SD 2.0 compatible)
Input Voltage: 12 to 48 VDC
Input Current: 455 mA (max)
Power Connector: Spring-type Euroblock terminal
Housing: Metal
IP Rating: IP30
Dimensions: 25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)
Weight: 294 g (0.65 lb)
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Safety: EN 61010-2-201, UL 61010-2-201
EMC: EN 61000-6-2/-6-4
EMI: FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD - Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS - 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT - Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge - Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS - 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF
Freefall: IEC 60068-2-31
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6, IEC 60068-2-64
MTBF: 1,408,984 hrs
