Moxa

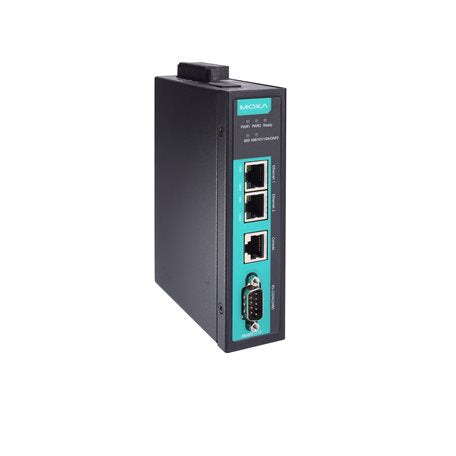

MOXA MGATE 5119-T INDUSTRIAL ETHERNET GATEWAY

MOXA MGATE 5119-T INDUSTRIAL ETHERNET GATEWAY

Regular price $1,285.00 CAD
Regular price Sale price $1,285.00 CAD
Sale Sold out

Features and Benefits

  • DNP3/IEC 101/IEC 104/Modbus-to-IEC 61850 gateway
  • 2 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 port
  • 12 to 48 VDC input power
  • Metal body
  • -40 to 75°C operating temperature
  • Serial port with 2 kV isolation protection
  • Supports IEC 61850 MMS and DNP3 TCP protocol encryption
  • Security features based on IEC 62443/NERC CIP
  • Compliant with IEC 61850-3 and IEEE 1613
  • Built-in SCL file generator for easy configuration
View full details

Description

Introduction

The MGate 5119 is an industrial Ethernet gateway with 2 Ethernet ports and 1 RS-232/422/485 serial port. To integrate Modbus, IEC 60870-5-101, and IEC 60870-5-104 devices with an IEC 61850 MMS network, use the MGate 5119 as a Modbus master/client, IEC 60870-5-101/104 master, and DNP3 serial/TCP master to collect and exchange data with IEC 61850 MMS systems.

Easy Configuration via SCL Generator

The MGate 5119 as an IEC 61850 MMS server, typically, requires the import of a SCL file generated by a 3rd party tool. This can be time-consuming and increase costs. To overcome this pain point, MGate 5119 has a built-in SCL generator, which can easily generate SCL files through the web console and make them available almost immediately saving configuration time and cost.

Easy Troubleshooting via Traffic Monitor

MGate 5119 Series gateways support Modbus RTU/ASCII/TCP, IEC 60870-5-101, IEC 60870-5-104, and IEC 61850 MMS Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. It is worth mentioning that traffic logs can be viewed in the popular troubleshooting tool, Wireshark. With this feature, you can easily analyze traffic to determine the root cause of a problem.

You can buy the MOXA MGate 5119-T Industrial Ethernet Gateway, which is applicable in Power Utility industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Specification

Number of Ports: 2 x 10/100BaseT(X) Ports (RJ45 connector)
Speed: 10/100 Mbps, Auto MDI/MDIX
Connector: RJ45
Magnetic Isolation Protection: 1.5 kV (built-in)
Protocols: Modbus TCP Client (Master), IEC 60870-5-104 Client, IEC 61850 MMS Server, DNP3 TCP Master
Flow Control: RTS Toggle (RS-232 only), RTS/CTS
RS-232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Signals: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals: Tx+, Tx-, Rx+, Rx-, GND
Data Bits: 7, 8
Stop Bits: 1, 2
Parity: Even, Mark, None, Odd, Space
Baudrate: 50 bps to 921.6 kbps
Configuration Options: Web Console (HTTP/HTTPS)
Utility: Device Search Utility (DSU)
Support: -
Network Protocols: Modbus RTU/ASCII Master, IEC 60870-5-101 Master (Balanced/Unbalanced), DNP3 Serial Master
Input Voltage: 12 to 48 VDC
Power Connector: Screw-fastened Euroblock terminal
Dimensions: 36 x 120 x 150 mm (1.42 x 4.72 x 5.91 in)
Housing: Metal
Operating Temperature: -40 to 75°C (-40 to 167°F)
Weight: 517 g (1.14 lb)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Vibration: IEC 60068-2-6, IEC 60068-2-64, IEC 61850-3 Edition 2.0
Shock: IEC 60068-2-27
Drop: -
Safety: EN 60950-1, IEC 60950-1, IEC 62368-1, UL 60950-1, EN 62368-1, UL 62368-1
Hazardous Location: -
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V/m IEC 61000-4-8 PFMF: 100 A/m
Storage Card Slot: Up to 32 GB (SD 2.0 compatible)
