Moxa

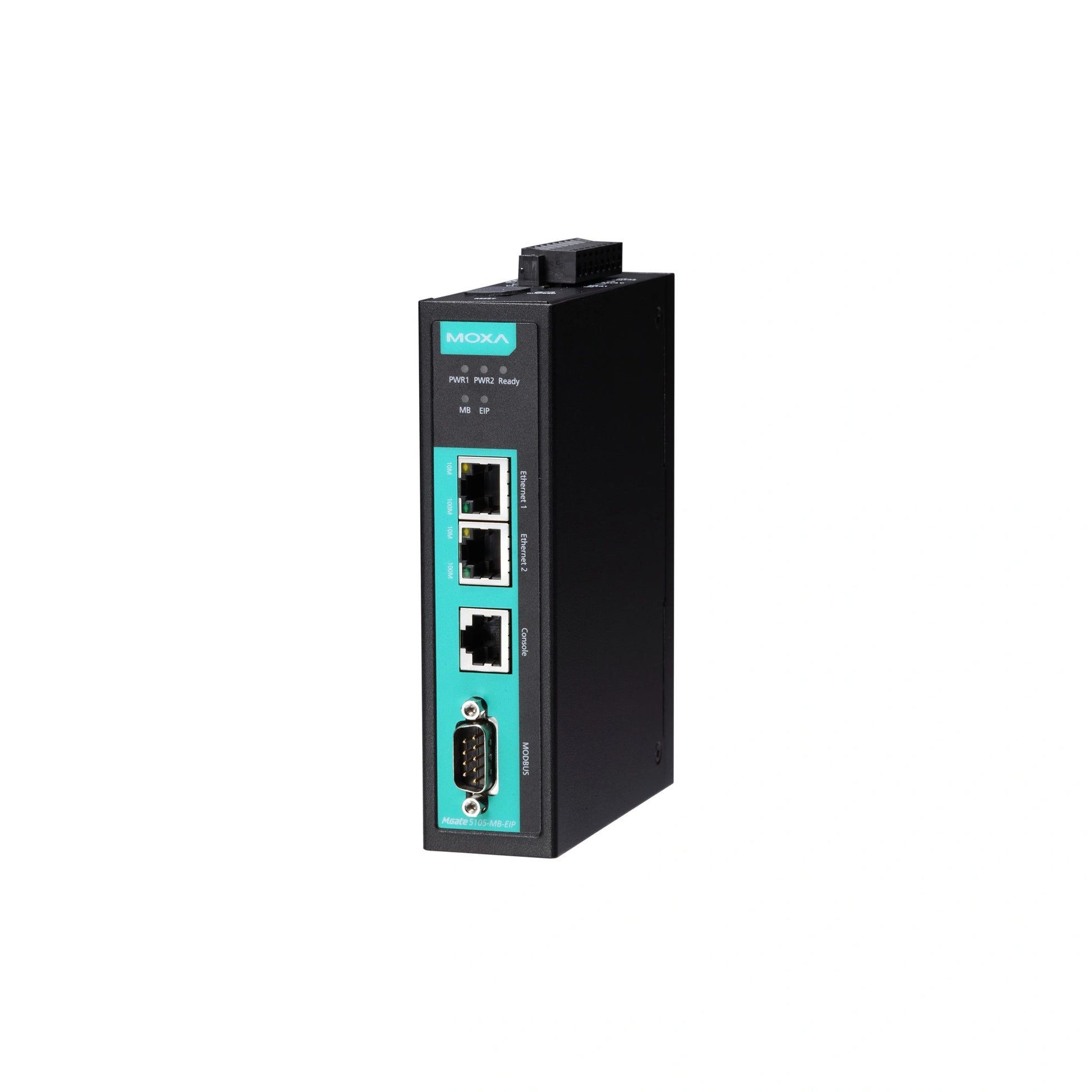

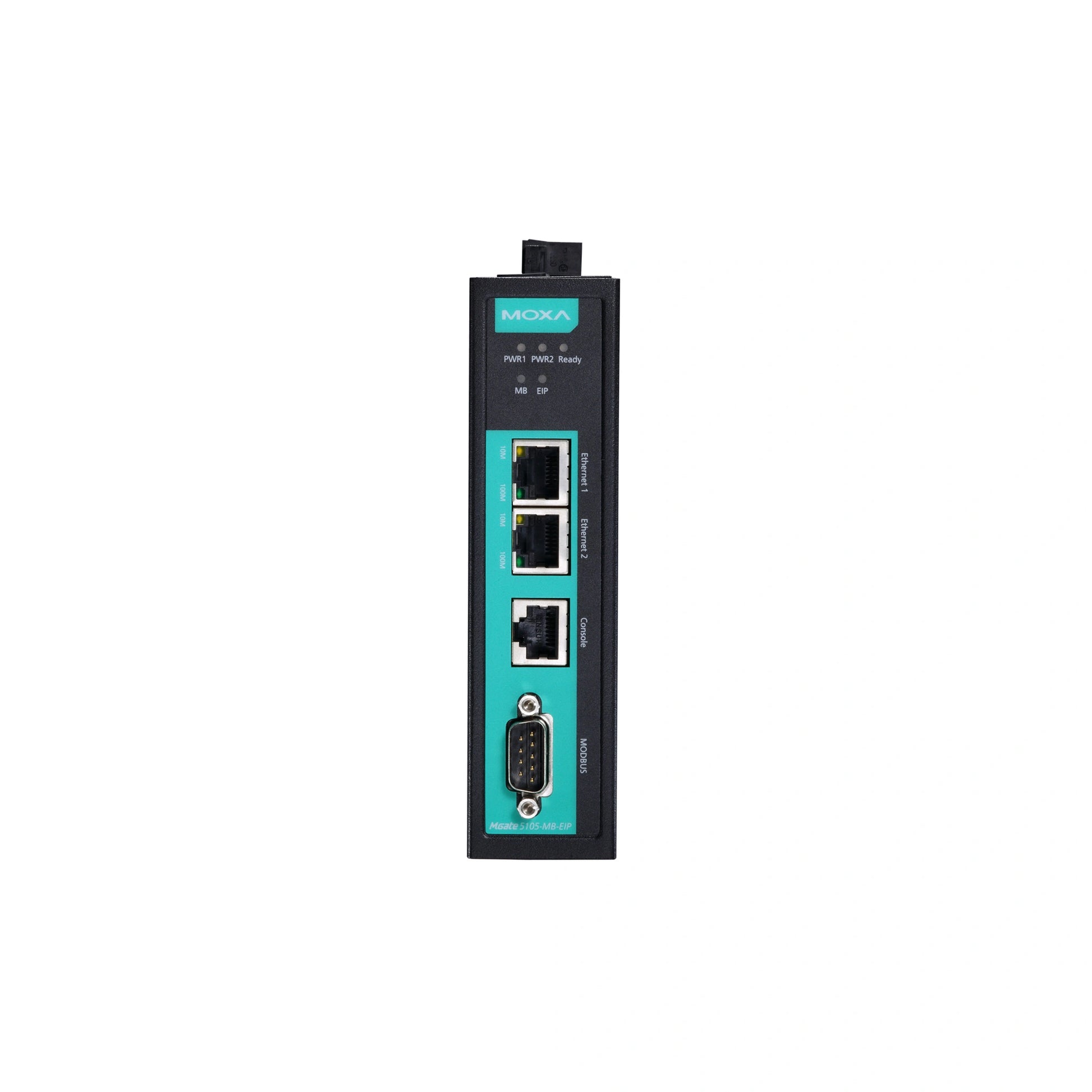

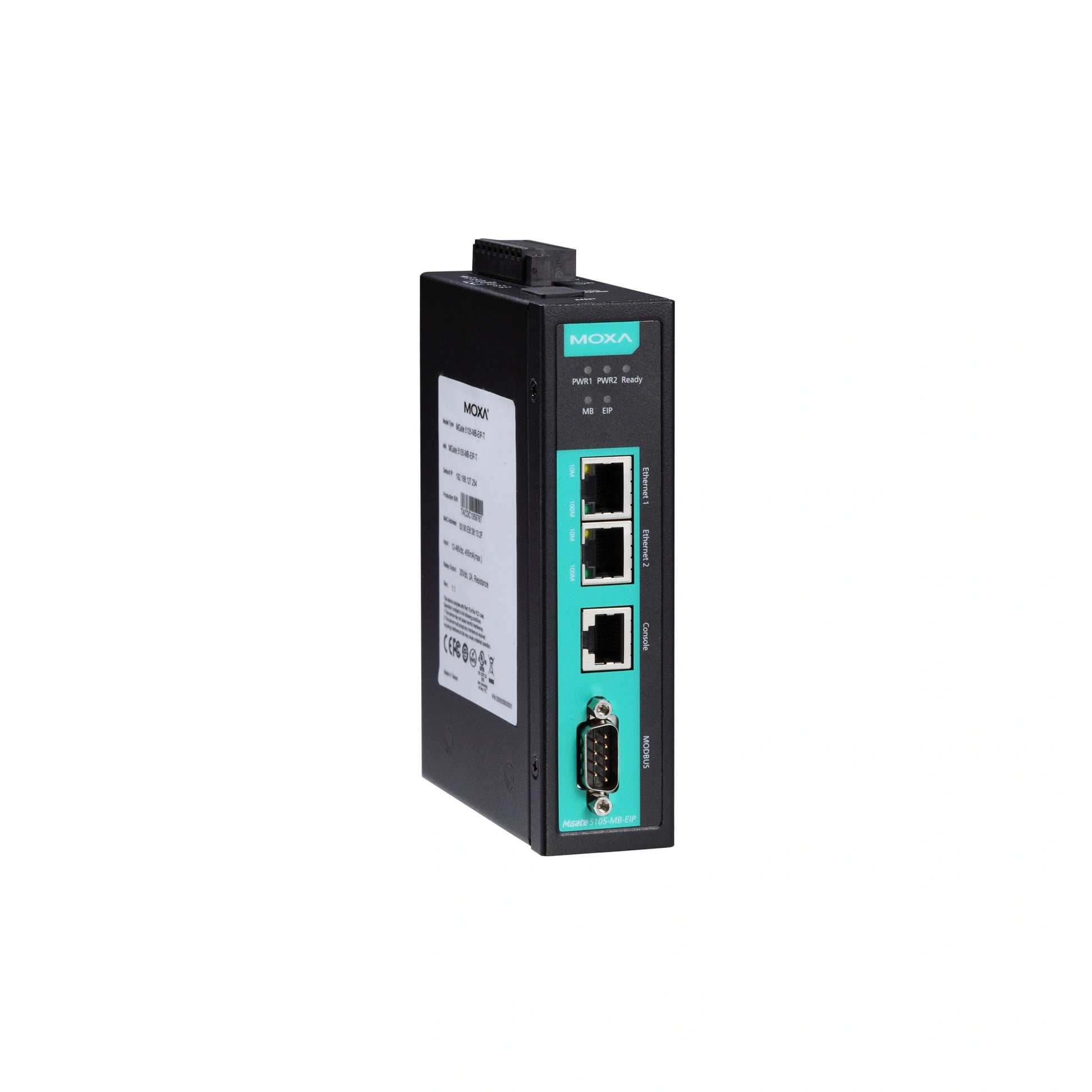

MOXA MGATE 5105-MB-EIP INDUSTRIAL ETHERNET GATEWAY

MOXA MGATE 5105-MB-EIP INDUSTRIAL ETHERNET GATEWAY

Regular price $836.00 CAD
Regular price Sale price $836.00 CAD
Sale Sold out

MOXA MGATE 5105-MB-EIP

Features and Benefits

  • Modbus RTU/ASCII/TCP to EtherNet/IP gateway
  • 2 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 port
  • 12 to 48 VDC input power
  • Metal body
  • 0 to 60°C operating temperature
View full details

Description

The MGate 5105-MB-EIP is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and EtherNet/IP network communications. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5105-MB-EIP as a Modbus master or slave to collect data and exchange data with EtherNet/IP devices. The latest exchange data will be stored in the gateway as well. The gateway converts stored Modbus data into EtherNet/IP packets so the EtherNet/IP scanner can control or monitor Modbus devices.

Also, it is equipped with a microSD card slot. A microSD card can be used to back up both the system configuration and system log and can be used to conveniently copy the same configuration to several MGate 5105-MP-EIP units. The configuration file stored in the microSD card will be copied to the MGate itself when the system is rebooted.

This device also provides a web console to make configuration easy without having to install an extra utility. Simply log in as an administrator to access all settings or as a general user with read-only permission. Besides configuring basic protocol settings, you can use the web console to monitor I/O data values and transfers. In particular, I/O Data Mapping shows data addresses for both protocols in the gateway’s memory, and I/O Data View allows you to track data values for online nodes. Moreover, diagnostics and communication analysis for each protocol can also provide helpful information for troubleshooting.

The MGate 5105-MB-EIP has dual power inputs for greater reliability. The power inputs allow simultaneous connection to 2 live DC power sources so that continuous operation is provided even if one power source fails. The higher level of reliability makes these advanced Modbus-to-EtherNet/ IP gateways ideal for demanding industrial applications.

Specification

10/100Mb RJ45 (Megabit) Ports: Yes : 2 Ports (1IP, Ethernet cascade)
RS-232 Ports: No
RS-422/485 Ports: No
RS-232/422/485 Ports: Yes : 1 Port
Other ports: 1 Console port
Serial Communication Parameters: Data Bits: 7, 8 Stop Bits: 1, 2 Parity: None, Even, Odd, Space, Mark
Flow Control: Flow Control: RTS/CTS, RTS Toggle (RS-232 only)
Data transfer speed ( Baudrate ): 0.05Kbps to 921.6Kbps
RS-485 Flow Control: ADDC
Protection against electrostatic discharge: No
Electrical isolation: 2KV
Ethernet Protocol: EtherNet/IP, Modbus/TCP
Serial Protocol: Modbus RTU/ASCII Master/Slave
Management: Web Console, Windows Utility, Serial Console
Supported software: MXview, SNMP (v1, v2, v3), Private MIB
Compatible operating systems: MGate Manager for Windows 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2
Power Consumption (Output Adapter): 12V DC to 48V DC
Type of power input: Power terminal
Dimensions: 36x105x140mm
Standards and Certifications: Safety: UL 508; EN 60950-1, Hazardous Location: Class 1 Division 2; ATEX; IECEx, EMC: EN 55032/24, EMI: CISPR 32; FCC Part 15B Class B, EMS: IEC 61000-4-2, ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m, IEC 61000-4-8 PFMF , IP30
Housing: Metal
Operating Temperature: 0 to 60 ° C
Storage Temperature: -40 to 85 ° C
Operation Humidity: 5% to %95 Non-condensing
Altitude: -
