Moxa

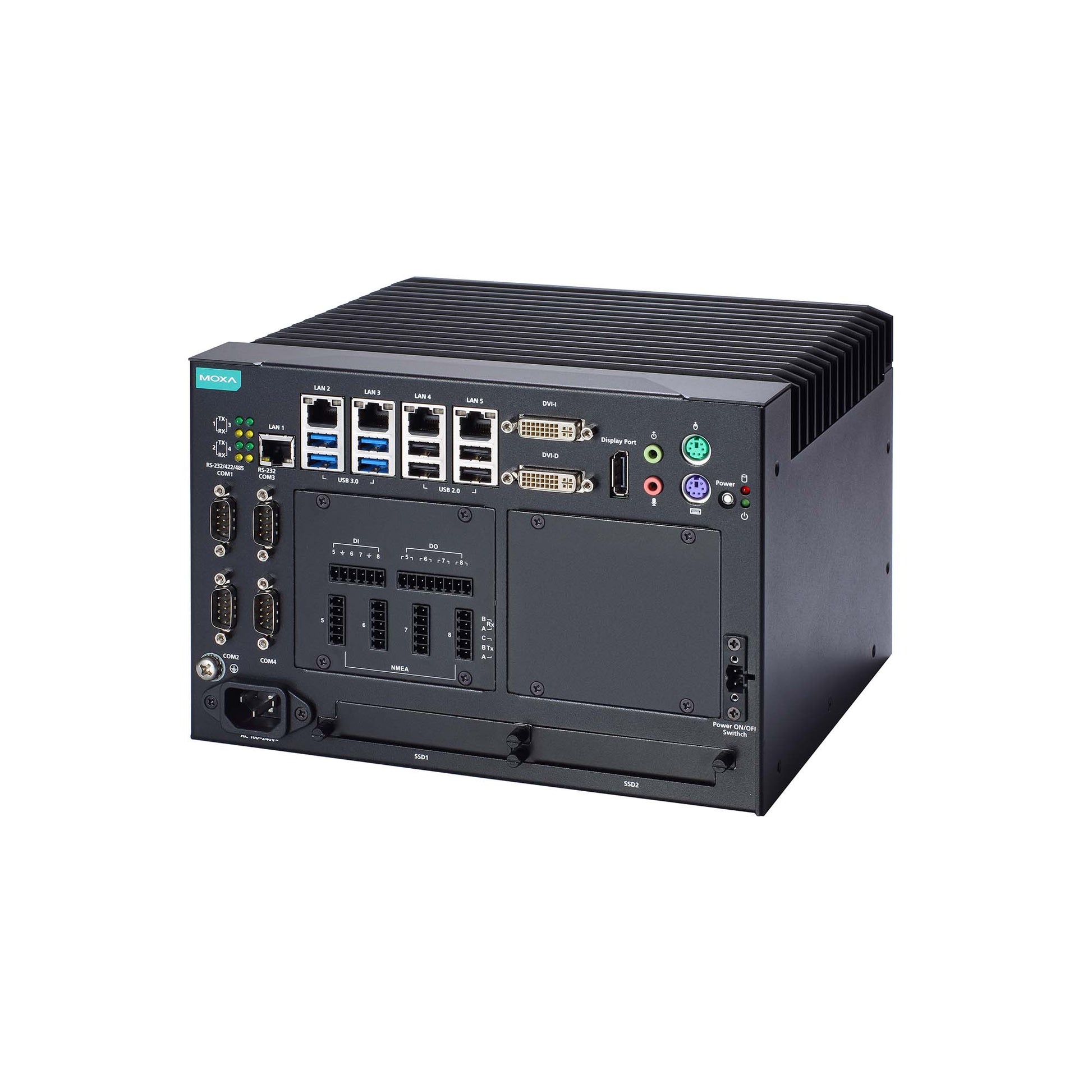

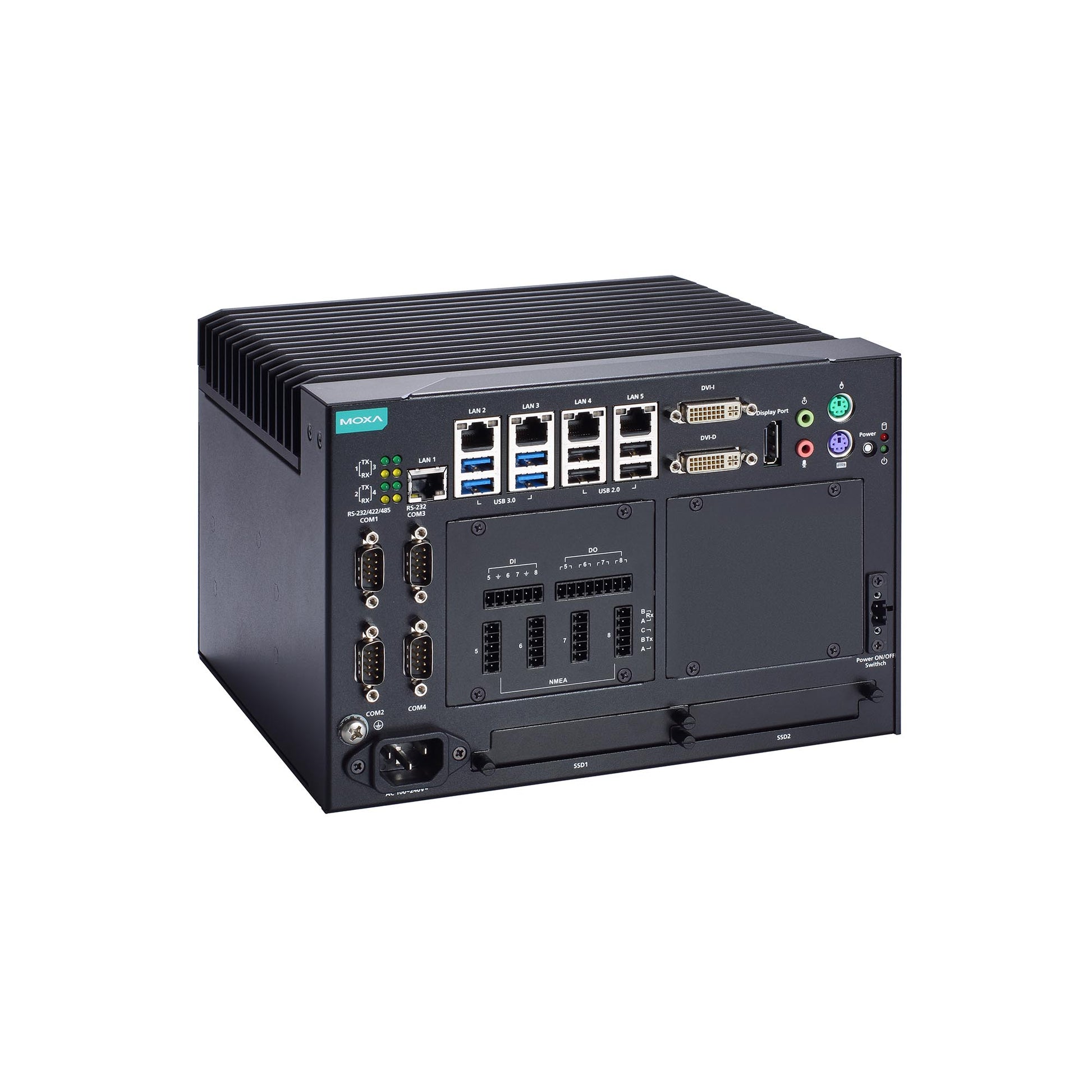

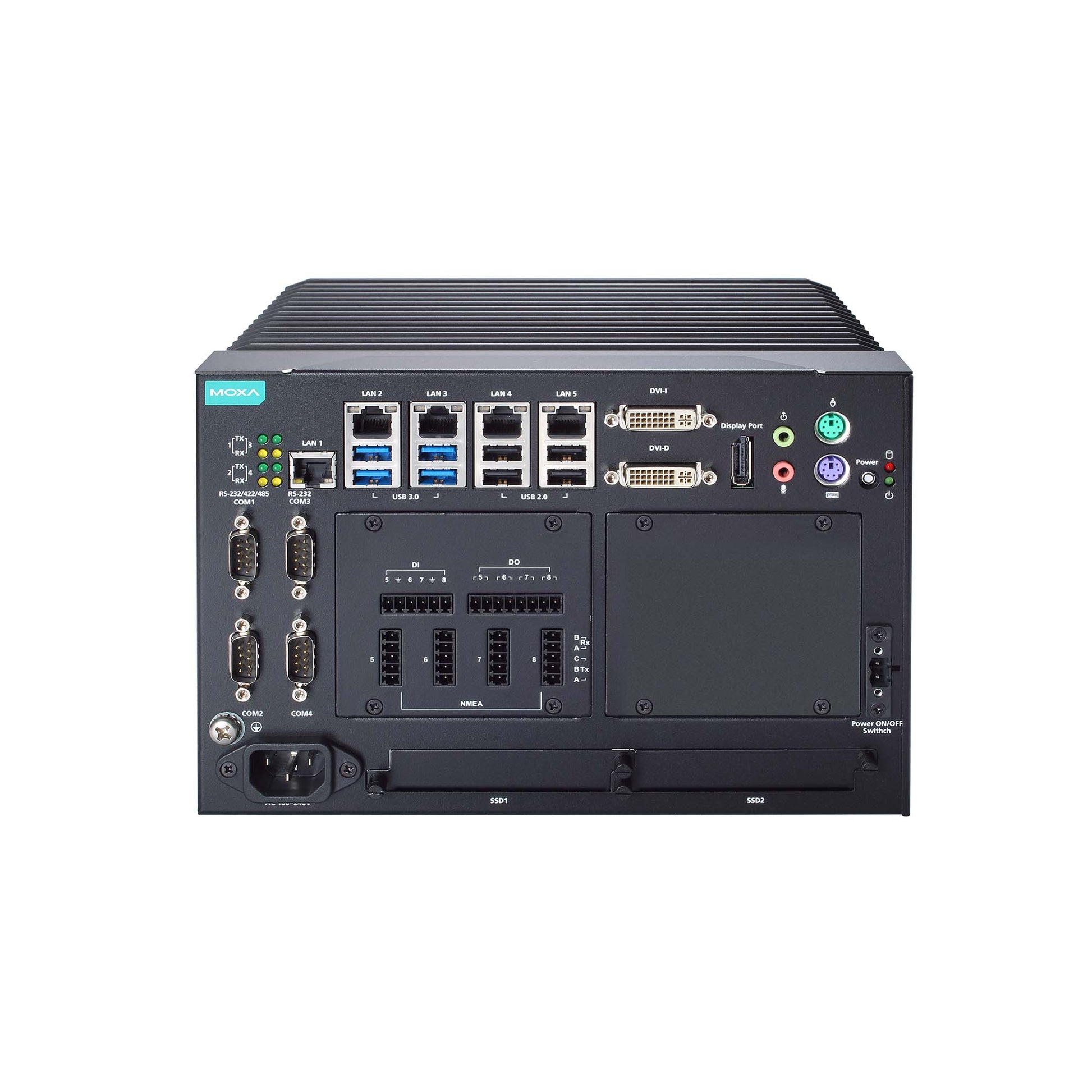

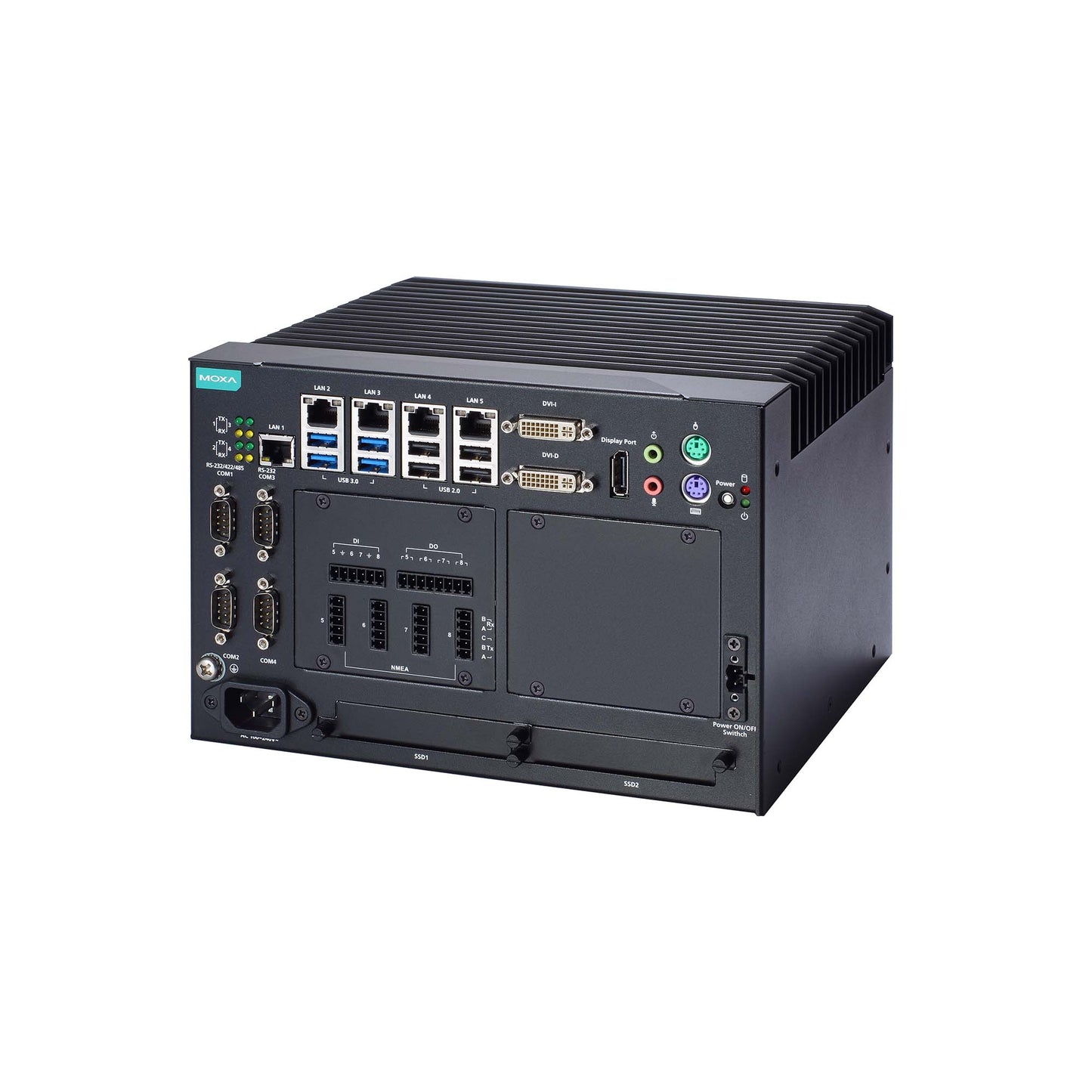

MOXA MC-7420-C1-AC Wide Temperature Computer

MOXA MC-7420-C1-AC Wide Temperature Computer

$4,274.00 CAD
$4,274.00 CAD
Sale Out of Stock

Features and Benefits

  • CPU: Intel® Celeron® Processor G3902E
  • 5 x 10/100/1000 Mbps Ethernet ports
  • 2 x RS-232 and 2 x RS-232/422/485 Serial ports
  • 4 x DIs and 4 x DOs, 4 x NMEA Ports
  • Metal body design
  • 100 to 240 VAC input power range
  • -20 to 55°C operating temperature range
View full details

Description

Introduction
The MC-7400 Series marine computers are powered by the 6th generation Intel® Core™ i5/i7 processor, delivering a full range of I/O connectivity, including NMEA 0183 ports, serial ports, Gigabit Ethernet ports, as well as USB 2.0/3.0 ports and a miniPCI slot for extensions. The MC-7400 is designed to provide outstanding PC performance, bringing a new level of flexibility and control to marine applications.

Proactive Monitoring Function
Moxa Proactive Monitoring is a small, resource-friendly, easy-to-use utility that allows users to track a number of system parameters. Users can view the current parameter values for these key parts by simply clicking on the icons corresponding to the parameters in the user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relay and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.

Data sheet

Specification

Industrial Computer: Computer
CPU: Intel® Celeron® Processor G3902E (2M Cache, 1.60 GHz)
DRAM: -
OS (pre-installed): Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA, Linux Debian 9
System Memory: SODIMM DDR4 slot x 2
USB: USB 2.0 hosts x 5, type-A connectors, USB 3.0 hosts x 4, type-A connectors
Storage: 2.5" HDD/SSD slots x 2

Industrial Computer: Interface
Console Port: -
LAN: -
Magnetic Isolation Protection: No
Serial Standards: RS-232/422/485
Serial Ports: RS-232 ports x 2 (DB9 male), RS-232/422/485 ports x 2, software selectable (DB9 male)

Industrial Computer: Display
Graphics Controller: Intel® HD Graphics 510
Display Interface: -

Industrial Computer: Digital Input
Input Channels: Yes, 4 DIs

Industrial Computer: Digital Output
Output Channels: Yes, 4 DOs
Output Voltage: -
Output Clamping Current: -

Industrial Computer: Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
Baudrate: 50 bps to 115.2 kbps

Industrial Computer: Serial Signals
RS-232: -
RS-422: -
RS-485-4w: -
RS-485-2w: -

Industrial Computer: LED Indicators
System: Power x 1, Storage x 1
LAN: 2 per port (10/100/1000 Mbps)
Serial: 2 per port (Tx, Rx)

Industrial Computer: Power Requirements
Input Voltage: 100 to 240 VAC
Input Current: -
Power Consumption: 100 W

Industrial Computer: General
Alert Tools: -
Automatic Reboot Trigger: Built-in WDT
MTBF: -
Storage Expansion: -

Industrial Computer: Physical Characteristics
Dimensions: 240 x 209 x 160 mm (9.45 x 8.23 x 6.3 in), with ears
Housing: Metal
Operating Temperature: -25 to 55°C (-13 to 131°F)
Storage Temperature: -30 to 60°C (-22 to 140°F)
Relative Humidity: 5 to 95% (non-condensing)
EMC: EN 55032/24
Weight: 6000 g (13.23 lb)
Anti-Vibration: -
Safety: CE, IEC 62368-1, UL 60950-1
Green Product: RoHS, CRoHS, WEEE
Anti-Shock: -
EMI: CISPR 22, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV, Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV, Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV, Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
Mounting: wall-mounting kit
