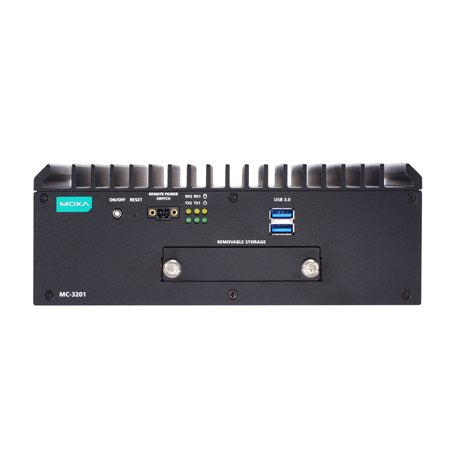

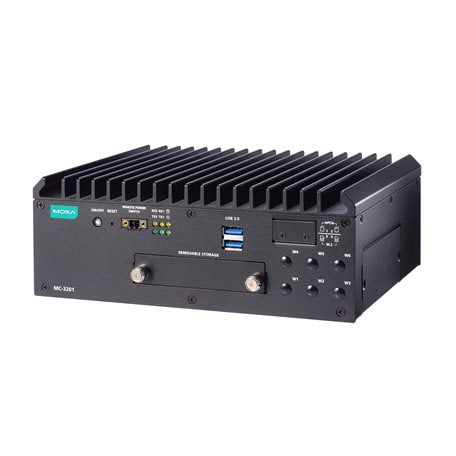

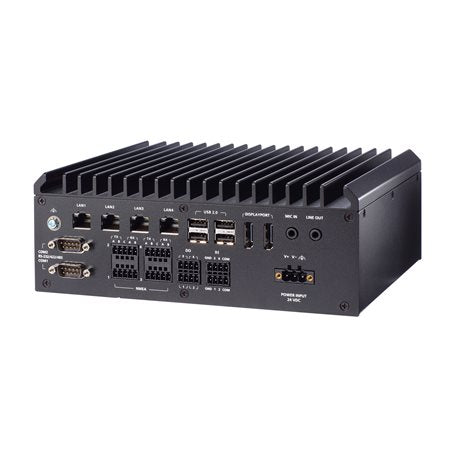

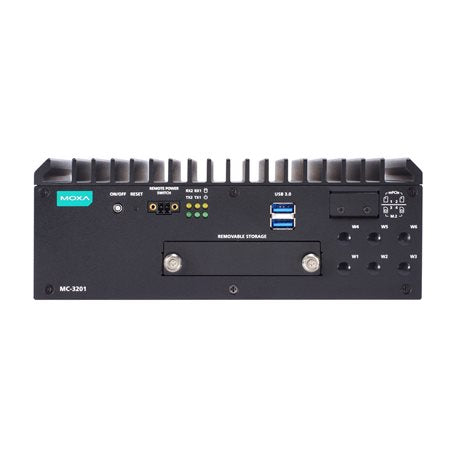

MOXA MC-3201-TGL7-M-S Wide Temperature Computer

MOXA MC-3201-TGL7-M-S Wide Temperature Computer

$4,462.00 CAD
$4,462.00 CAD
Sale Out of Stock

Features and Benefits

  • CPU: Intel® Core™ i7-1185G7E
  • 4 x 10/100/1000 Mbps Ethernet ports
  • 2 x RS-232/422/485 Serial ports
  • Metal body design
  • 24 VDC input power range
  • Wallmount installation design
  • -20 to 55°C operating temperature range
View full details

Description

Introduction
The MC-3201 Series computers are built around an 11th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 2 DisplayPort interfaces, 2 USB 3.1 ports, 4 GbE ports, and 2 3-in-1 RS-232/422/485 serial ports. The computers are also equipped with a 2.5-inch SSD/HDD slot and a built-in TPM 2.0 module.

Additional value and convenience are provided through a modular design with two independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including Wi-Fi, 5G, LTE, GPS, and M.2 SATA SSD expansion modules.

Compliance with the IEC-60945 and IACS E10 standards ensures the MC-3201 delivers stable and reliable system operations for marine and IIoT applications. These certifications are issued to indicate the suitability of the product for use in marine applications.

Data sheet

Specification

CPU: Intel® Core™ i7-1185G7E processor (12M Cache, up to 1.8 GHz)

Graphics Controller: Intel® Iris® Xe Graphics

System Memory Pre-installed: 8 GB DDR4
System Memory Slot: SODIMM DDR4 2133 slots x 2, up to 32 GB max.

Supported OS: Windows 10 IoT Enterprise LTSC 2021
Driver Support: Linux Debian 11 (kernel 5.10), 64-bit

Storage Slot: 2.5-inch HDD/SSD slots x 1

Computer Interface
Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
Digital Input: M-S models: DIs x 4
Digital Output: M-S models: DOs x 4
USB 3.0: USB 3.0 hosts x 2, type-A connectors
USB 2.0: USB 2.0 hosts x 4, type-A connectors
Video Output: DisplayPort x 2, up to 3840 x 2160 resolution at 60 Hz
Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
Buttons: Reset button, Power button
TPM: TPM v2.0

Ethernet Interface
Magnetic Isolation Protection: 1.5 kV (built-in)
10/100/1000BaseT(X) Ports (RJ45 connector): 4

Serial Interface
Baudrate: 50 bps to 115.2 kbps
Connector: DB9 male
Data Bits: 5, 6, 7, 8
Flow Control: RTS/CTS, XON/XOFF
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 1.5, 2
ESD Protection: 4 kV contact, 8 kV air

Serial Signals
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-485-2w: Data+, Data-, GND

LED Indicators
System: Power x 1, Storage x 1
Serial: 2 per port (Tx, Rx)
LAN: 2 per port (10/100/1000 Mbps)

Physical Characteristics
Dimensions: 220 x 80 x 170 mm (8.66 x 3.15 x 6.69 in)
Weight: 3,000 g (6.61 lb)
Housing: Metal
Installation: Wall mounting

Power Parameters
Input Voltage: M-S models: 24 VDC, S-S models: 9 to 36 VDC

Environmental Limits
Operating Temperature: -20 to 55°C (-4 to 131°F)
Storage Temperature: -30 to 60°C (-22 to 140°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS:IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

Safety: UL 62368-1, EN 62368-1, IEC 62368-1, IEC 60950-1
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-64
Maritime:

MC-3201-TGL3/5/7-M-S: DNV, IEC 60945, IACS E10

Other M-S Models: IEC 60945, IACS E10
Green Product: RoHS, CRoHS, WEEE

MTBF
Time: 323,270 hrs
Standards: Telcordia (Bellcore) Standard TR/SR

Warranty
Warranty Period: 3 years
