Moxa

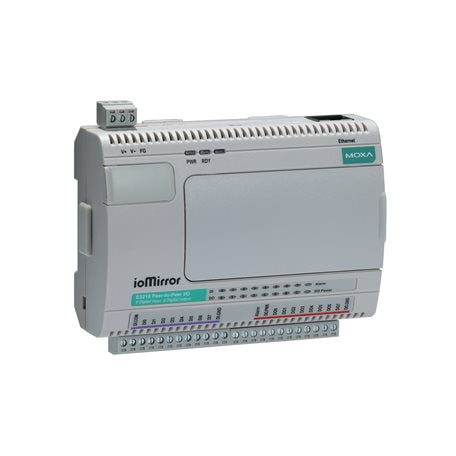

MOXA IOMIRROR E3210 ETHERNET PEER-TO-PEER I/O

MOXA IOMIRROR E3210 ETHERNET PEER-TO-PEER I/O

Regular price $683.00 CAD
Regular price Sale price $683.00 CAD
Sale Sold out

Features and Benefits

  • 8 x DI, 8 x DO
  • 1 x RS-485 serial ports
  • 12 to 48 VDC power input
  • Plastic body
  • -10 to 60°C operating temperature
View full details

Description

The ioMirror E3200 Series, which is designed as a cable-replacement solution to connect remote digital input signals to output signals over an IP network, provides 8 digital input channels, 8 digital output channels, and a 10/100M Ethernet interface. Up to 8 pairs of digital input and output signals can be exchanged over Ethernet with another ioMirror E3200 Series device, or can be sent to a local PLC or DCS controller. Over a local area network, the ioMirror can achieve a low signal latency (typically less than 20 ms). With the ioMirror, remote sensors can be connected to local controllers or display panels over copper, fiber, or wireless Ethernet infrastructures, and signals can be transmitted over virtually unlimited distances, without noise problems.

Specification

Digital Input and Output: Yes, 8 digital inputs and 8 digital outputs
Adjustable Digital Input and Output: No
Analog Input and Output: No
Relay Output: No
Thermal Sensor Input (RTD): No
Thermocouple Input: No
LAN: Yes, 1 RJ-45 10/100Mbps port
Serial Port: No
Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, HTTP, SNTP
Compatible Software: -
Standards and Certifications: UL 508, FCC Part 15, Subpart B, Class A, EN 55022 Class A, IEC 61000-4, IEC 61000-6, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
Operating Temperature: -10 to 60 °C
Storage Temperature: -40 to 85 °C
Operation Humidity: 5% to 95% Non-condensing
