Moxa

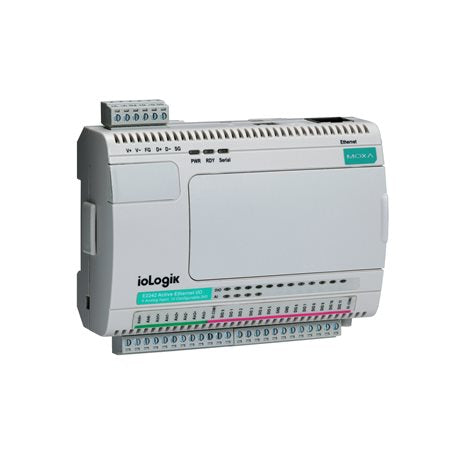

MOXA IOLOGIK E2210 SMART ETHERNET REMOTE I/O

MOXA IOLOGIK E2210 SMART ETHERNET REMOTE I/O
$583.00 CAD
$583.00 CAD
Special Offer Out of Stock
We have 6 in stock

Features and Benefits

  • 12 x DI, 8 x DO
  • 1 x RS-485 serial ports
  • 12 to 36 VDC power input
  • -10 to 60°C operating temperature
View full details

Description

Data sheet

Specification

Digital Input and Output: 12 digital inputs and 8 digital outputs
LAN: 1 RJ-45 10/100Mbps port
Serial port: 1 RS-485 terminal connection
Protocols: Modbus/TCP (slave), TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP
Standards and Certifications: Safety: UL 508; EMC:EN 61000-6-2/6-4, EMI: CISPR 22, FCC Part 15B Class A; EMS: IEC 61000-4-2; ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS:80 MHz to 1 GHz: 10 V/m1.4 GHz to 2 GHz: 3 V/m2 GHz to 2.7 GHz: 1 V/mIEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kVIEC 61000-4-5 Surge: Power: 1 kVIEC 61000-4-6 CS: 10 VIEC 61000-4-8; Green Product: RoHS, CRoHS, WEEE
Operating Temperature: -10 to 60 ° C
Storage Temperature: -40 to 85 ° C
Operation Humidity: 5% to %95 Non-condensing
