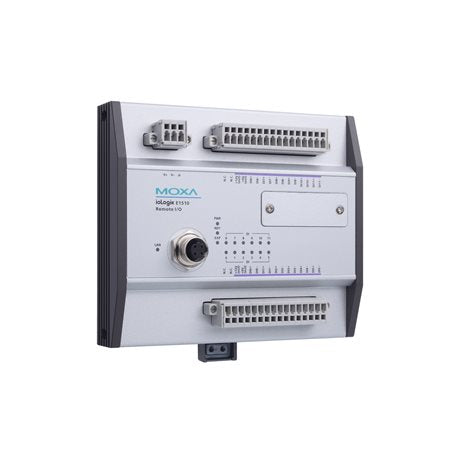

MOXA ioLogik E1510-M12-T Smart Ethernet Remote I/O

MOXA ioLogik E1510-M12-T Smart Ethernet Remote I/O

$1,471.00 CAD
$1,471.00 CAD
Sale Sold out

Features and Benefits

  • 12 x DI
  • 1 x 10/100BaseT(X) Port (M12 D-coded 4-pin female connector)
  • 12 to 48 VDC power input
  • Aluminum body
  • -40 to 85°C operating temperature
  • User-definable Modbus TCP Slave addressing
  • Active communication with MX-AOPC UA Server
  • Easy mass deployment and configuration with ioSearch utility
  • Friendly configuration via a web browser
  • Simplifies I/O management with MXIO library for Windows or Linux
  • Compliant with EN 50121-3-2, EN 50121-4, and a portion of EN 50155 specifications
View full details

Description

Introduction
The ioLogik E1500 Series Ethernet Remote I/O devices have a ruggedized aluminum housing, and are compliant with EN 50121-3-2, EN 50121-4, and essential sections of EN 50155 standard, which are essential for electronic equipment used in rolling stock applications. This rugged platform also features a wide operating temperature range of -40 to 85°C to deliver consistent performance even in harsh environments.

Ruggedly Designed for Monitoring Rolling Stock
The ioLogik E1500 Series Ethernet remote I/O devices have a durable aluminum housing and are compliant with EN 50121-4 and a portion of EN 50155 specifications required for electronic equipment used in railway applications. The ioLogik E1500 design strictly conforms to EN standards, including not only EMC requirements but also with regards to shock, vibration, extended temperature range, humidity, and power supply variations.

Channel-to-Channel Isolation
With this topology, I/O channels on the ioLogik E1500 are individually isolated from one another to ensure that data communication is highly stable. For example, a lightning strike that affects one channel will not affect devices connected to other channels on the same ioLogik E1500.

Application: Enhanced Efficiency for Remote Monitoring on Rolling Stock
The railway I/O module is an EN 50155/50121 remote Ethernet I/O device for use on rolling stock. It features an anti-vibration design, channel isolation, and operates reliably in temperatures ranging from -40 to 85°C, making it the ideal solution for data acquisition on rolling stock. Capable of both monitoring system status and triggering I/O events, this railway I/O is a great choice for simultaneously enhancing system reliability and maintaining efficiency in rolling stock environments.

Data sheet

Specification

Input_Output_Interface:
Digital_Input_Channels:
ioLogik_E1510_M12_T_M12_CT_T: 12
ioLogik_E1512_M12_T_M12_CT_T: 4
Configurable_DIO_Channels_by_software:
ioLogik_E1512_M12_T_M12_CT_T: 4
Isolation: 3k VDC or 2k Vrms
Buttons:
Reset_button: true
Digital_Inputs:
Connector:
Spring_type_Euroblock_terminal: true
Counter_Frequency: 250 Hz
Digital_Filtering_Time_Interval: Software configurable
Dry_Contact:
On: short to GND
Off: open
I_O_Mode:
DI_or_event_counter: true
Points_per_COM:
ioLogik_E1512_M12_T_M12_CT_T: 2 channels
Sensor_Type:
Dry_contact: true
Wet_contact_NPN_or_PNP: true
Wet_Contact_DI_to_GND:
On: 10 to 30 VDC
Off: 0 to 3 VDC
Digital_Outputs:
Connector:
ioLogik_E1512_M12_T_M12_CT_T: Spring-type Euroblock terminal
Current_Rating: 200 mA per channel
I_O_Mode:
DO_or_pulse_output: true
I_O_Type:
Sink: true
Over_Current_Protection: 0.65 A per channel @ 25°C
Over_Temperature_Shutdown:
Typical: 175°C
Min: 150°C
Over_Voltage_Protection: 35 VDC
Pulse_Output_Frequency: 500 Hz
Ethernet_Interface:
10_100BaseT_X_Ports_M12_D_coded_4_pin_female_connector:
Count: 1
Magnetic_Isolation_Protection: 1.5 kV (built-in)
Ethernet_Software_Features:
Configuration_Options:
Web_Console_HTTP: true
Windows_Utility_ioSearch: true
Industrial_Protocols:
Modbus_TCP_Server_Slave: true
Moxa_AOPC_Active_Tag: true
MXIO_Library: true
Management:
BOOTP: true
DHCP_Client: true
HTTP: true
IPv4: true
TCP_IP: true
UDP: true
LED_Interface:
LED_Indicators:
ioLogik_E1510_M12_T_M12_CT_T:
PWR: true
RDY: true
EXP: true
LAN: true
DI_Channels: true
ioLogik_E1512_M12_T_M12_CT_T:
PWR: true
RDY: true
EXP: true
LAN: true
DI_Channels: true
DO_Channels: true
Modbus_TCP:
Mode:
Server_Slave: true
Functions_Supported:
1: true
2: true
3: true
4: true
5: true
6: true
15: true
16: true
Power_Parameters:
Power_Connector:
Spring_type_Euroblock_terminal: true
No_of_Power_Inputs: 1
Input_Voltage: 12 to 48 VDC
Power_Consumption: 150 mA @ 24 VDC
Physical_Characteristics:
Housing: Aluminum
Dimensions:
Length: 144 mm
Width: 124 mm
Height: 30 mm
Weight:
Product_Only: 825 g
Installation:
DIN_rail_mounting: true
Wall_mounting_with_optional_kit: true
Wiring:
IO_cable_16_to_26_AWG: true
Power_cable_16_to_26_AWG: true
Environmental_Limits:
Operating_Temperature:
Min: -40°C
Max: 85°C
Storage_Temperature:
Min: -40°C
Max: 85°C
Ambient_Relative_Humidity:
Min: 5%
Max: 95%
Non_Condensing: true
Altitude: 2000 m
Standards_and_Certifications:
EMC:
EN_61000_6_2_6_4: true
EMI:
CISPR_32: true
FCC_Part_15B_Class_A: true
EMS:
IEC_61000_4_2_ESD:
Contact: 8 kV
Air: 15 kV
IEC_61000_4_3_RS:
Frequency_Range: 80 MHz to 1 GHz
Field_Strength: 10 V/m
IEC_61000_4_4_EFT:
Power: 2 kV
Signal: 2 kV
IEC_61000_4_5_Surge:
Power: 2 kV
Signal: 2 kV
IEC_61000_4_6_CS:
Field_Strength: 10 V
IEC_61000_4_8_PFMF: true
Railway:
EN_50121_4: true
EN_50155: true
Safety:
UL_508: true
Shock:
IEC_60068_2_27: true
Vibration:
IEC_60068_2_6: true
Declaration:
Green_Product:
RoHS: true
CRoHS: true
WEEE: true
MTBF:
Time:
ioLogik_E1510_M12_T_M12_CT_T: 507,064 hrs
ioLogik_E1512_M12_T_M12_CT_T: 554,122 hrs
Standards:
Telcordia_SR332: true
Warranty_Period: 5 years
