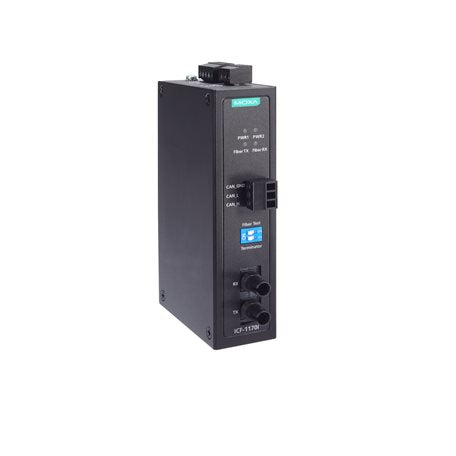

MOXA ICF-1170I-M-ST SERIAL TO FIBER CONVERTER

MOXA ICF-1170I-M-ST SERIAL TO FIBER CONVERTER

$603.00 CAD
$603.00 CAD
Sale Sold out

Features and Benefits

  • RS-232/422/485 to multi-mode fiber optic converter
  • Multi-mode fiber with ST connector for reliable communication
  • Extends communication distance up to 5 km
  • Supports baud rates up to 921.6 kbps for fast data transmission
  • 2.5 kV optical isolation for enhanced protection
  • Integrated surge protection for added reliability
  • Automatic baud rate detection for simplified setup
  • Wide operating temperature range: -40 to 75°C
  • DIN-rail mounting for easy installation
  • Ideal for industrial automation and utility communication systems
View full details

Description

MOXA ICF-1170I Series Introduction
The ICF-1170I Series CAN-to-fiber converters are used to convert CAN signals from copper to optical fiber. The converters come with 2 kV optical isolation for the CAN bus system and dual power inputs with an alarm contact relay to ensure that your CAN bus system will remain online. Fiber Test Mode Fiber Test Mode can be used to test the fiber cable between two ICF-1170I units, and it provides a simple way to determine if the fiber cable is transmitting data correctly. When in Fiber Test Mode, the fiber transceiver (Tx) will continuously send out a data signal and the Fiber Tx LED will light up. On the other side of the connection, when the ICF-1170I fiber transceiver (Rx) receives the data signal from the TX side, the Fiber Rx LED will light up.

You can also find the ICF-1170I-M-ST-T model in the ICF-1170I Series.

Data sheet

Specification

CONVERTER:Converter Specifications
Data Transfer Speed: Up to 1 Mbps
Maximum Data Transmission Distance: 2 km (multi-mode fiber), 40 km (single-mode fiber)
Optical Isolation: 2 kV for CAN bus system
Wavelength: 850 nm (multi-mode), 1310 nm (single-mode)
CONVERTER:Power Requirements
Power Input: 12 to 48 VDC
Power Consumption: Approximately 1.5 W
CONVERTER:Standards and Protocols
CAN Protocols: CAN 2.0A and CAN 2.0B
Fiber Optic Standard: IEEE 802.3u 100Base-FX
CONVERTER:Interface
CAN Ports: 1
Fiber Ports: 1 (ST connector for multi-mode or single-mode fiber)
CONVERTER:General
MTBF: Over 1,000,000 hours
Housing: Metal
Installation: DIN-rail or wall-mounting
CONVERTER:Physical Characteristics
Dimensions: 30 x 70 x 115 mm
Weight: 0.2 kg
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
CONVERTER:LED Indicators
PWR1, PWR2: Power status
CAN: CAN bus status
Fiber: Fiber link status
CONVERTER:Package Checklist
Converter Unit: Yes
Hardware Installation Guide: Yes
Warranty Card: Yes
