Regular price $2,049.00 CAD
Regular price Sale price $2,049.00 CAD
Sale Sold out
We have 38 in stock

Features and Benefits

  • 7 x 10/100Mbps T(x) ports and 3 x Gigabit Combo ports
  • Din-rail
  • Metal body
  • -40 to 75°C operating temperature

View full details

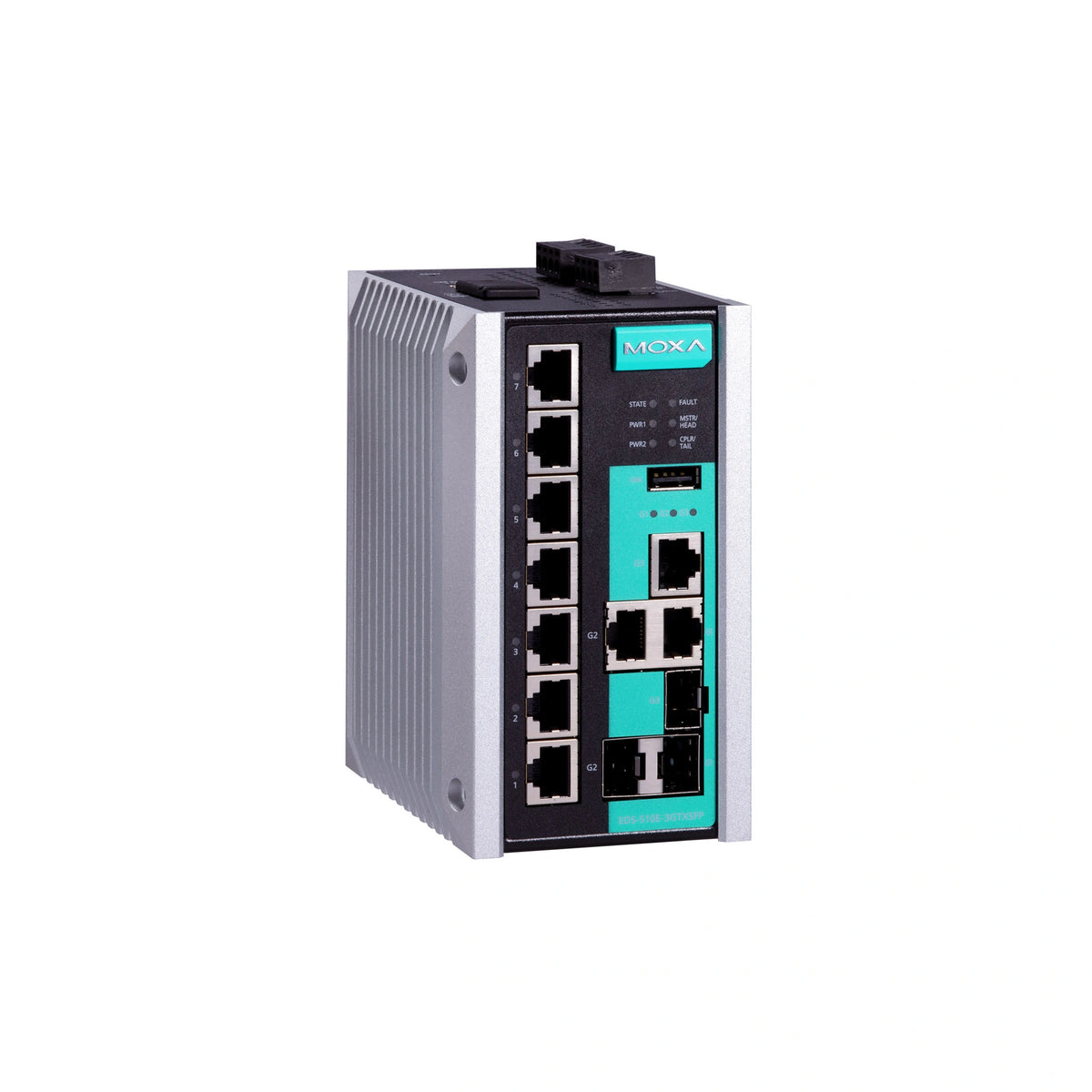

The EDS-510E Gigabit managed Ethernet switches are designed to meet rigorous mission-critical applications, such as factory automation, ITS, and process control. The 3 Gigabit Ethernet ports allow great flexibility to build up a Gigabit redundant Turbo Ring and a Gigabit uplink. The switches have USB interfaces for switch configuration, system file backup, and firmware upgrade, making them easier to manage.

You can also find the EDS-510E-3GTXSFP models in the EDS-510E series.


Number of ports: 10 Ports
10/100Mb RJ45 (Megabit) Ports: Yes: 7 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: Yes: 3 Ports
1000Mb SFP Fiber optic (Gigabit) Ports: Yes: 3 Ports
Backup: Turbo Ring, Turbo Chain, Automatic Backup Configurator (ABC-02), STP/RSTP, MSTP
LED Per Port: Yes
Power: Yes
Power Consumption (Output Adapter): 24V DC, 0.68A
Power Input Plugin (Redundant): Yes
MTBF: 723532 hour
Dimensions: 79.2x135x116mm
Housing: Metal
Installation: Din-rail
Operating Temperature: -40 to 75 ° C
Operation Humidity: 5% to 95% RH non-condensing
Standards and Certifications: FCC, UL 508, UL/cUL Class 1 Div. 2, ATEX Zone 2, NEMA TS2, IEEE 1613, IP30
Storage Temperature: -40 to 85 ° C
Weight: 1.69Kg
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP
Protocols and management standards: IGMPv1/v2/v3, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, SNMP Inform, EtherNet/IP, PROFINET, Modbus/TCP, LLDP, IEEE 1588 PTPv2, IPv6, NTP Server/Client
Hardware installation guide: Yes
