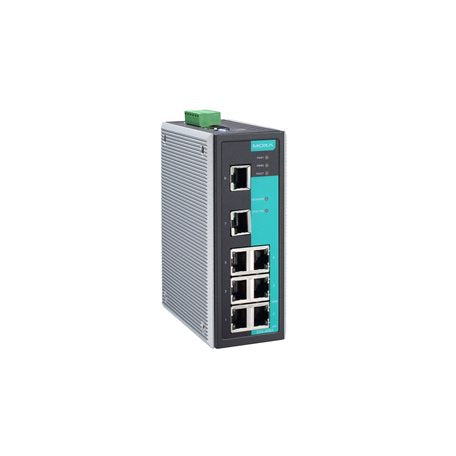

MOXA EDS-408A-PN-T MANAGED ETHERNET SWITCH

MOXA EDS-408A-PN-T MANAGED ETHERNET SWITCH

$928.00 CAD
$928.00 CAD
Sale Sold out

Features and Benefits

  • 8 x 100Mbps T(x) ports
  • DIN-rail
  • Metal body
  • -40 to 75°C operating temperature
  • Support PROFINET protocol
View full details

Description

Introducing the EDS-408A-PN-T managed Ethernet switch, a superb choice for meeting the connectivity demands of industrial environments such as Marine, Oil and Gas, Railway Transportation, Water and Wastewater, Factory Automation, and Road Transportation. Like all the other products in line in the Moxa EDS-408A series, this Moxa layer 2 managed Ethernet switch brings high network security and resilience by offering advanced reliability, redundancy, and security features based on IEC 62443 standards. Features such as RSTP, STP, Turbo Chain, and Turbo Ring v1/v2 enable the EDS-408A to reach flawless network redundancy and continuous operations in mission-critical applications. Also, the Turbo Ring's web-based management interface or DIP switch control simplifies the Moxa EDS-408A setup and makes it a flexible choice for diverse industrial settings.

Reliable Managed Ethernet Switch with Enhanced Connectivity
With 8 x Ethernet 10/100BaseT(X) ports featuring RJ45 connectors, the EDS 408A offers the best-streamlined solution. Each of these ports facilitates auto-negotiation speed and full and half duplex modes for efficient network bandwidth allocation across connected devices. Additionally, the Moxa EDS 408A reduces manual configuration via the auto MDI/MDI-X connection functionality to enable straightforward installation and integration into industrial networks. One of the primary reasons why the Moxa EDS 408A switch is recognized as a valuable Moxa switch for demanding environments is the industrial-grade durability and connectivity that come with this switch.

Robust Design with a Wide Temperature Range
The Moxa EDS-408A managed switch has a rugged metal housing and offers DIN-rail mounting and wall mounting installation options. This industrial switch is built to endure harsh conditions and extreme weather. How does the EDS-408A Switch do that? The Moxa EDS-408A switch can operate within a broad temperature range from -10 to 60°C (14 to 140°F) and is protected by an IP30 rating, which ensures dust and other particles do not enter the device. The unit’s weight of 650 grams (1.44 lbs) makes it suitable for a variety of installation options. Withstanding ambient relative humidity from 5 to 95% (non-condensing), this Moxa managed Ethernet switch is ready for diverse and challenging operational environments by providing durable and reliable connectivity.

Flexible Power Parameters with Redundant Dual Inputs
The Moxa EDS-408A Ethernet switch offers adaptable power configurations, featuring redundant dual inputs with a connection through a removable 6-contact terminal block. Operating at an input voltage range of 12/24/48 VDC (9.6 to 60 VDC operational range), the EDS 408A switch ensures reliable connectivity even during voltage fluctuations. Features like overload current protection and reverse polarity protection are built into the design, which reinforces This Moxa Ethernet switch's reliability under varying power conditions. You can find more detailed specifications in the Moxa EDS-408A datasheet.

MOXA EDS-408A Certifications
The Moxa EDS-408A managed Ethernet switch attests to the durability and safety it brings by a range of strict certifications and standards. First, the freefall and shock certifications verify the device is prepared to face challenging environments where physical disturbances occur regularly. FCC and vibration certifications further validate its suitability for industrial use to establish reliable performance in environments with substantial interference and physical stress. Safety and EN 50121-4 certifications guarantee compliance with international Safety standards to reinforce its robustness for railway and transportation applications. NEMA TS2 certification ensures reliable operation under severe temperature, Vibration, and Electrical conditions, which is ideal for transportation and traffic control systems. With maritime and Hazardous Locations certification, the switch is suitable for offshore and onshore applications that demand strict safety standards. Overall, this particular managed Ethernet switch, which belongs to the Moxa industrial network infrastructure category, is a perfect fit for maximum efficiency in high-risk environments.

You can also find the EDS-408A-SS-SC, EDS-408A-MM-ST, and EDS-408A-3M-SC-T models in the EDS-408A Series.

Data sheet

Specification

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
EDS-408A/408A-T, EDS-408A-EIP/PN models: 8, EDS-408A-MM-SC/MM-ST/SS-SC models: 6, EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC models: 5
All models support: Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)
EDS-408A-MM-SC/2M1S-SC models: 2, EDS-408A-3M-SC models: 3, EDS-408A-1M2S-SC models: 1
100BaseFX Ports (multi-mode ST connector)
EDS-408A-MM-ST models: 2, EDS-408A-3M-ST models: 3
100BaseFX Ports (single-mode SC connector)
EDS-408A-SS-SC/1M2S-SC models: 2, EDS-408A-2M1S-SC models: 1, EDS-408A-3S-SC/3S-SC-48 models: 3
Standards
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for Rapid Spanning Tree Protocol
Optical Fiber
Ethernet Software Features
Filter: 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN
Industrial Protocols
EtherNet/IP, Modbus TCP, EDS-408A-PN models: PROFINET IO Device (Slave)
Management
Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Time Management
NTP Server/Client, SNTP
Switch Properties
IGMP Groups: 256, MAC Table Size: 8 K, Max. No. of VLANs: 64, Packet Buffer Size: 1 Mbits, Priority Queues: 4, VLAN ID Range: VID 1 to 4094
Serial Interface
Console Port: RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
Ethernet Interface: Turbo Ring, Master, Coupler, Reserve
Input/Output Interface
Alarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDC
Power Parameters
Connection: 1 removable 6-contact terminal block(s)
Input Voltage: All models: Redundant dual inputs, EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC/EIP/PN models: 12/24/48 VDC, EDS-408A-3S-SC-48/408A-3S-SC-48-T models: ±24/±48 VDC
Operating Voltage: EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC/EIP/PN models: 9.6 to 60 VDC, EDS-408A-3S-SC-48 models: ±19 to ±60 VDC
Input Current: EDS-408A, EDS-408A-EIP/PN/MM-SC/MM-ST/SS-SC models: 0.61 @ 12 VDC, 0.3 @ 24 VDC, 0.16 @ 48 VDC; EDS-408A-3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC models: 0.73 @ 12 VDC, 0.35 @ 24 VDC, 0.18 @ 48 VDC; EDS-408A-3S-SC-48 models: 0.33 A @ 24 VDC, 0.17 A @ 48 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight: EDS-408A, EDS-408A-MM-SC/MM-ST/SS-SC/EIP/PN models: 650 g (1.44 lb), EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC models: 890 g (1.97 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature: Standard Models: -10 to 60°C (14 to 140°F), Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: All models: UL 508, EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC models, EDS-EIP/PN models: UL 6095-01, EN 62368-1
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
Hazardous Locations: EDS-408A, EDS-408A-MM-SC/MM-ST/SS-SC/EIP/PN models: ATEX, Class I Division 2, IECEx
Railway: EN 50121-4
Traffic Control: EDS-408A, EDS-408A-MM-SC/MM-ST/SS-SC/EIP/PN models: NEMA TS2
Vibration: IEC 60068-2-6
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-31
Maritime: All models, exclude EDS-408A-3S-SC-48-(T): DNV, NK, LR, EDS-408A, EDS-408A-MM-SC/MM-ST/SS-SC/EIP/PN models: ABS
MTBF
Time: EDS-408A, EDS-408A-EIP/PN models: 1,339,439 hrs, EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC models: 1,253,072 hrs, EDS-408A-3S-SC-48 models: 989,940 hrs
Standards: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
