Moxa

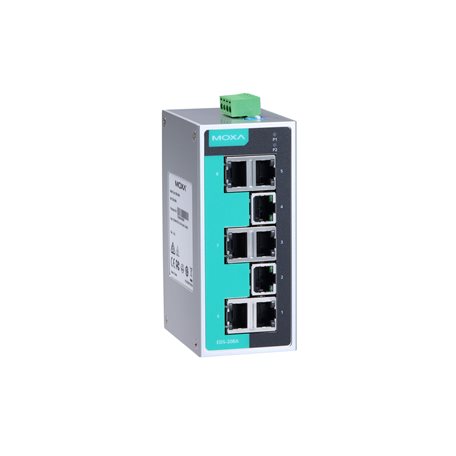

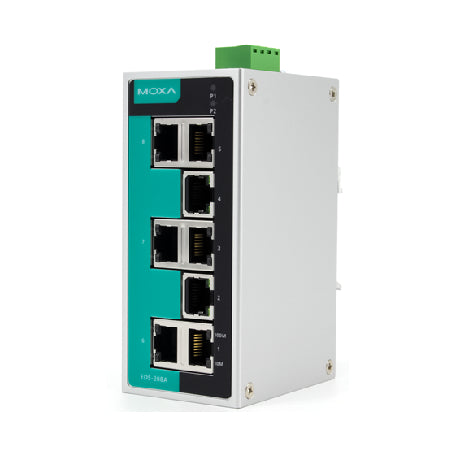

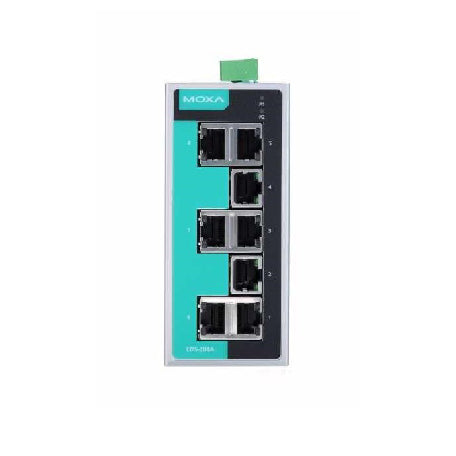

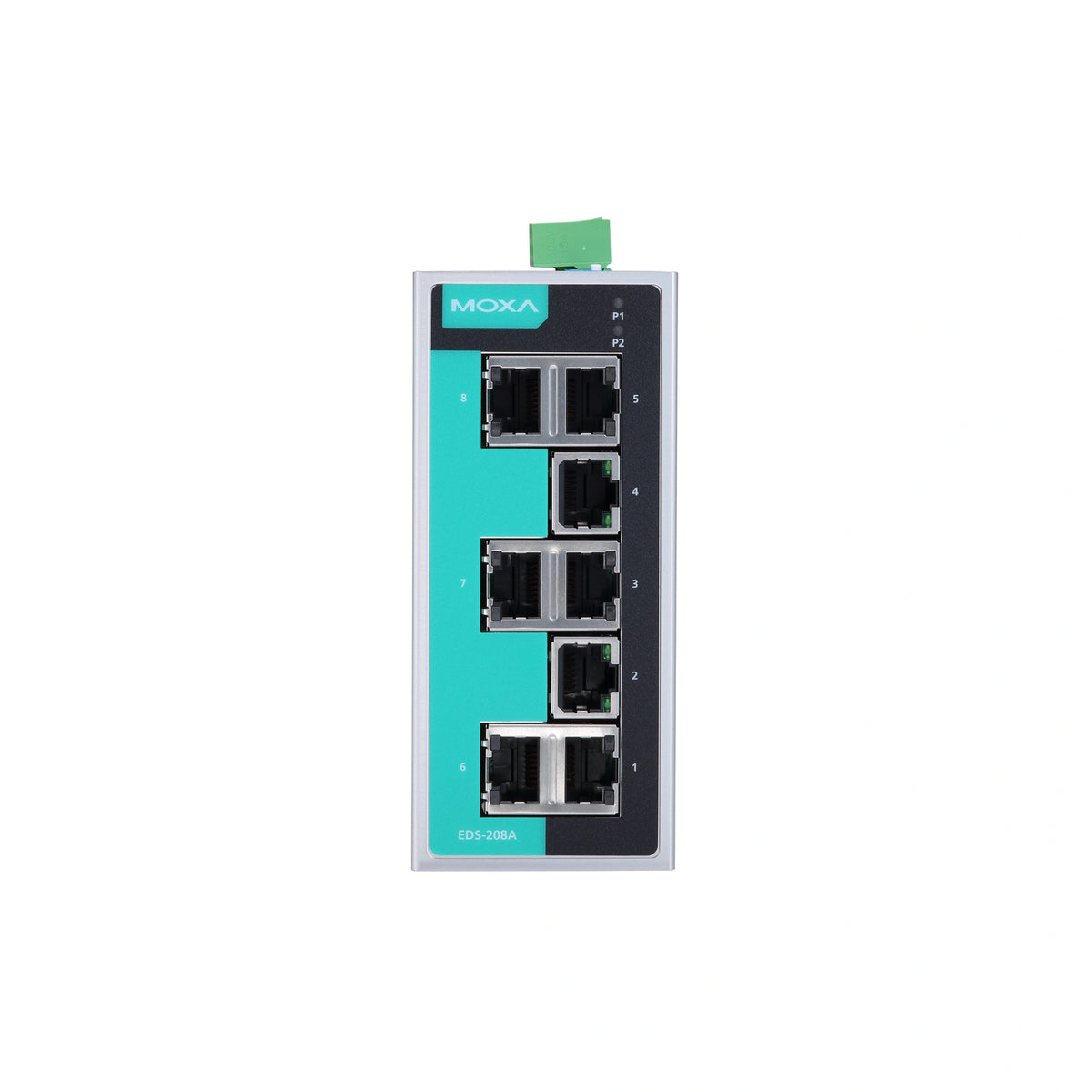

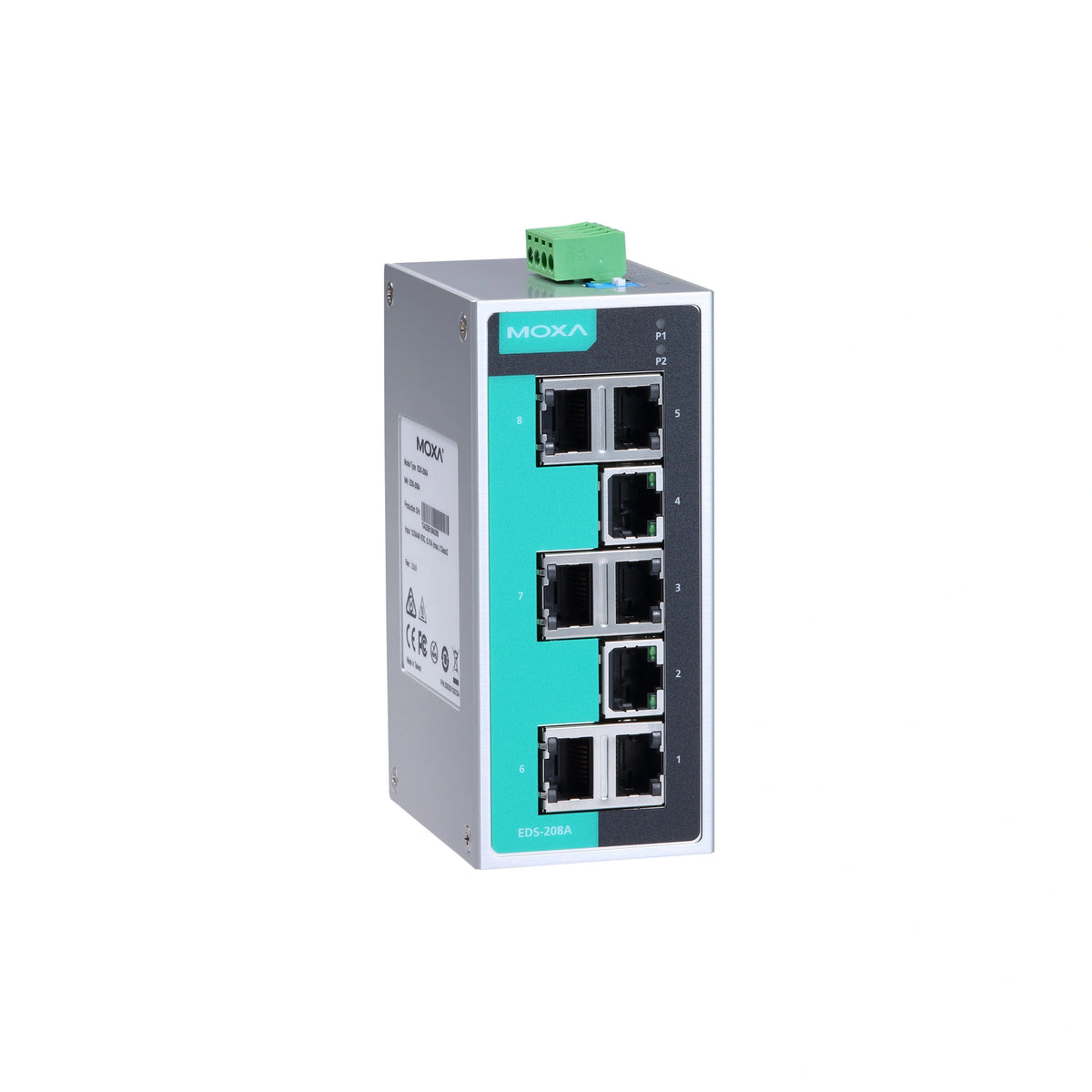

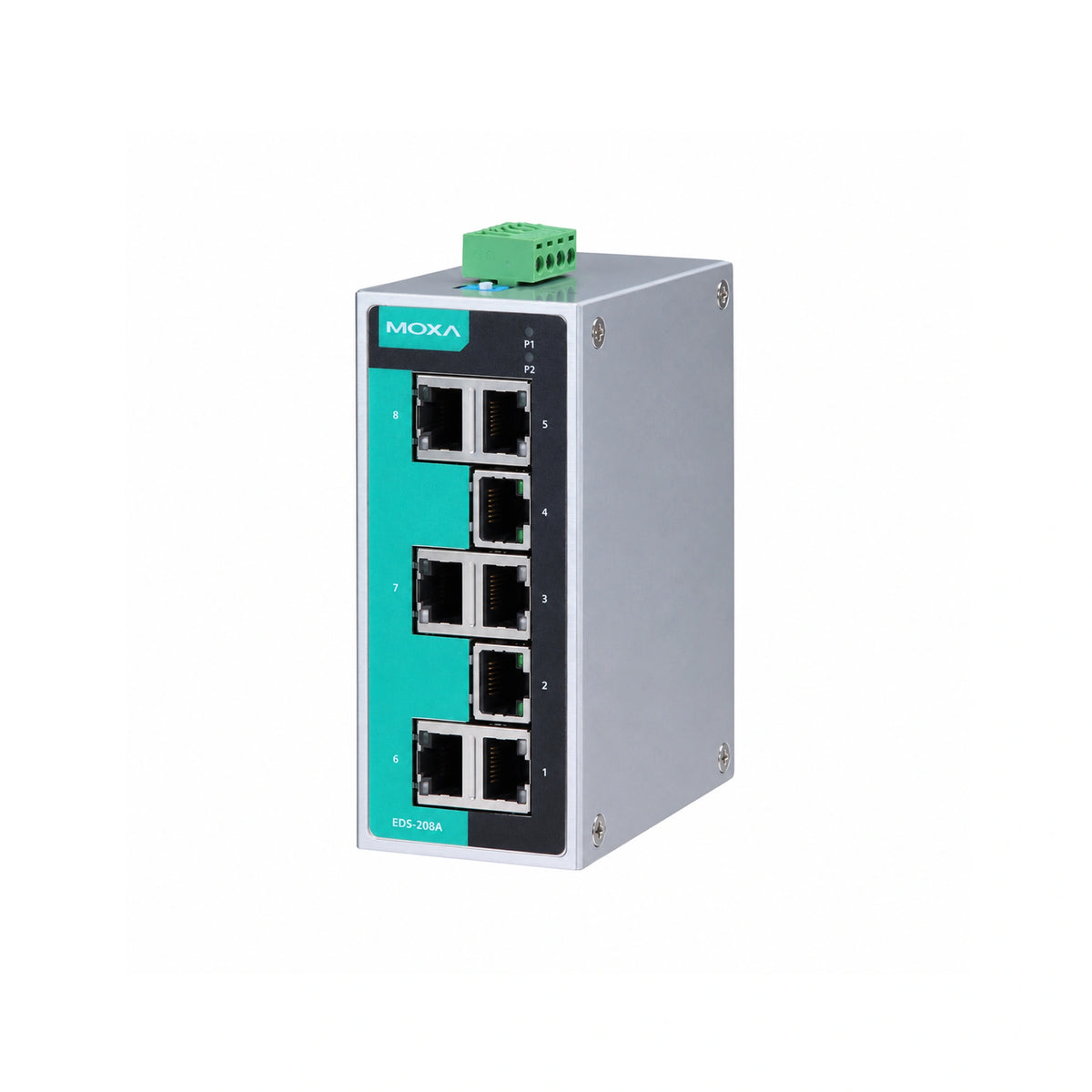

MOXA EDS-208A UNMANAGED ETHERNET SWITCH

MOXA EDS-208A UNMANAGED ETHERNET SWITCH

$231.00 CAD
$231.00 CAD
Sale Sold out
We have 7 in stock

Features and Benefits

  • 8 x 100Mbps T(x) ports
  • DIN-rail
  • Aluminum body
  • -10 to 60°C operating temperature
    View full details

    Description

    The EDS-208A Series 8-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-208A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.

    The EDS-208A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

    You can also find the EDS-208A-M-SC, EDS-208A, EDS-208A-S-SC, EDS-208A-T models in the EDS-208A Series.

    Data sheet

    Specification

    Number of ports: 8 Ports
    10/100Mb RJ45 (Megabit) Ports: 8 Ports
    Power Consumption: 24V AC, 12V DC, 24V DC, 48V DC
    MTBF: 2428212
    Switch type: Unmanaged
    Dimensions: 50x115x70mm
    Housing: Aluminum
    Installation: Din-rail
    Operating Temperature: -10 to 60 ° C
    Operation Humidity: 5% to %95 RH non-condensing
    Standards and Certifications: CE, IP30, Safety: UL 508, Hazardous Location: UL/cUL Class 1 Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc, EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A, EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11 , Marine: DNV, GL, LR, ABS, NK, Traffic Control: NEMA TS2, Rail Traffic: EN 50121-4, Shock: IEC 60068-2-27, Freefall: IEC 60068-2-32, Vibration: IEC 60068-2-6
    Storage Temperature: -40 to 85 ° C
    Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX,IEEE 802.3x for Flow Control
