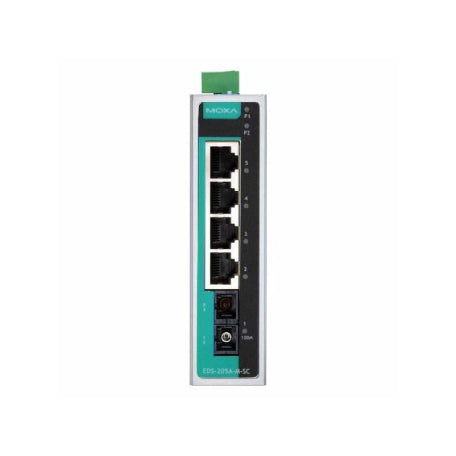

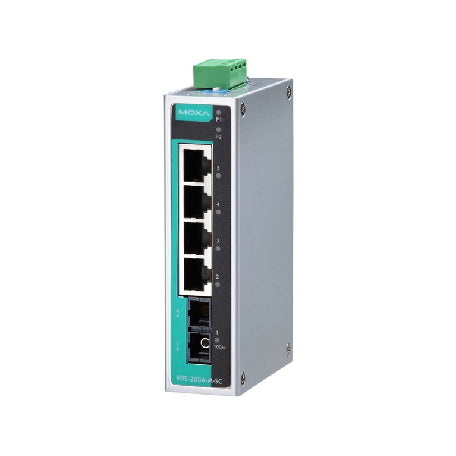

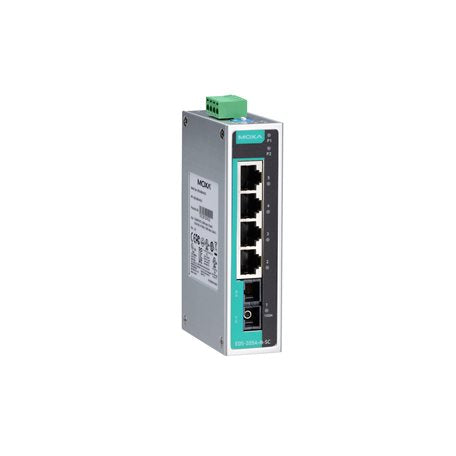

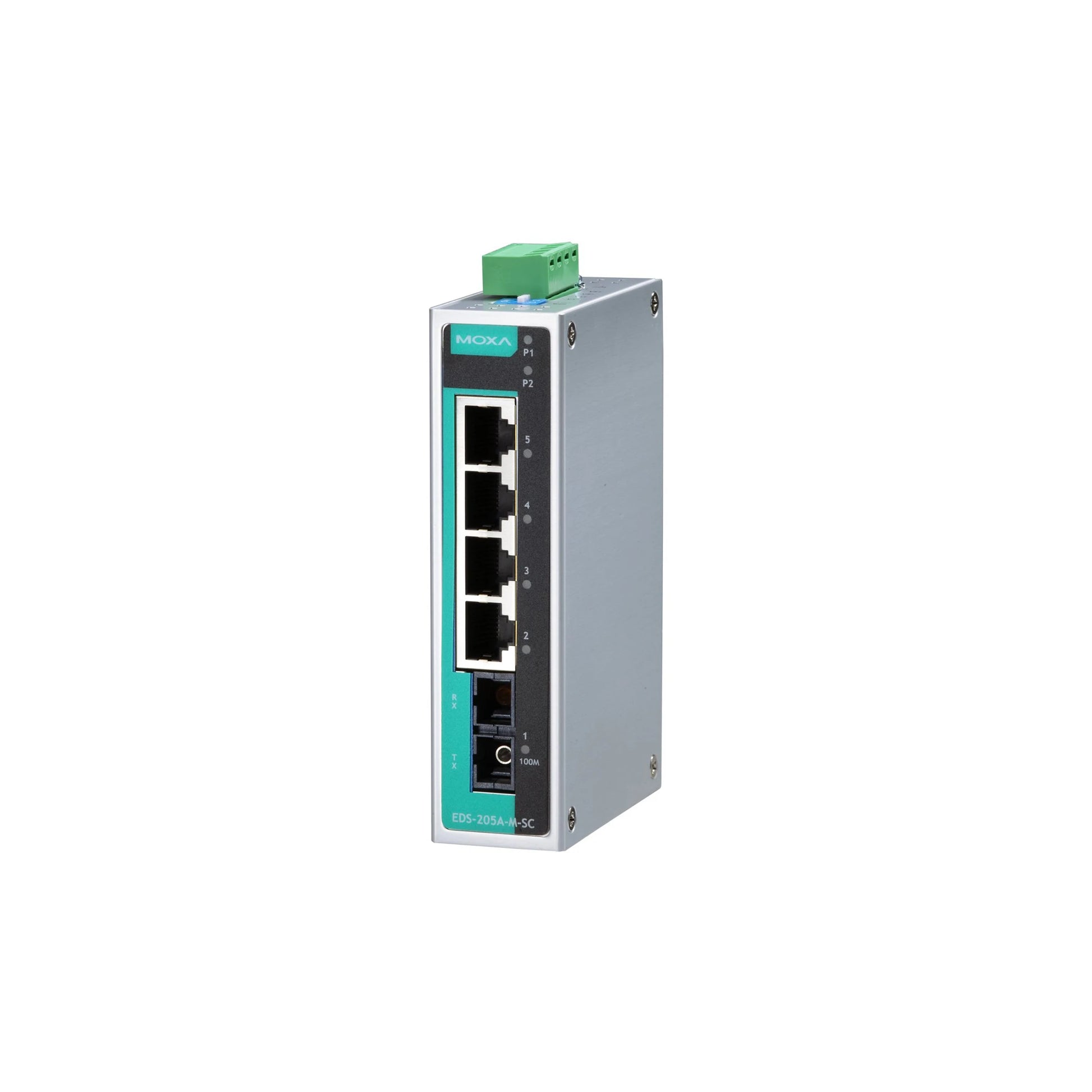

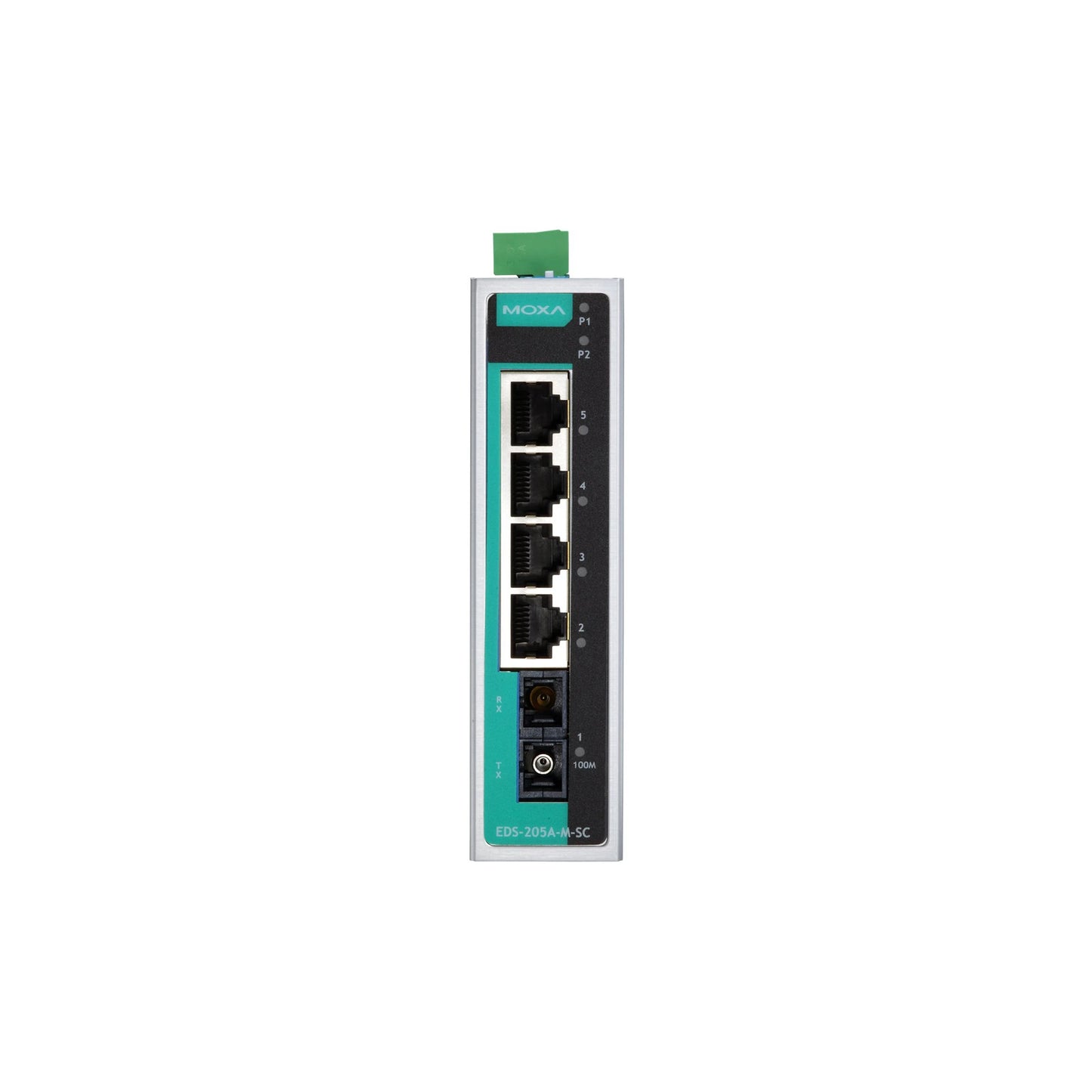

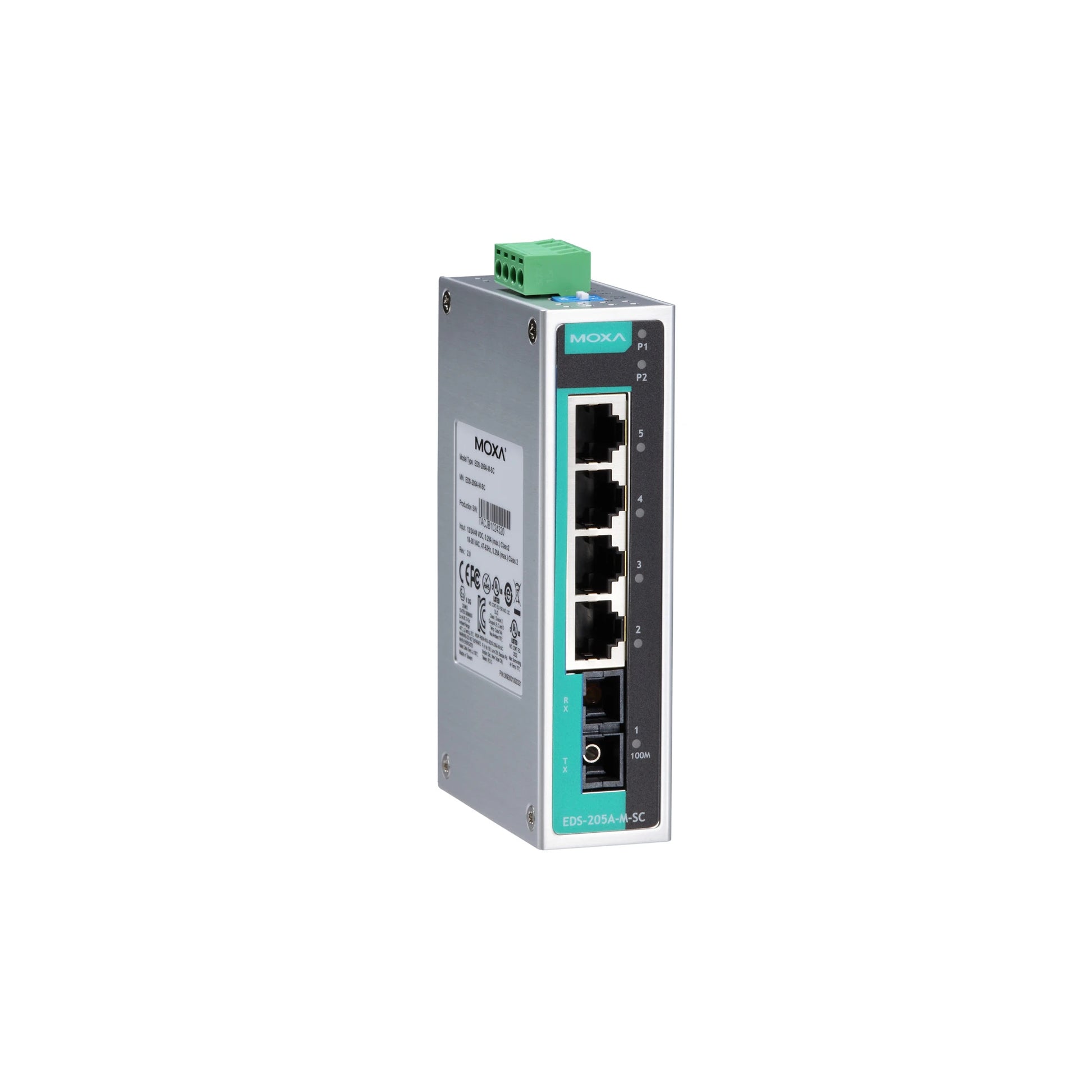

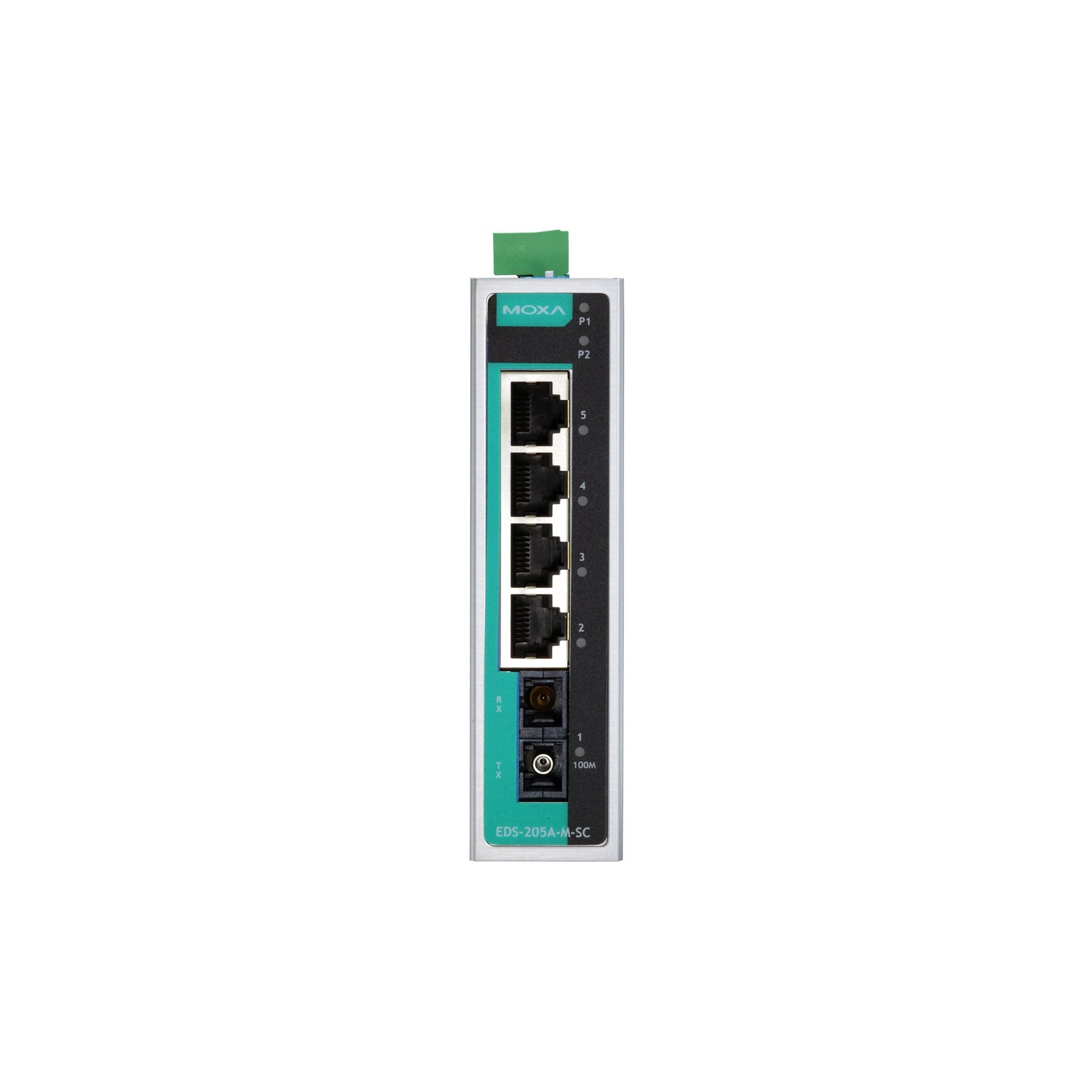

MOXA EDS-205A-M-SC UNMANAGED ETHERNET SWITCH

MOXA EDS-205A-M-SC UNMANAGED ETHERNET SWITCH

$327.00 CAD
$327.00 CAD
Sale Sold out

Features and Benefits

  • 4 x 10/100Mbps T(X) ports and 1 x 100Mbps F(x) multi-mode port with SC connector
  • DIN-rail
  • Aluminum body
  • -10 to 60°C operating temperature
View full details

Description

The EDS-205A Series 5-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-205A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.
The EDS-205A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-205A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

Data sheet

Specification

Number of ports: 5 Ports
10/100Mb RJ45 (Megabit) Ports: 4 Ports
Fiber Port: 1 SC port (Multimode)
Power Consumption: 24V AC, 12V DC, 24V DC, 48V DC
MTBF: 3040784 hour
Switch type: Unmanaged
Dimensions: 30x115x70mm
Housing: Aluminium
Installation: Din-rail
Operating Temperature: -10 to 60 ° C
Operation Humidity: 5% to %95 RH non-condensing
Standards and Certifications: Safety: UL 508, Hazardous Location: UL/cUL Class 1 Division 2 Groups A/B/C/D,FCC, IP30, UL, CE, ATEX Zone 2 Ex nA nC IIC T4 Gc, EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A, EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11 , Marine: DNV, GL, LR, ABS, NK, Traffic Control: NEMA TS2, Rail Traffic: EN 50121-4, Shock: IEC 60068-2-27, Freefall: IEC 60068-2-32, Vibration: IEC 60068-2-6
Storage Temperature: -40 to 85 ° C
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX,IEEE 802.3x for Flow Control
