Moxa

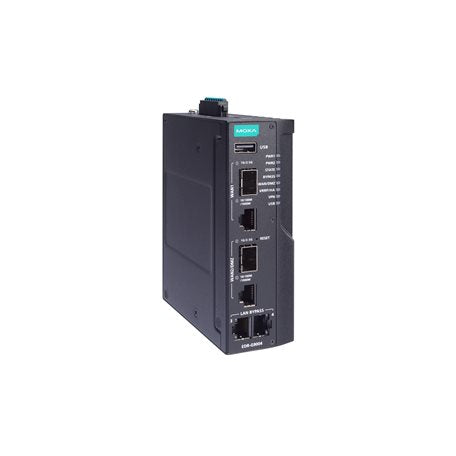

MOXA EDR-G9004-VPN-2MGTXSFP-CT Industrial Secure Router

MOXA EDR-G9004-VPN-2MGTXSFP-CT Industrial Secure Router

Regular price $3,444.00 CAD
Regular price Sale price $3,444.00 CAD
Sale Sold out

Features and Benefits

  • 2 x 10/100/1000BaseT(X) Ports (RJ45 connector)
  • 2 x Combo Ports (10/100/1000BaseT(X) or 1000BaseSFP)
  • 12 to 48 VDC Redundant dual power inputs
  • Metal body design
  • DIN-rail and Wall mounting
  • -10 to 60°C operating temperature
View full details

Description

The EDR-G9004 Series is a set of highly integrated industrial multi-port secure routers with firewall/NAT/VPN functions. These devices are designed for Ethernet-based security applications in critical remote control or monitoring networks. These secure routers provide an electronic security perimeter to protect critical cyber assets including substations in power applications, pump-and-treat systems in water stations, distributed control systems in oil and gas applications, and PLC/SCADA systems in factory automation. Furthermore, with the addition of IDS/IPS, the EDR-G9004 Series is an industrial next-generation firewall, equipped with threat detection and prevention capabilities to further protect critical infrastructure from cybersecurity attacks.

Specification

Input/Output Interface
Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
Buttons: Reset button
Digital Input Channels: +13 to +30 V for state 1, -30 to +3 V for state 0
Max. Input Current: 8 mA

Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector): 2 (with Gen3 LAN Bypass)
Combo Ports (10/100/1000BaseT(X) or 1000/2500BaseSFP): 2
DMZ: Supports DMZ port
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3x for flow control

Ethernet Software Features
Management: Back Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, SNMPv1/v2c/v3, Telnet, TFTP, HTTPS, SSH
Routing Throughput: Max. 350K packets per second / 2 Gbps (based on RFC 2544)
Routing Table: Max. 4K routing rules
Concurrent Connections: Max. 400K (based on RFC 3511)
Connections Per Second: Max. 20K (based on RFC 3511)
Routing Redundancy: VRRP
Security
Secure Boot: Supported
IPsec: Supported
L2TP (server): Supported
RADIUS: Supported
TACACS+: Supported
Trust Access Control: Supported
SCP: Supported
SFTP: Supported
NTP Authentication: Supported
Syslog Authentication: Supported

Time Management
NTP: Server/Client
SNTP: Supported

Multicast Routing
Static Route: Supported

Unicast Routing
OSPF: Supported
RIPV1/V2: Supported
Static Route: Supported

LED Interface
LED Indicators: PWR1, PWR2, STATE, BYPASS, WAN/DMZ, VRRP/HA, VPN, USB

DoS and DDoS Protection
Technology: ARP-Flood, FIN Scan, ICMP Flood, TCP Sessions Without SYN, NMAP-ID Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-Flood, Xmas Scan

Firewall
Filter: DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports
Stateful Inspection: Router firewall
Transparent Mode: Bridge firewall

Deep Packet Inspection
Supported Protocols: Modbus TCP, Modbus UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, MELSEC, Omron FINS, OPC UA, Siemens S7 Comm., Siemens S7 Comm. Plus
Future Support: Additional protocols through future firmware updates

Intrusion Prevention System
License Requirement: Requires an additional license
Throughput - Firewall: Max. 350K packets per second / 2 Gbps (based on RFC 2544)
Throughput - IPS: Max. 200K packets per second / 2 Gbps (based on RFC 2544)

IPsec VPN
Authentication: MD5, SHA (SHA-512), RSA (key size: 1024-bit, 2048-bit), X.509 v3 certificate
Concurrent VPN Tunnels: Max. 250 IPsec VPN tunnels
Encryption: DES, 3DES, AES-128, AES-192, AES-256, AES-256-GCM
Protocols: IPsec, L2TP (server), PPTP (client)
Throughput Conditions: AES-256, SHA-256
Max. Throughput: 100K packets per second / 800 Mbps (based on RFC 2544)

NAT
Features: 1-to-1, N-to-1, NAT loopback, Port forwarding

Real-Time Firewall / VPN Event Log
Event Type: Firewall event, VPN event
Media: Local storage, SNMP Trap, Syslog server

Serial Interface
Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Connector: USB Type-C
