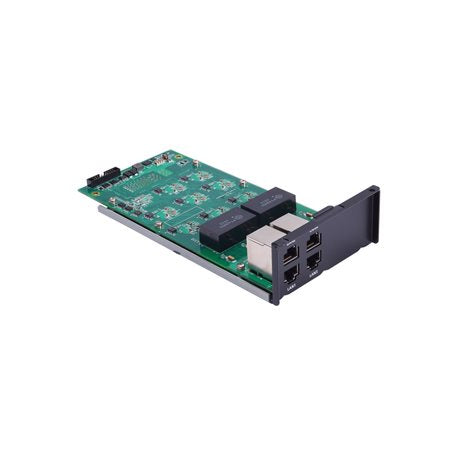

MOXA DA-LN04-RJ Expansion Module

MOXA DA-LN04-RJ Expansion Module

Regular price $236.00 CAD
Regular price Sale price $236.00 CAD
Sale Sold out

Features and Benefits

  • 4-port RJ45 Ethernet interface for LAN connectivity
  • Supports 10/100/1000 Mbps data transmission
  • Compact design for space-saving installations
  • Plug-and-play for easy integration
  • Robust construction for industrial environments
  • DIN-rail mounting for secure and flexible installation
View full details

Description

Introduction
DA-720-Ethernet peripheral expansion modules include a 4-port Giga LAN module, an 8-port Giga LAN module, and a PRP/HSR module for setting up industrial communication applications with Ethernet-based devices. All modules are designed to offer the greatest flexibility for setting up applications and performing industrial tasks.

The PRP-HSR expansion module is compliant with IEC 62439-3 Clause 4 (PRP) and IEC 62439-3 Clause 5 (HSR) to ensure the highest system availability and data integrity for mission-critical applications that require redundancy and zero-time recovery. With dual Gigabit Ethernet port design, the DA-PRP-HSR module provides high performance for redundant network systems. Moxa’s DA-720 Series industrial computer with the DA-PRP-HSR module installed is the ideal solution for power substation automation and process automation systems.

Specification

Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector): 4
Magnetic Isolation Protection: 1.5 kV (built-in)
Physical Characteristics
Dimensions: 213.31 x 95 mm (8.398 x 3.74 in)
Weight: 335 g (0.74 lb)
Environmental Limits
Operating Temperature: -25 to 55°C (-13 to 131°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Declaration
Green Product: RoHS, CRoHS, WEEE
MTBF
Time: 2,126,091 hrs
Standards: Telcordia (Bellcore), GB
Warranty
Warranty Period: 3 years
Details: See www.moxa.com/warranty
