Moxa

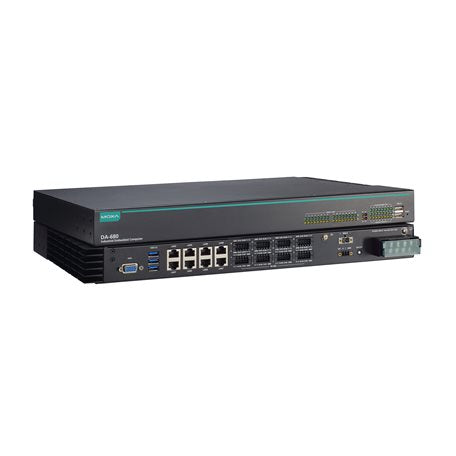

MOXA DA-680-I-16-WL3-H Rackmount Industrial Computer

MOXA DA-680-I-16-WL3-H Rackmount Industrial Computer

Regular price $3,341.00 CAD
Regular price Sale price $3,341.00 CAD
Sale Sold out

Features and Benefits

  • 16 x RS-485 Serial Ports
  • IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
  • DDR4 memory slot; up to 16 GB capacity
  • Single 100 to 240 VAC/VDC power input
View full details

Description

The DA-680 computer is built around an Intel® Core™ i3 processor and comes with 8 Gigabit Ethernet ports, 1 VGA port, 8/16 isolated RS-485 serial ports, and 5 USB ports. Additionally, one 2.5” HDD/SSD slot and one mSATA slot are included to enable storage expansion for industrial applications that require large storage space for edge data acquisition. With IEC 61850-3, IEEE 1613, and IEC 60255 compliance, the DA-680 is sure to deliver stable and reliable system operation for power applications.

Specification

Industrial Computer: Computer
CPU: Intel® Core™ i3-8145UE Whiskey Lake processor
DRAM: 16 GB max
OS (pre-installed): Windows 10 IoT Ent 2021 LTSC, version 21H2, Linux Debian 11, Ubuntu 20.04, CentOS 7.9
USB: 3 x USB 2.0 hosts, 3 x USB 3.0 hosts

Industrial Computer: Interface
Console Port: -
LAN: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 8
Magnetic Isolation Protection: No
Serial Standards: 16 x Ports with RS-485 serial standard

Industrial Computer: Digital Input
Input Channels: No

Industrial Computer: Digital Output
Output Channels: -
Output Voltage: 24 VDC nominal, open collector to 30 VDC

Industrial Computer: Serial Communication Parameters
Data Bits: -
Stop Bits: -
Parity: -
Flow Control: -
Baudrate: 50 bps to 115.2 kbps

Industrial Computer: Serial Signals
RS-232: No
RS-422: No
RS-485-4w: Data+, Data-, GND
RS-485-2w: Tx+, Tx-, Rx+, Rx-, GND

Industrial Computer: LED Indicators
System: Programmable x 6, Storage x 1, Power x 1, Power Fail x 2 (Power Fail 1/2)
LAN: 2 per port (10/100/1000 Mbps)
Serial: 2 per port (Tx, Rx)

Industrial Computer: Power Requirements
Input Voltage: -
Input Current: 100 to 240 VAC, 50/60 Hz, 1.05 A (max); 100 to 240 VDC, 0.7 A (max)
Power Consumption: -

Industrial Computer: General
Alert Tools: -
Automatic Reboot Trigger: -
Storage Expansion: 2.5-inch HDD/SSD slots x 1, mSATA slots x 1

Industrial Computer: Physical Characteristics
Dimensions: 440 x 335.5 x 44 mm (17.32 x 13.21 x 1.73 in)
Housing: Metal
Operating Temperature: -25 to 55°C (-13 to 131°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Relative Humidity: 5 to 95% (non-condensing)
EMC: EN 55032/35, EN 61000-6-2/-6-4
Weight: 4659.5 g (10.27 lb)
Anti-Vibration: No
Safety: UL 62368-1, IEC 62368-1
Green Product: RoHS, CRoHS, WEEE
Anti-Shock: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV,
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m,
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV,
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV,
IEC 61000-4-6 CS: 10 V,
IEC 61000-4-8 PFMF: 100 A/m at 50 Hz,
IEC 61000-4-11
Mounting: Rackmount
