MOXA CP-602U-I w/o Cable Serial Expansion Module

$655.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

Universal PCI Serial Bus
2 x CAN ports (DB9 male connector)
Supports CAN 2.0A and CAN 2.0B
CAN transfer rate up to 1 Mbps
Compatible Driver for Windows
2KV Electrical isolation protection
0 to 55°C Operating Temperature

View full details

Description

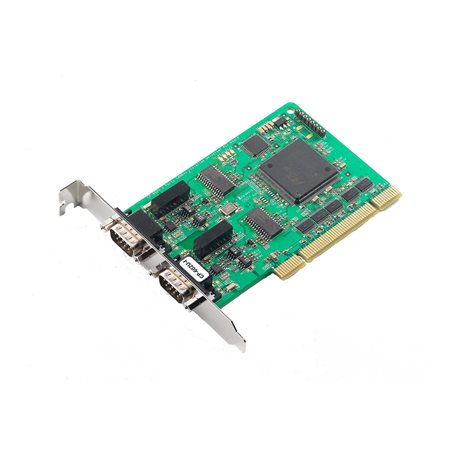

Moxa’s CP-602U-I CAN (Controller Area Network) interface board supports the Universal PCI interface. As a standalone CAN controller, the CP-602U-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602U-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602U-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.

Data sheet

Specification

CANbus Serial Boards: Serial Interface
Number of Ports: 2
Serial Standards: -
Connector: -
Serial Isolation Protection: 2 kV

CANbus Serial Boards: CAN Interface
Number of Ports: 2 x CAN 2.0 A/B
Connector: DB9 male
Baudrate: 10/20/50/125/250/500/800/1000 kbps, user-defined

CANbus Serial Boards: General
Standards and Certifications: EMC, EMI, EMS
MTBF: 1,989,990 hrs

CANbus Serial Boards: Physical Characteristics
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Dimensions: 120.5 x 120 x 106.3 x 80 mm
