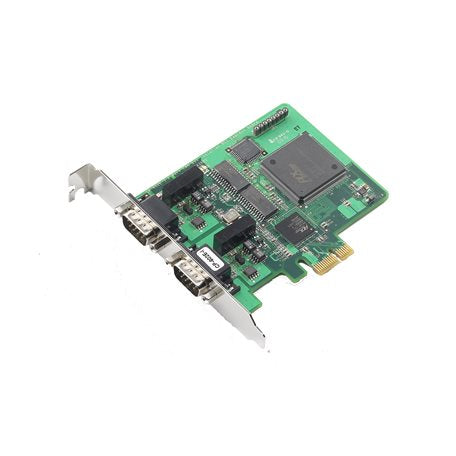

MOXA CP-602E-I-T w/o Cable CANBUS PCI Express Board

MOXA CP-602E-I-T w/o Cable CANBUS PCI Express Board

Regular price $845.00 CAD
Regular price Sale price $845.00 CAD
Sale Sold out

Features and Benefits

  • 2 x RS-232/422/485 Serial Ports
  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip hardware/software flow control
  • 2.5 kV optical isolation for enhanced communication reliability
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Compact form factor for space-constrained installations
View full details

Description

MOXA CP-602E Introduction
Moxa’sCP-602E-I CAN (Controller Area Network) interface board supports the PCI Express interface. As a standalone CAN controller, the CP-602EI is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602E-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602E-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.

You can also find the CP-602E-I-T w/o Cable model in the CP-602E-I Series.

Specification

CANbus Serial Boards: Serial Interface
Number of Ports: 2
Serial Standards: -
Connector: -
Serial Isolation Protection: 2 kV electrical isolation
CANbus Serial Boards: CAN Interface
Number of Ports: 2
Connector: DB9 male
Baudrate: 10/20/50/125/250/500/800/1000 kbps, user-defined
CANbus Serial Boards: General
Standards and Certifications: EMC, EMI, EMS
MTBF: 4,645,502 hrs
CANbus Serial Boards: Physical Characteristics
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Dimensions: 120.5 x 100 x 85 x 59.05 mm
