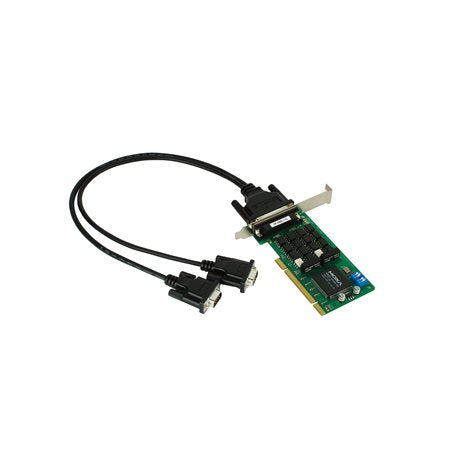

MOXA CP-132UL-I-T UPCI SERIAL BOARD

MOXA CP-132UL-I-T UPCI SERIAL BOARD

$505.00 CAD
$505.00 CAD
Sale Sold out

Features and Benefits

  • 2 x RS-422/485 Serial Ports
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip hardware/software flow control
  • 2.5 kV optical isolation for reliable industrial communication
  • Compatible with 3.3/5 V Universal PCI and PCI-X slots
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Wide operating temperature range: -40 to 85°C
View full details

Description

MOXA CP-132UL-DB9M Introduction
The CP-132UL and CP-132UL-I are 2-port Universal PCI boards designed for industrial automation applications that require a long-distance, multi-point, PC-based data acquisition solution. RS-485 communication requires precise timing control to enable and disable the line driver. Our Turbo Serial Engine™ chip that powers the CP-132UL/UL-I boards comes with on-chip ADDC®, which makes RS-485 as easy to use as RS-232. The CP-132UL/UL-I Universal PCI boards have two RS-422/485 serial ports, both of which can achieve data rates of up to 921.6 kbps. In RS-485 mode, the boards can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, choose the CP-132UL-I model, which comes with 2 kV electrical isolation protection to prevent equipment damage.

You can also find the CP-132UL-T and CP-132UL-I-T models in the CP-132UL Series.

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 2
Bus Interface: 32-bit Universal PCI
Serial Standards: RS-422, RS-485
Connector: DB25 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Multiport Serial Boards: Power Requirements
Input Current: 120 mA @ 5 VDC
Multiport Serial Boards: General
MTBF: 1,647,832 hrs
Multiport Serial Boards: Physical Characteristics
Dimensions: 64.4 x 120 mm (2.53 x 4.72 in)
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operating Humidity: 5 to 95% (non-condensing)
