Moxa

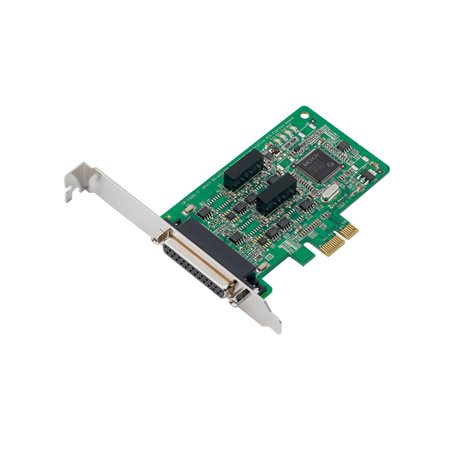

MOXA CP-132EL-I-DB9M Serial Expansion Module

MOXA CP-132EL-I-DB9M Serial Expansion Module

Regular price $562.00 CAD
Regular price Sale price $562.00 CAD
Sale Sold out

Features and Benefits

  • 2 x RS-422/485 Serial ports (DB25 female connector)
  • 2KV Isolation protection for serial ports
  • Supports maximum 921.6 kbps baud rate
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible Driver with Windows, Linux, and UNIX
  • Included Cable: CBL-M25M9x2-50
  • 0 to 55°C Operating Temperature
View full details

Description

The CP-132EL Series of 2-port PCI Express boards are designed for industrial automation applications that require a long-distance, multipoint, PC-based data acquisition solution.

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: 16C550C compatible
Number of Ports: 2
Bus interface: PCI Express 1.0
Serial Standards: RS-422, RS-485
Connector: DB25 female
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes

Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6, QNX 6

Multiport Serial Boards: Power Requirements
Input Current: 636 mA @ 3.3 VDC

Multiport Serial Boards: General
MTBF: 1,681,099 hrs

Multiport Serial Boards: Physical Characteristics
Dimensions: 67.21 x 103.97 mm (2.65 x 4.16 in)
Standards and Certifications: EMC, EMI, EMS, RoHS, CRoHS, WEEE
Storage Temperature: -20 to 85°C (-4 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
