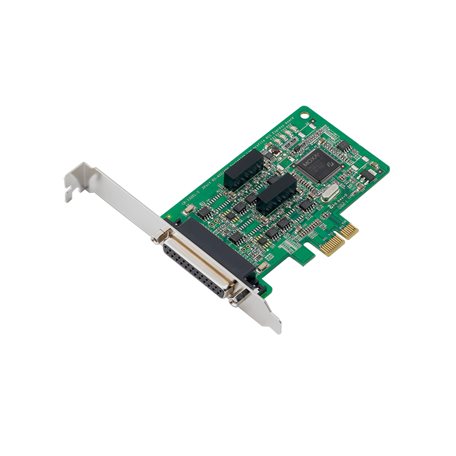

MOXA CP-132EL-DB9M CABLE PCI EXPRESS SERIAL BOARD

MOXA CP-132EL-DB9M CABLE PCI EXPRESS SERIAL BOARD

$286.00 CAD
$286.00 CAD
Sale Sold out

Features and Benefits

  • 2 x RS-422/485 Serial Ports
  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip hardware/software flow control
  • DB9 male connectors for easy integration
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Compact form factor for small-sized PCs
View full details

Description

MOXA CP-132EL-DB9M Introduction
In the CP-132EL Series, the CP-132EL and CP-132EL-I are 2-port PCI Express boards designed for industrial automation applications that require a long-distance, multi-point, PC-based data acquisition solution.

The CP-132EL/EL-I boards have two RS-422/485 serial ports, each of which can achieve data rates up to 921.6 kbps. In RS-485 mode, the boards can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, choose the CP-132EL-I model, which comes with 2 kV electrical isolation protection to prevent equipment damage.

Moxa continues to support a wide variety of operating systems, and the CP-132EL/EL-I boards are no exception. Reliable Windows and Linux drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: 16C550C compatible
Number of Ports: 2
Bus Interface: PCI Express 1.0
Serial Standards: RS-422, RS-485
Connector: DB25 female
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6, QNX 6
Multiport Serial Boards: Power Requirements
Power Requirement: 548 mA @ 3.3 VDC
Multiport Serial Boards: General
MTBF: 4,147,133 hrs
Multiport Serial Boards: Physical Characteristics
Dimensions: 67.21 x 101.97 mm (2.65 x 4.08 in)
Standards and Certifications: EMC, EMI, EMS, RoHS, CRoHS, WEEE
Storage Temperature: -20 to 85°C (-4 to 185°F)
Operating Humidity: 5 to 95% (non-condensing)
