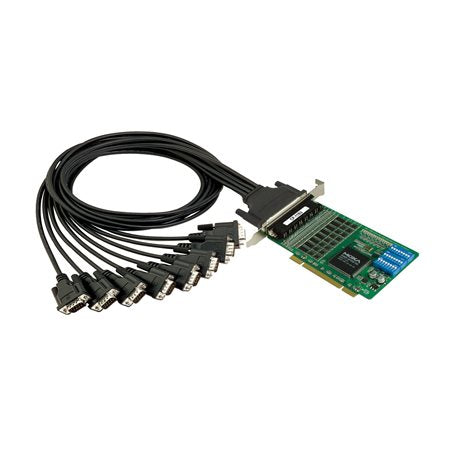

MOXA CP-118U PCI SERIAL BOARD

MOXA CP-118U PCI SERIAL BOARD

$577.00 CAD
$577.00 CAD
Sale Sold out

Features and Benefits

  • 8 RS-232/422/485 Port UPCI Board
  • 0 to 55°C operating temperature
  • Installed on the 32bit UPCI slot Output DB62 female
  • Input power 5V DC, 0.3A
  • Compatible with PCI and PCI-X cards with 3.3/5 V
View full details

Description

The CP-118U and CP-138U are smart, 8-port Universal PCI serial boards designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. Both boards are compatible with all major operating systems. In addition, the CP-118U’s 8 RS-232/422/485 ports and the CP-138U’s 8 RS-422/485 ports support data rates up to 921.6 kbps, and provide full modem control signals to ensure compatibility with a wide range of serial peripherals. The CP-118U and CP-138U support both 3.3V and 5V PCI buses, making them suitable for installation in most PC servers.

Data sheet

Specification

Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 8
Bus Interface: 32-bit Universal PCI
Serial Standards: RS-232, RS-422, RS-485
Connector: DB62 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: 5, 6, 7, 8
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Input Current: 240 mA @ 5 VDC (RS-232); 300 mA @ 5 VDC (RS-422)
MTBF: 1,073,385 hrs
Dimensions: 82 x 135 mm (3.22 x 5.31 in)
Operating Temperature: 0 to 55°C
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
