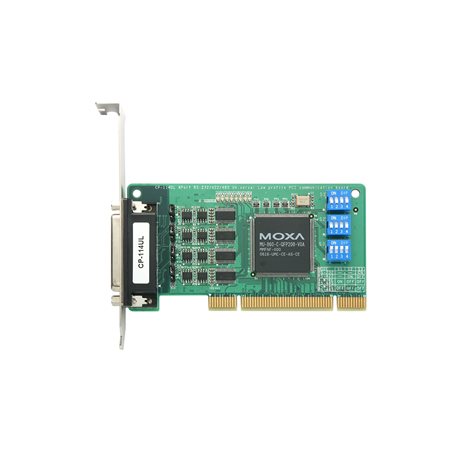

MOXA CP-114UL-I Serial Expansion Module

MOXA CP-114UL-I Serial Expansion Module

$631.00 CAD
$631.00 CAD
Sale Sold out

Features and Benefits

  • 4 x RS-232/422/485 Serial Ports (DB44 female connector)
  • Supports maximum 921.6 kbps baud rate
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible Driver with Windows, Linux, and UNIX
  • Included Cable: CBL-M44M25x4-50
  • 0 to 55°C Operating Temperature
View full details

Description

Moxa’s CP-114UL Series of multiport serial boards is designed to be used by industrial automation system integrators for long-distance, multipoint, PC-based data acquisition applications. On-chip Automatic Data Direction Control for precision RS-485 communication requires precise timing control to enable and disable the line driver. The Moxa Turbo Serial Engine™ chip that powers the CP-114UL boards come with on-chip ADDC®, which makes RS-485 as easy to use as RS-232. In RS-485 mode, the serial port can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, 2 kV electrical isolation protections are available to prevent equipment damage.

Data sheet

Specification

Comm. Controller: MU860 (16C550C compatible)
Bus: 32-bit Universal PCI
Connector: DB44 female
FIFO: 128 bytes
Max. No. of Boards per PC: 8
No. of Ports: 4
Serial Standards: RS-232, RS-422, RS-485
Baudrate: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Flow Control: None, RTS/CTS, XON/XOFF
Parity: None, Even, Odd, Space, Mark
Isolation: CP-114UL-I Series: 2 kV

Serial Signals:
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Serial Software Features:
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Power Parameters:
Input Current:
CP-114UL Series: 320 mA @ 5 VDC
CP-114UL-I Series: 465 mA @ 5 VDC

Physical Characteristics:
Dimensions:
CP-114UL Series: 64.4 x 120 mm (2.53 x 4.72 in)
CP-114UL-I Series: 64.4 x 130 mm (2.53 x 5.12 in)

LED Interface:
LED Indicators: Built-in Tx, Rx LEDs for each port

Environmental Limits:
Operating Temperature:
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications:
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class B
EMS (All models):
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
CP-114UL-I Series:
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8
International Approval: CP-114UL-DB9M: KC

Declaration:
Green Product: RoHS, CRoHS, WEEE

MTBF:
Time: 114,223 hrs
Standards: Telcordia SR332

Warranty:
Warranty Period: 5 years
