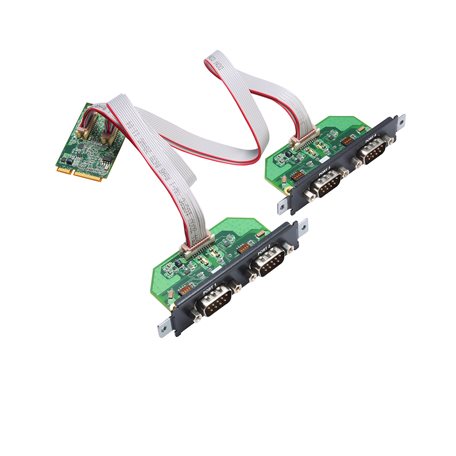

MOXA CP-114N-T Serial Expansion Module

MOXA CP-114N-T Serial Expansion Module

$582.00 CAD
$582.00 CAD
Sale Out of Stock

Features and Benefits

  • 2 x RS-422/485 Serial Ports (DB25 female connector)
  • Supports maximum 921.6 kbps baud rate
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible Driver with Windows, Linux, and UNIX
  • Included Cable: CBL-M25M9x2-50
  • 0 to 55°C Operating Temperature
View full details

Description

The CP-114N is a Mini PCI Express multiport serial board designed for varies applications such as industrial automation system and industrial PC manufacturers. The CP-114N is compatible with any Mini PCI Express slot. The board requires only a 3.3 VDC power supply, which means it can work with host computers ranging from DIN-rail PCs to standard-sized PCs.

The CP-114N is a top choice of industrial automation engineers and system integrators and supports Windows and Linux operating systems. In addition, the four RS-232/422/485 serial ports support a fast 921.6 kbps baudrate. The CP-114N provides full-modem control signals to ensure compatibility with a wide range of serial peripherals. The board also provides 1 kV line-to-line surge protection, ensuring compatibility in a wide range of industrial environments.

Data sheet

Specification

Comm. Controller: 16C550C compatible
Bus: Mini PCI Express
Connector: DB9 male
FIFO: 128 bytes
No. of Ports: 4
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Serial Standards: RS-232/422/485 (software selectable)

Serial Signals:
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features:
Windows Drivers: Windows 7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022
Linux Drivers: Linux kernel 4.x, Linux kernel 5.x

Power Parameters:
Input Current: 557 mA @ 3.3 VDC

Physical Characteristics:
Dimensions: 30 x 50.95 mm (1.18 x 2 in)

Environmental Limits:
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications:
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF

Declaration:
Green Product: RoHS, CRoHS, WEEE

MTBF:
Time: 3,077,789 hrs
Standards: Telcordia (Bellcore) Standard TR/SR

Warranty:
Warranty Period: 5 years
Details: See www.moxa.com/warranty
