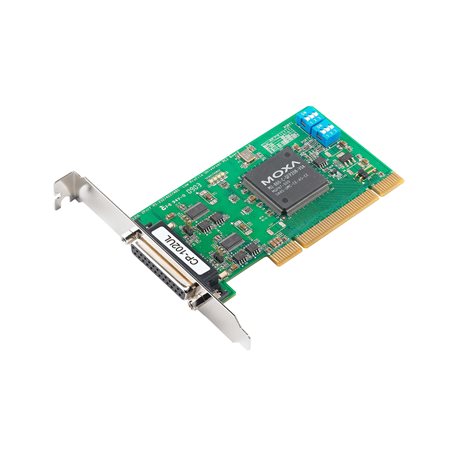

MOXA CP-112UL-I-T Serial Expansion Module

$528.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

2 x RS-232/422/485 Serial Ports (DB25 female connector)
2KV Isolation protection for serial ports
Supports maximum 921.6 kbps baud rate
128-byte FIFO and on-chip H/W, S/W flow control
Compatible Driver with Windows, Linux, and UNIX
-40 to 85°C Operating Temperature

View full details

Description

Moxa’s CP-112UL Series of multiport serial boards are designed to be used by industrial automation system integrators for long-distance, multipoint, PC-based data acquisition applications. On-chip Automatic Data Direction Control for precision RS-485 communication requires precise timing control for enabling and disabling the line driver. Moxa’s Turbo Serial Engine™ chip that powers the CP-112UL boards comes with on-chip ADDC®, which makes RS-485 as easy to use as RS-232. The boards come with 2 RS-422/485 serial ports, both of which can achieve data rates up to 921.6 kbps. In RS-485 mode, the serial port can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, 2 kV electrical isolation protection is available to prevent equipment damage.

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 2
Bus Interface: 32-bit Universal PCI
Serial Standards: RS-232, RS-422, RS-485
Connector: DB25 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: -
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes

Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded, CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Multiport Serial Boards: Power Requirements
Input Current: 290 mA @ 5 VDC

Multiport Serial Boards: General
MTBF: 219,971 hrs

Multiport Serial Boards: Physical Characteristics
Dimensions: 64.4 x 120 mm (2.53 x 4.72 in)

Standards and Certifications
EMC, EMS, RoHS, CRoHS, WEEE

Environmental Characteristics
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operating Humidity: 5 to 95% (non-condensing)
