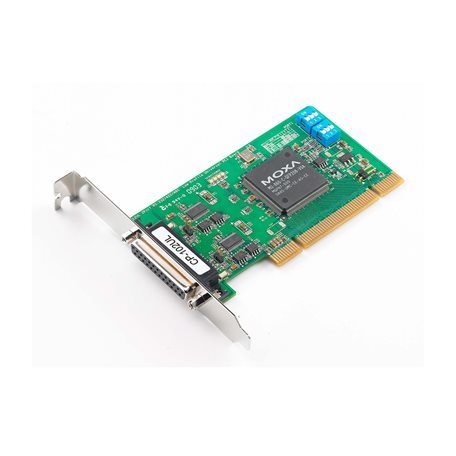

MOXA CP-112UL-I-DB9M UPCI SERIAL BOARD

MOXA CP-112UL-DB9M Introduction
Moxa’s CP-112UL/UL-I Series of multiport serial boards are designed to be used by industrial automation system integrators for long-distance, multipoint, PC-based data acquisition applications. On-chip Automatic Data Direction Control for precision RS-485 communication requires precise timing control for enabling and disabling the line driver. Moxa’s Turbo Serial Engine™ chip that powers the CP-112UL/UL-I boards comes with on-chip ADDC®, which makes RS-485 as easy to use as RS-232. The boards come with 2 RS-422/485 serial ports, both of which can achieve data rates up to 921.6 kbps. In RS-485 mode, the serial port can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For longdistance RS-485 communication, 2 kV electrical isolation protection is available to prevent equipment damage.

Moxa continues to support a wide variety of operating systems, and the CP-112UL/UL-I boards are no exception. Reliable Windows, Linux, and UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

You can also find the CP-112UL-I-DB9M model in the CP-112UL Series.
