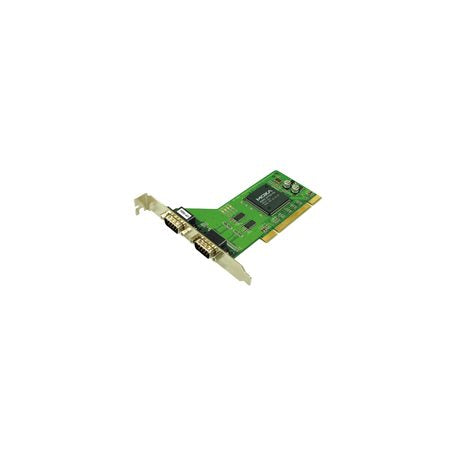

MOXA CP-102U UPCI SERIAL BOARD

MOXA CP-102U UPCI SERIAL BOARD
$151.00 CAD
$151.00 CAD
Special Offer Out of Stock

Features and Benefits

  • 2 x RS-232 Serial Ports
  • Excellent data throughput at over 800 kbps
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • MD1 low-profile form factor (CP-102UL) fits compact PCs
View full details

Description

Data sheet

Specification

Multiport Serial Boards: Serial Interface
Comm. Controller: MU860 (16C550C compatible)
Number of Ports: 2
Bus Interface: 32-bit Universal PCI
Serial Standards: RS-232
Connector: DB25 female
Baudrate: 50 bps to 921.6 kbps
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Data Bits: 5, 6, 7, 8
FIFO: 128 bytes
Multiport Serial Boards: Serial Software Features
Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Multiport Serial Boards: Power Requirements
Power Requirement: 93 mA @ 5 VDC
Multiport Serial Boards: General
MTBF: 574,050 hrs
Multiport Serial Boards: Physical Characteristics
Dimensions: 80 x 120 mm (3.15 x 4.72 in)
Standards and Certifications: EMC, EMI, EMS, KC, RoHS, CRoHS, WEEE
Storage Temperature: -40 to 85°C (-4 to 185°F)
Operating Humidity: 5 to 95% (non-condensing)
