Moxa

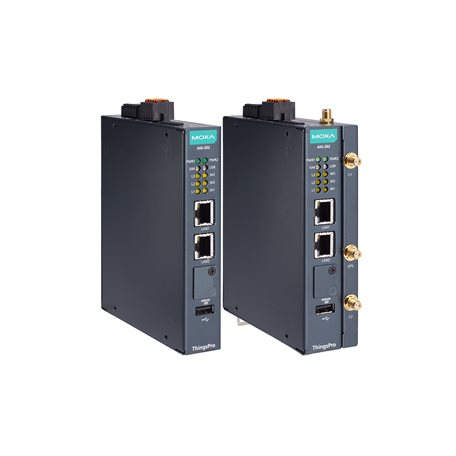

MOXA AIG-302-T-EU-AZU-LX Advanced IIoT Gateway

$1,696.00 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

Supports generic MQTT client to facilitate MQTT connections via built-in device SDKs tailored for Azure cloud integration
Supports Modbus RTU/ASCII/TCP client
Supports Modbus TCP server
Supports Azure IoT Edge
Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
Provides robust OTA function to prevent system failure during software upgrades
Equipped with Secure Boot to prevent malicious software-injection attacks
-40 to 70°C operating temperature range
LTE Cat. 4 US, EU, and APAC models available

View full details

Description

Data sheet

Specification

CPU: ARM Cortex-A7 dual-core 1 GHz
Memory: 2 GB DDR3L RAM, 32 GB eMMC
OS: Moxa Industrial Linux (Debian 11, kernel 5.10.x)
No. of Tags: 3000
Serial Ports: 2 x RS-232/422/485 (DB9 male)
Ethernet: 2 x 10/100/1000 Mbps (RJ45), 1.5 kV isolation
CAN Port: 1 x CAN 2.0 A/B (DB9), 2 kV isolation
Digital I/O: 4 x DI (wet/dry), 4 x DO (200 mA, 24 VDC)
USB: 1 x USB 2.0 Type-A
Cellular: LTE Cat. 4 (Bands for APAC), Dual SIM (Nano)
Wi-Fi: 2 x RP-SMA antenna connectors
GPS: SMA connector, supports GPS/GLONASS/BeiDou/Galileo/QZSS
Expansion: 1 x mPCIe
Band Options (EU):
LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)
UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz
TPM: TPM v2.0
Power Input: Dual 12–48 VDC, 1 A @ 12 VDC, 12 W consumption
Mounting: DIN-rail (default), Wall mount (optional)
Operating Temp: -40 to 70°C
Certifications: Class I Div 2, ATEX, UL 62368-1, EN 61000, FCC Part 15B Class A, CE
Protocols: Modbus RTU/ASCII/TCP, MQTT, Azure IoT Device, Azure IoT Edge
Security: OpenVPN, SSH, HTTPS/SSL, TLS, Firewall
MQTT: v3.1, v3.1.1 with QoS 0/1/2, TLS 1.0/1.1/1.2
Azure Auth: Symmetric Key, X.509, TPM, DPS
MTBF: 1,403,998 hours (Telcordia SR-332)
Warranty: 5 years
