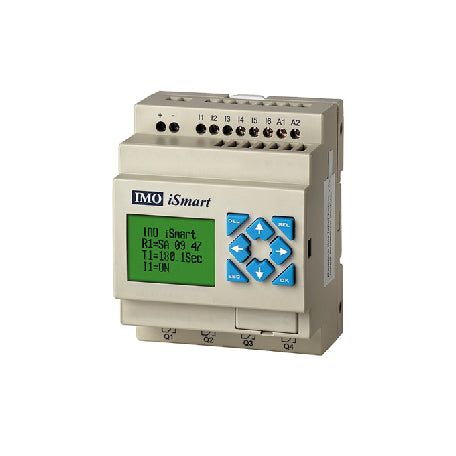

IMO SMT-ED12-R12-V3 INTELLIGENT RELAY

IMO SMT-ED12-R12-V3 INTELLIGENT RELAY

$232.00 CAD
$232.00 CAD
Sale Sold out

Features and Benefits

  • Digital, Analogue & Temperature Inputs
  • Relay, Transistor & Analogue Outputs
  • Powerful Control Logic in Ladder or Functional Block Diagram
  • Available with or without Text HMI Screen
  • Programmable Function Keys
  • PID Control (up to 30 Loops)
  • Math Functions
  • Retentive Data Registers
  • High Speed Inputs & PWM Outputs
  • Link function
  • Multi-Language Selectable
  • Expansion Modules for More I/O
View full details

Description

Commonly found in small and medium applications, the iSmart Programmable Relay from IMO is a highly cost-effective yet flexible controller that offers many of the functions found in a traditional PLCs and is an ideal controller for applications such as packaging and vending machines, conveyors, and automatic door systems.

iSmart is available as an AC or DC base module with a choice of input and output options as well as a selection of digital and relay expansion modules including support for temperature inputs and analogue inputs and outputs. iSmart is supplied with a built in HMI as standard or optional blind front module and is programmed using IMO's configuration software; available at no cost and is complete with a built-in simulation tool.

Data sheet

Specification

General Specifications
Operating Temperature: -10 to +60°C
Storage Temperature: -40 to +70°C
Humidity: 5 - 90% RH, no frost
Vibration: IEC60068-2-6 (0.075mm Amplitude / 1G Acceleration)
Impact Resistance: IEC60068-2-28 (15g peak, 1ms duration)
Installation: IP20, Direct or DIN Rail Mount (TS35 - 35mm)
Noise Resistance:
ESD: ±4kV
Air Discharge: ±8kV
EFT: Power AC: ±2kV, DC: ±1kV
CS: 0.15-80mHz 10V/m
RS: 80-1000mHz 10V/m
EMI: EN55011 Class B
Approvals: CE, UL, cUL
RTC Clock Accuracy: Max. 6 minutes/month, 1 Farad Capacitor for 200hr run-on after power-down
Physical Specifications
Dimensions: 126x90x59.6mm
Weight: 345g
Electrical Specifications
Power Supply: 19.6-28.8VDC (24V), 10.2-13.8VDC (12V)
Power Consumption: 3.1W
Input Threshold: ON: >15VDC, OFF: <5VDC
Input Current: 3.2mA
Input Impedance: 8kΩ
Input Response Time: 3.5ms
Input Max. Voltage: 30VDC
High-Speed Input (Hz): 1000 (I1), 500/500 (I1/I2)
Standard Input (Hz): <40
Max. Digital Output Current: Relay: 8A (Resistive), 2A (Inductive)
Min. Digital Output Current: 0.2mA
Relay Life (No Load): 10 million operations
Analog Specifications
Analog Input Range: 0.00 to 9.99V
Analog Input Resolution: 12 bit nominal (0.01V)
Analog Input Impedance: 22.5kΩ
Programmable Logic Controller (PLC) Specifications
Program Size: 1200 Steps (300 Lines of Ladder), 260 Function Blocks
Additional Features
HMI: Yes
High-Speed Inputs: 2 (up to 1kHz)
